Description

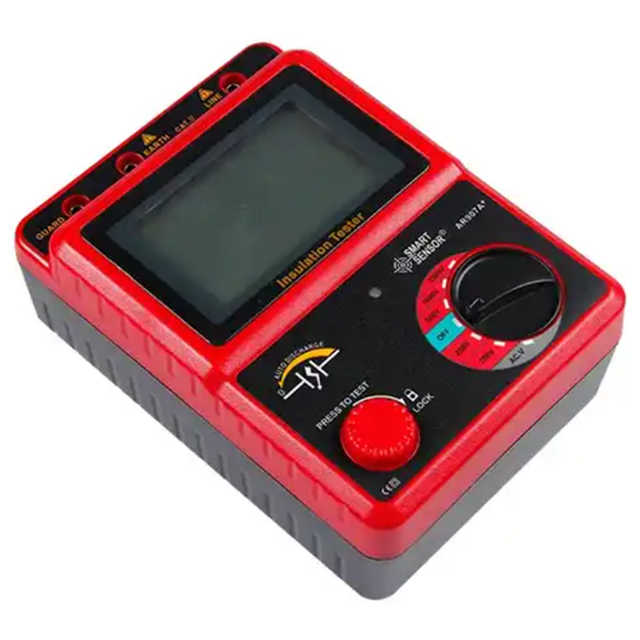

Smart Sensor AR907A+ High Voltage Insulation Tester

Karya Mandiri Techindo has a wide range of Smart Sensor products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

High voltage insulation testers are suitable for non-destructive measurement of insulation resistance in electrical systems, machines, transformers and cables. These testers are useful for preventive maintenance in the generation, transmission and distribution of electrical energy.

Features Smart Sensor AR907A+ High Voltage Insulation Tester

Auto Discharge, Operate more safety
LCD display of measurement result and condition directly
Live Wire warnings and autio displayed
Auto power off in 10 minutes without any operation
show low battery status

Specifications Smart Sensor AR907A+ High Voltage Insulation Tester

Voltage output:	100V / 250V / 500V / 1000V / 2500V
Range: 100V:	– Range: 100V: 0.0 ~ 199.9MΩ – 250V: 0.0 ~ 499.9MΩ – 500V: 0.0 ~ 999.9MΩ – 1000V: 0.0 ~ 19.9GΩ – 2500V: 0.0 ~ 49.9GΩ
Accuracy:	± 5% rdg ± 5dgt – AC / DC voltage test: 30 ~ 600V
Resolution:	1.0V
Overload protection:	AC 1200V / 10 seconds
Voltage:	AC 8320V / 5 seconds
Insulation resistance:	1000MΩ
Maximum short-circuit current:	1.3mA
Working environment:	0 ~ 50 ° C
Temperature:	-20 ~ 70 ° C
Power:	6×1.5V AA batteries (not included)
Weight:	404g
size:	172x120x62mm

Smart Sensor AR907A+ – Datasheet
