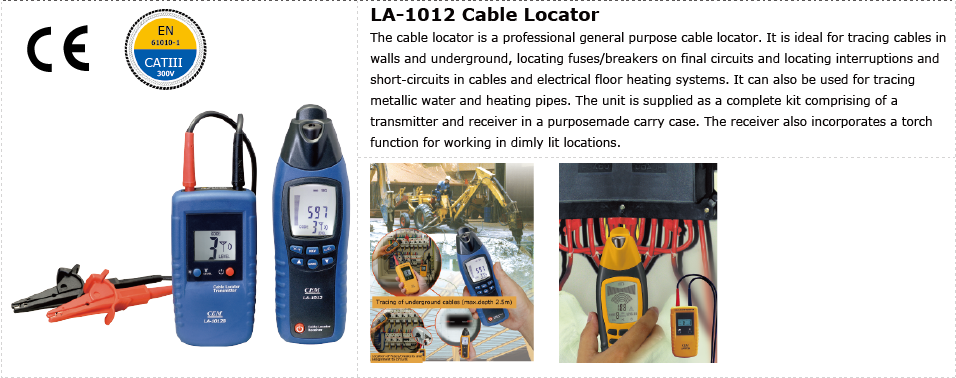

CEM LA-1012 Cable Locator
Karya Mandiri Techindo has a wide range of CEM Instrument products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The cable locator is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purposemade carry case. The receiver also incorporates a torch function for working in dimly lit locations.
For all applications (live or dead cables) without additional instruments; Set includes a transmitter and a receiver; Proven digitally coded sender signal guarantees clear signal identification; Transmitter with LCD-display for transmitting level, transmitting code and external voltage.
Receiver with backlight LCD-display for level of receiving signal, code of receiving signal and live voltage indication
Automatic or manual adjustment of receiving signal sensitivity; Acoustical receiving signal switchable; Auto Power Off; Additional torch lamp function for working in dark environment; Additional transmitters are available for extension of to distinguish between several signals.
Features CEM LA-1012 Cable Locator
- For all applications (live or dead cables) without additional instruments
- Set includes a transmitter and a receiver
- Proven digitally coded sender signal guarantees clear signal identification
- Transmitter with LCD-display for transmitting level, transmitting code and external voltage
- Receiver with backlight LCD-display for level of receiving signal, code of receiving signal and live voltage indication
- Automatic or manual adjustment of receiving signal sensitivity
- Acoustical receiving signal switchable
- Auto Power Off
- Additional torch lamp function for working in dark environment
- Additional transmitters are available for extension of to distinguish between several signals
- Confirms to EN 61010-1, CAT III 300V
Specifications CEM LA-1012 Cable Locator
FOR TRANSMITTER | |||
Voltage Measuring Ranges | 12V, 50V, 120V, 230V, 400V | ||
Freqnecy Range | 0 … 60Hz | ||
Output Signal | 125kHz | ||
Voltae | Upto 400V AC/DC | ||
FOR RECEIVED | |||
Tracing Depth cable location | 0 – 2.5m wall / underground cables | ||
Main Voltage Detection | 0 – 0.4m |
Size(HxWxD) : 128mm x 68mm x 30mm
Weight : 185g
Accessories : 2 x 9V batteries, Crocodile clips, Test leads and gift box with carrying case.
CEM LA 1012 – Datasheet
