Product Description

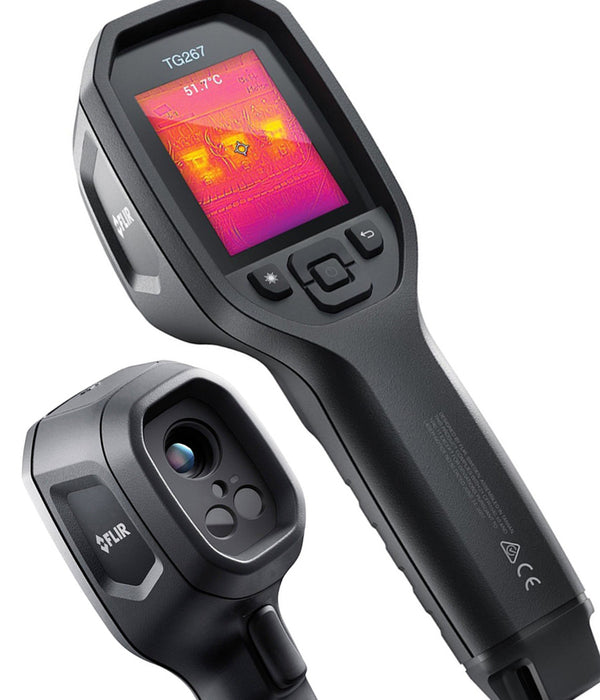

Flir TG267 Thermal Imaging Camera
Karya Mandiri Techindo has a wide range of Flir products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The FLIR TG267 takes you beyond the limitations of single-spot IR thermometers to both see and evaluate the hot and cold spots that can indicate serious issues. Ideal for commercial electrical, facility maintenance, and HVAC applications, this advanced thermal camera with a brilliant 2.4 inch screen reduces diagnostic time while simplifying repair and maintenance reporting.
Patented FLIR MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene details on full thermal images, providing added context to help you accurately target potential faults and troubleshoot repairs. Record images to monitor maintenance history and reassure your customer that problems have been resolved.
Designed for Affordable Diagnostic Thermal Imaging
- IDENTIFY PROBLEMS QUICKLY
Measure a wide range of temperatures from -25°C to 380°C (-13°F to 716°F) with a true 160 × 120 IR pixel imager (19,200 pixels) - PRODUCE CRISP THERMAL IMAGES
Display and record MSX®-enhanced thermal images or visual images with temperature readings. - WORK WITH CONFIDENCE IN RUGGED ENVIRONMENTS
Work safely and worry-free knowing that the IP54 enclosure can withstand a 2-meter drop and protect against dust and water.
Features Flir TG267 Thermal Imaging Camera
- IR Resolution 160 × 120 pixels (Double resolution from TG165-X/TG165/TG167), provides an extremely sharp image
- Contact-measurement readings with the included Type-K thermocouple up to 260°C
- Identify the exact area that you’re measuring using the bullseye laser pointer
- Diagnose problems faster with FLIR-patented MSX image enhancement
- Display and capture thermal or visual images with temperature readings
- Compare before-and-after stored images with FLIR Tools® software to demonstrate the problem and your fix
Specifications Flir TG267 Thermal Imaging Camera
| IR Resolution | 160 × 120 pixels | ||
| Thermal Sensitivity/NETD | <70 mK | ||
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F) | ||
| Field of view (FOV) | 57° × 44° | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
||
| Display | 320 × 240 pixel, 2.4 in color LCD | ||
| Storage Media | eMMC 4 GB | ||
| Imaging & Optical | |||
| Built-in Digital Camera | Yes | ||
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava | ||
| Detector Pitch | 12 µm | ||
| Detector Type | Focal plane array (FPA), uncooled microbolometer | ||
| Digital image enhancement | Yes | ||
| Field of view (FOV) | 57° × 44° | ||
| Focus | Focus free | ||
| Gallery | Yes | ||
| Image Frequency | 8.7 Hz | ||
| Image Modes | MSX® (Multi Spectral Dynamic Imaging) Visual with temperature reading |
||
| IR Resolution | 160 × 120 pixels | ||
| Laser | Class 1 laser indicates the temperature measurement area; button-activated | ||
| Minimum Focus Distance | 0.3 m (0.98 ft) | ||
| Minimum Measurement Distance | 0.26 m (0.85 ft) | ||
| Spectral Range | 7.5 – 14 µmThermal Sensitivity/NETD: <70 mK | ||
| Measurement & Analysis | |||
| Accuracy | ±1.5°C (2.7°F) for temperatures 50°C to 100°C (122°F to 212°F); up to ±3°C (±5.4°F) for -25°C to 50°C (-13°F to 122°F) and 100°C to 380°C (212°F to 716°F) | ||
| Camera size (L x W x H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) | ||
| Camera weight incl battery | 0.394 kg (13.9 oz) | ||
| Center spot | Yes | ||
| Emissivity Correction | Yes: 4 preset levels with custom adjustment of 0.1–0.99 | ||
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish | ||
| Object Temperature Range | -25°C to 380°C (-13°F to 716°F) | ||
| Set-up Commands | Local adaptation of units, language, date, and time formats Screen brightness (high, medium, low) Gallery, deletion of images |
||
| Spot Meter | Center spot on/off | ||
| User Interface | |||
| Display | 320 × 240 pixel, 2.4 in color LCD | ||
| Power | |||
| Battery charge life | 30 days minimum | ||
| Battery operating time | 5 hours continuous scanning, 4.5 hours with laser on | ||
| Battery Type | Rechargeable Li ion battery | ||
| Battery voltage | 3.7 V | ||
| Charging system | Battery is charged inside the camera | ||
| Charging Temperature | 0°C to 45°C (32°F to 113°F) | ||
| Charging Time | 4 hours to 90%, 6 hours to 100% | ||
| Power Management | Adjustable: off, 5 min., 15 min., 30 min. | ||
| Environmental & Certifications | |||
| Certifications | CE, CB, RCM, IEC60825-1, FDA, UL, CEC, NRCan | ||
| Drop test | Designed for 2 m (6.6 ft) | ||
| EMC | EN 61000-6-3 EN 61000-6-2 FCC 47 CFR Part 15 Class B |
||
| Encapsulation | IP 54 (IEC60529) | ||
| Humidity (Operating and Storage) | 0-90% RH (0-37°C (32-98.6°F)), 0-65% RH (37-45°C (98.6-113°F)), 0-45% RH (45-55°C (113-131°F)) | ||
| Operating Temperature Range | -10°C to 45°C (14°F to 113°F) | ||
| Radio Spectrum | ETSI EN 300 328 FCC Part 15.249 RSS-247 Issue 2 EN 301 489-1:2011 EN 301 489-17:2009 |
||
| Safety | CE/CB/EN61010/UL | ||
| Shock | 25 g (IEC 60068-2-27) | ||
| Storage Temperature Range | -30°C to 55°C (-22°F to 131°F) | ||
| Tripod Mounting | 1/4 in.-20 on handle bottom | ||
| Vibration | 2 g (IEC 60068-2-6) | ||
| General | |||
| Includes | TG267, printed documentation, wrist strap lanyard, USB A to USB C cable, carry pouch | ||
Each Unit Includes With:
- FLIR TG267
- Wrist strap lanyard
- USB A to USB C cable
- Carry Pouch
- K Type Thermocouple
- Printed documentation
Flir TG267 – Datasheet
