Product Description

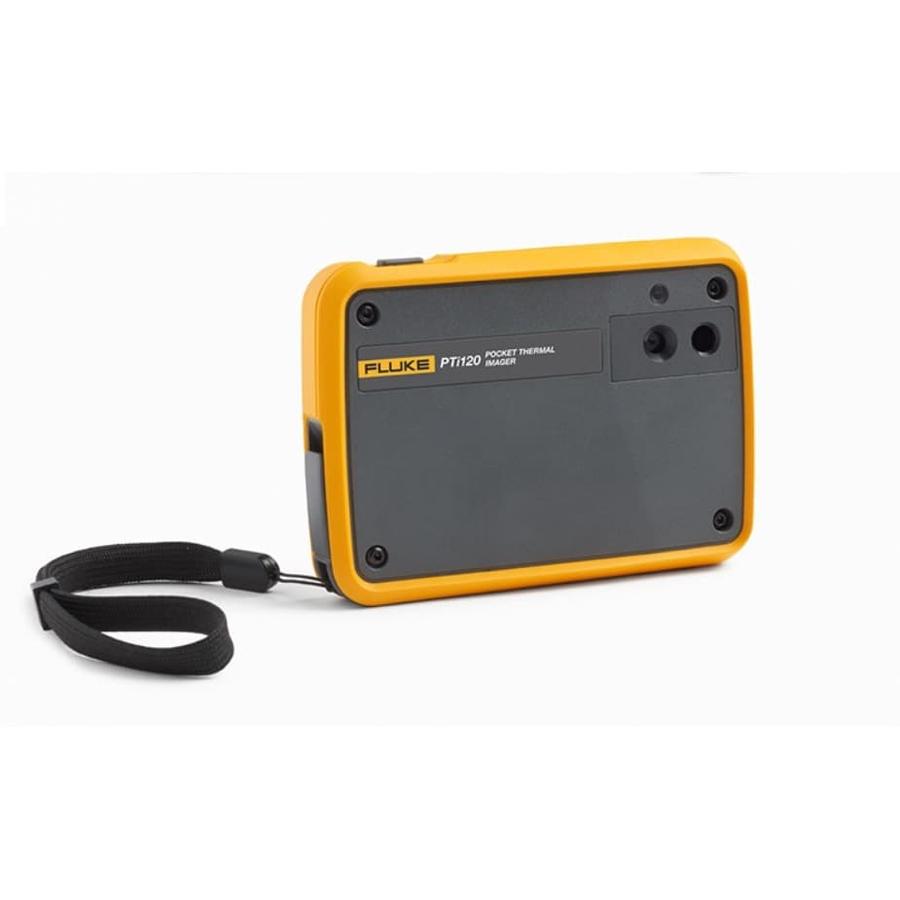

Fluke PTi120 Pocket Thermal Camera
- Automatically organize and file thermal images with Fluke Connect Asset Tagging
- Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
- 3.5” LCD touchscreen display for easy troubleshooting
- -20 °C to +150 °C temperature measurement range
- Six color palettes
- Can withstand drop up to 1 meter
- IP 54 enclosure rating
- Subject to Export Control
Portable thermal camera for industrial inspection
In the right place. At the right time. With the right tool.
The bigger the problem, the faster you need to solve it. The Fluke Pocket Thermal Camera puts the power to minimize downtime in everyone’s hands. The first line of defense for easy troubleshooting. Stop fighting fires on the job, start preventing them.
On the job, because it does the job.
A camera small enough to carry every day without worry. Always at hand. Stands up to dirt and water. Can survive a 1-meter drop. Now enhanced infrared inspections are right in your pocket for quick temperature scans of electrical equipment, machinery and other assets.
Automatically save your thermal images to the right folders.
With Fluke Connect Asset Tagging you eliminate the tedium of sorting and organizing your infrared images. By simply scanning your asset’s QR code or barcode, your infrared image and all of your date and time stamped information will be stored to your predefined folders. Send via WiFi or automatically upload once you connect to the network or computer via USB. It’s about time. Now you can more efficiently save, find and report on issues before they become problems.
Get your preferred level of infrared every time.
The 3.5” LCD touchscreen offers IR-Fusion™ to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting.
Spesifikasi Fluke PTi120 Pocket Thermal Camera :
| Key Features | |
|---|---|
| IFOV (spatial resolution) | 7.6 mRad |
| Infrared resolution | 120 x 90 (10,800 pixels) |
| Field of view | 50° H x 38° V |
| Distance to spot | 130:1 |
| Temperature measurement range (not calibrated below -10 °C) | -20 °C to 150 °C |
| Focus system | Fixed focus, minimum focus distance 22.8 cm |
| USB | Mini USB used to transfer image to PC |
| Wifi | Yes |
| Image quality | |
|---|---|
| IR-Fusion technology | Yes, adds the context of the visible details to your infrared image |
| AutoBlend mode | Continuous 0% to 100% |
| Touchscreen display | 3.5’’ (landscape), 320 x 240 LCD |
| Rugged, ergonomic design | Yes |
| Thermal sensitivity (NETD) | 60 mK |
| Frame rate | 9 Hz |
Fluke PTi120 – Datasheet
Produk asli Kami distributor langsung Fluke . Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilaya indonesia.
Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.
