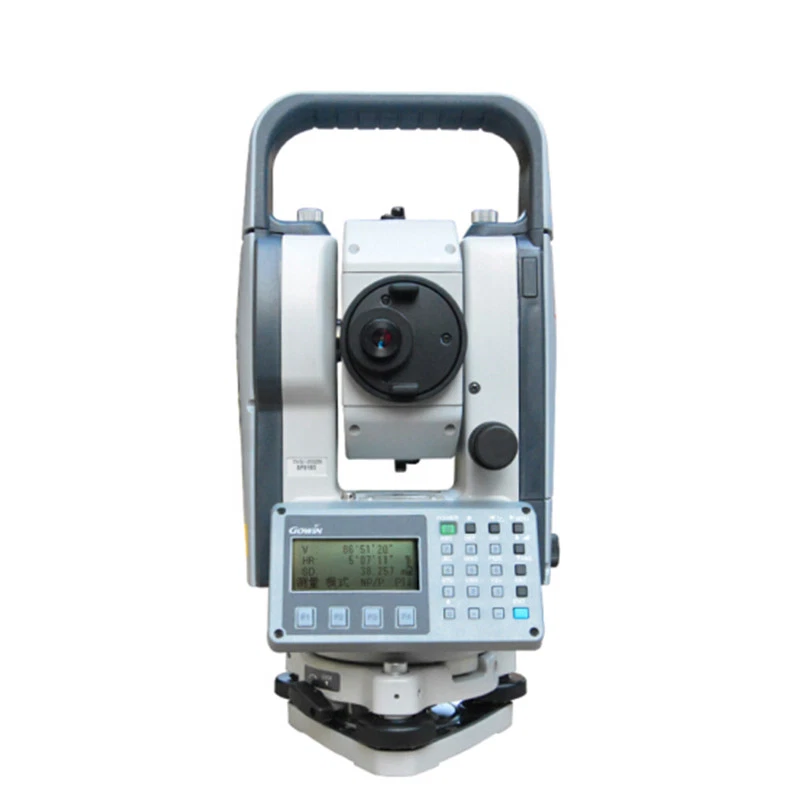

Gowin TKS202N Total Station
Karya Mandiri Techindo has a wide range of Gowin products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Gowin released a new product in the Gowin TKS202N Total Station series, equipped with a laser capability of up to 400 meters making this type worth considering. The Gowin TKS202n total station has an angle accuracy of two seconds, with a two-face display making it easier for surveyors to take measurements.
Features Gowin TKS202N Total Station
- 2″ Angular Accuracy
- Reflectorless 500M
- Laser Plummet
- Economical, value priced measuring solution
- Rugged, durable, water resistant design, IP54 rated
- Expanded, full numeric keypad
- On board programs & 24,000 point data storage
- Ideal as a construction stakeout total station
- Perfect as a forensic evidence measuring and recording instrument
- Superior, when combined with a data collector and field software
Specifications Gowin TKS202N Total Station
| Telescope | |||
| Objective Lens Diameter | 45mm (EDM:50mm) | ||
| Magnification | 30x | ||
| Image | Erect | ||
| Field of View | 1.30 | ||
| Resolving Power | 3.0″ | ||
| Min. Focus Distance | 1.3 meters | ||
| Angle Measurement | |||
| Accuracy | 2″ | ||
| Method | Absolute Reading | ||
| Minimum reading | 1″ / 5″ | ||
| Distance Measurements | |||
Distance Range | 1 Prism: 2.000m | ||
| 3 Prism: 2.700m | |||
| Accuracy | ±(2mm + 2ppm x D**)m.s.e | ||
Measuring Time | Fine Measurement Mode: 1.2 Sec. (Initial 4 Sec.) | ||
| Coarse Measurement Mode: 0.7 se | |||
| Tracking Measurement Mode: 0.4 sec | |||
| Atmospheric Correction Range | Yes | ||
| Prism Constant Correction Range | Yes | ||
| Software and Memory | |||
On-Board Software Functions | Data Collection | ||
| Resection | |||
| Road | |||
| Stakeout | |||
| Area Calculation | |||
| Height Measurement | |||
| etc | |||
| Display | |||
| Display Unit | Graphics LCD, 2 Sides | ||
| Keyboard | 24 Alpha-Numeric Key | ||
| Tilt Correction (Automatic Index) | |||
| Tilt Sensor | Yes | ||
| Correction Methode | Liquid Type | ||
| Compensating Range | ±3″ | ||
| Level Sensitivity | |||
| Plate Level | 30″ / 2mm | ||
| Circular Level | 10′ / 2mm | ||
| Optical Plummet Telescope | |||
| Image | Erect | ||
| Magnification | 3x | ||
| Focusing Range | 0.5 to infinity | ||
| Field of View | 3° and above | ||
| Others | |||
| Protection against water and dust*** | IP54 (with BT-L1 Battery) | ||
| Operating Temperature | -20°C~ +50°C (-4°F~ +122°F) | ||
| Dimension | 336(H) x 184(W) x 172 (L) mm | ||
| Weight (with battery) | 4.8kg | ||
| On-Board Battery | BT-L1 (Lithium-ion) | ||
| Battery Charger | BC-L1 | ||
Maximum Operating Time | Including distance measurement: 14 hours | ||
| Angle measurement only: 60 hours | |||
| Output Voltage: DC 10V | |||
