Icom IC-F3033T Handy Talky VHF | Series IC-F3033S-IC-F4033T-IC-F4033S
Karya Mandiri Techindo has a wide range of Icom products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

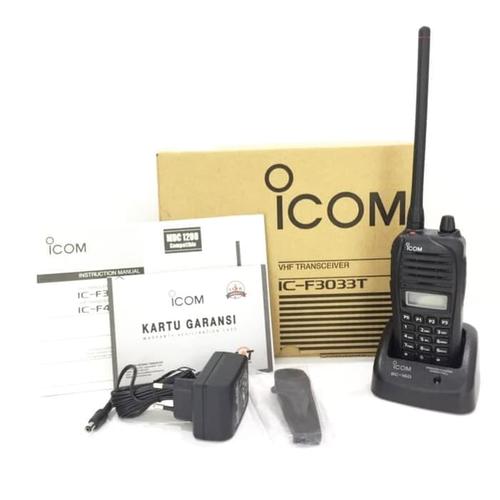

The Icom IC-F3033T VHF Handy Talky is a two-way communication device designed to withstand demanding work environments. With IP67 water and dust resistance, this radio can be used in various industries, such as construction, security, emergency services, and other sectors that require reliable communication in extreme conditions. Equipped with advanced signaling technology, priority scanning features, and compatibility with the MDC 1200 system, the Icom IC-F3033T VHF provides safer, more efficient, and more flexible communication.
Features Icom IC-F3033T Handy Talky VHF
IP67 Waterproof and Dust-Tight Protection
The IC-F3033T/S series provides outstanding protection against water and dust equivalent to IP67. The IC-F3033T/S series can withstand 1m depth of water for 30 minutes and its dust-tight construction that prevents the ingress of powder dust, sand, mud and other objects.
Longer Operating Time
TThe supplied waterproof Li-Ion battery pack, BP-232WP (7.4V, 2350mAh (typ.)), provides 17.5 hours* of operating time. The battery has been designed for reliability in extremely cold environments.
*Tx:Rx:Standby=5:5:90. Power save function ON.
Selective Calling, Quiet Stand-by and More
The IC-F3033T/S series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication or selective calling. When a matched 2-Tone/5-Tone is received, the following actions are programmable for each code.
- Answer back calls
- Beep sounds
- Bell icon
- Radio stun/kill/revive
- Auto TX
- Scan
MDC 1200 Compatible
The following selective calling and ANI features are programmable with the built-in MDC signaling.
- PTT ID
- Emergency (No ACK transmission)
- Radio check (RX only)
- Stun/Revive (RX only)
Emergency Function
A red button on the top panel can be used as an emergency button and can be used to transmit an emergency signal. Man down (optional UT-124R required) and lone worker functions can also be used for the emergency function trigger.
Specification Icom IC-F3033T Handy Talky VHF
GENERAL
| FITUR | IC-F3033T |
|---|---|
| Frekuensi (Bervariasi menurut versi) | 136–174MHz |
| Jumlah Saluran | 128 saluran / 8 zona |
| Lebar Kanal (Bervariasi menurut versi) | 25 / 12.5 kHz |
| Jenis Emisi | 16K0F3E / 11K0F3E |
| Konsumsi Daya (Tx High) | 1.5A (pada 5W) |
| Konsumsi Daya (Rx Standby) | 75mA |
| Konsumsi Daya (Max Audio) | 250mA |
| Dimensi (Tanpa proyeksi, P×L×T) | 53×120×37 mm (Dengan BP-232WP) |
| Berat (Perkiraan) | 310g (Dengan BP-232WP) |
TRANSMITTER
| FITUR | IC-F3033T |
|---|---|
| Daya Output RF (pada 7.2V DC) | 5W, 2W, 1W (Hi, L2, L1) |
| Emisi Spurius | 80dB (typ.) |
| Stabilitas Frekuensi | ±2.5ppm |
| Distorsi Harmonik Audio | 3% (typ.) – AF 1kHz, 40% deviasi |
| FM Hum dan Noise (W/N) | 46/40dB (typ.) |
RECEIVER
| FITUR | IC-F3033T |
|---|---|
| Sensitivitas pada 12dB SINAD | 0.25μV (typ.) |
| Selektivitas Kanal yang Berdekatan (W/N) | 75/65dB (typ.) |
| Penolakan Respons Spurius | 70dB (min.) |
| Penolakan Intermodulasi | 75dB (typ.) |
| Daya Output AF (Pada 5% distorsi dengan beban 8Ω) | 500mW (typ.) |
Video
Icom IC-F3033T – Datasheet
