Description
Icom IC-M605 Radio Marine VHF Radio Rig | frekuensi VHF 156 -163 MHz, output 25 W, waterproof, IPX7, konektivitas NMEA2000
Karya Mandiri Techindo has a wide range of Icom products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

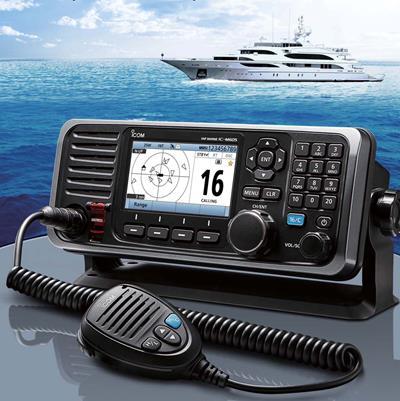

VHF MARINE TRANSCEIVER
This VHF/AIS Radio Matches Your Boat in Performance, System Flexibility and User-Friendliness
The Icom IC-M605 is a marine radio perfect for your boat. It’s easy to use and boasts many advanced features to make your voyages safer and more comfortable. With this marine radio, you can communicate with other vessels, get weather information, and track the position of nearby vessels.
Features Icom IC-M605 Radio Marine VHF :
Tiga Command Head™/Commandmic™
All IC-M605 functions (including DSC emergency calls and emergency operations) can be remotely controlled by up to three devices, namely: RC-M600 COMMAND HEAD™ and HM-195 series COMMANDMIC™.
4.3 Inch Color LCD Screen
A first in its class, this color LCD display offers a nearly 180 ° viewing angle . The 4.3-inch display displays high-resolution characters and function icons. Night mode provides optimal brightness for comfortable use in dark conditions.
Receiver AIS*
*With an AIS receiver connected, this marine radio can display live AIS vessel traffic information on the screen. You can directly place individual DSC calls to selected AIS targets via the AIS display.
*Optional UX-251 AIS receiver unit required, depending on version.
Easy to Use
The combination of directional buttons and buttons makes it easy to use. Frequently used functions are located on soft keys (at the bottom of the screen) for quick, one-touch access. A large ten-digit numeric keypad is used to enter channel numbers, MMSI numbers, and ID names.
Best Class Acceptance Quality
This Icom radio rig can clearly receive weak signals even when located near strong signals. The receiver quality is comparable to commercial equipment (selectivity and intermodulation distortion over 80 dB).
Active Noise Cancelling
The noise reduction feature on this ship’s radio eliminates noise around the location when sending and receiving sound.
Last Call Voice Recording
The last call recording function automatically saves up to two minutes of incoming calls. This way, you won’t miss any important messages.
Private Conversation
With the optional UT-112 voice scrambler, this marine VHF radio provides 32-tone encryption for secure conversations. This feature is especially useful if you need to share confidential information with other vessels.
Clear Sound Quality
This marine radio’s built-in speaker improves call quality. The waterproof, paper-cone speaker delivers superior sound quality with a wide frequency range and flat frequency response.
30W Two-Way Hailer & Automatic Horn
When connected to the optional SP-37 speaker, you can communicate with crew on deck or ashore via the radio microphone and hear their responses through the speaker. It also features an RX hailer function and four automatic horn patterns.
NMEA 2000™, NMEA 0183/-HS
Through NMEA 2000™ connectivity, this original Icom marine radio can exchange GNSS data, AIS reports, DSC call information, radio frequencies, and PGN lists with other devices on the network. NMEA 0183/-HS GNSS position data can also be converted to NMEA 2000™ data for use by other equipment.
Other Features of the Icom IC-M605
- It has an IPX8 rating so it is waterproof to a depth of 1 meter for 60 minutes without damage.
- This marine radio is equipped with dual and triple channel monitoring functions to monitor up to three channels simultaneously.
- Weather channel with warning feature in case of severe weather conditions.
- DSC multitasking function to perform several tasks at once, such as: sending an emergency call while listening to another channel.
- AquaQuake™ technology prevents audio degradation caused by speaker exposure to water. This feature is especially useful in adverse weather conditions or when the radio is exposed to water.
- Equipped with quick access buttons for channel 16 and call channels to access these channels quickly and easily.
- The HM-205RB microphone speaker can be connected to the rear panel of the IC-M605 so you can use it as an external speaker to improve sound quality.
- Compatible with Icom’s MarineCommander™ maritime navigation system.
Specification Icom IC-M605 Radio Marine VHF :
General
| Frequency range | TX | 156.025–161.600 MHz |
|---|---|---|
| RX | 156.050–163.275 MHz | |
| CH70 | 156.525 MHz | |
| AIS1, 2 | 161.975, 162.025 MHz | |
| Usable channels | USA, CAN, INT, WX channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) | |
| Power supply requirement | 13.8 V DC (11.7–15.9 V DC) | |
| Current drain | TX 25 W output | 6.0 A |
| RX Max. audio | 8.0 A | |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F | |
| Antenna impedance | 50 Ω (SO-239) | |
| Weight (approximately) | 1510 g; 3.3 lb | |
Transmitter
| Output power (at 13.8 V DC) | 25 W, 1 W |
|---|---|
| Max. frequency deviation | ±5 kHz |
| Frequency tolerance | ±5 ppm |
| Spurious emissions | Less than –70 dBc (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
Receiver
| Intermediate frequency | 30.15 MHz, 450 kHz (1st/2nd) | |
|---|---|---|
| CH70 | 21.70 MHz, 450 kHz (1st/2nd) | |
| Sensitivity (at 12 dB SINAD) | 0.22 μV typical | |
| CH70 (1% BER) | 0.71 μV emf typical | |
| Adjacent channel selectivity | More than 80 dB | |
| CH70 (1% BER) | More than 80 dBμ emf | |
| Spurious response | More than 77 dB | |
| CH70 (1% BER) | More than 73 dBμ emf | |
| Intermodulation | More than 80 dB | |
| CH70 (1% BER) | More than 73 dBμ emf | |
| Hum and noise | More than 40 dB | |
| Audio output power (at 10% distortion) | More than 15 W with a 4Ω external speaker | |
Measurements made in accordance with TIA/EIA 603 and IEC62238. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications
| Standard | MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I–C |
| Solar Radiation | 505.5 | I |
| Rain | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Water | IPX8 (1 m depth water for 60 minutes) |
Video
Icom IC-M605 – Datasheet
