Product Description

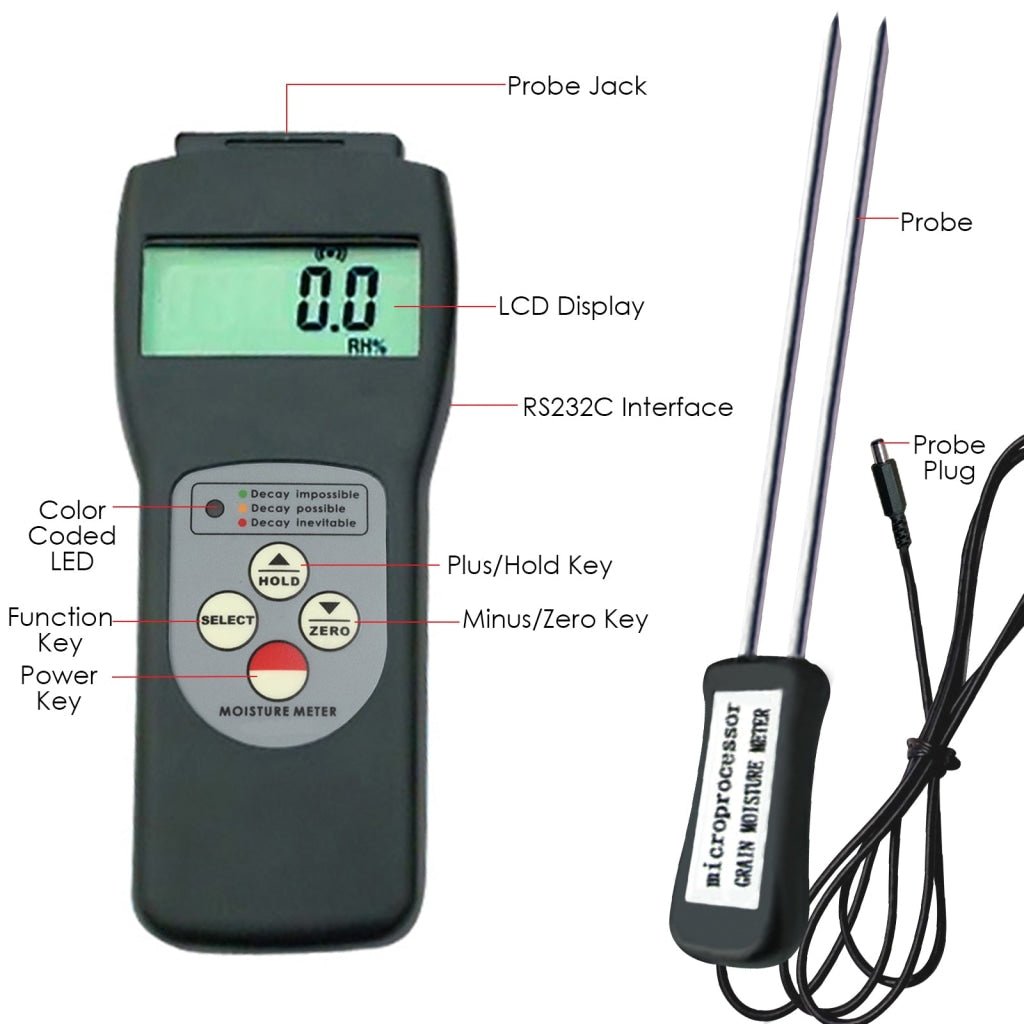

Landtek MC-7825G Grain Moisture Meter
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Landtek MC-7825G Grain Moisture Meter
- Able to measure grains up to 22 species
- The cup type measurement causes small error
- Wide measuring range
- With storage and statistical functions. Can store 240 groups of measurements
- Two presentations, digital display and color coded LED indication
- Use the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement. It can obtain automatically the temperature corrected moisture value
- Use USB/RS-232 data output to connect with PC
- Provide Bluetooth data output choice
Specifications Landtek MC-7825G Grain Moisture Meter
|
Model
|
MC-7825G | ||
|
Grains
|
36 Kinds
|
||
|
Display
|
LCD
|
||
|
LED Indicator
|
Green LED Represents a Safe,Air-dry State
|
||
|
Yellow LED Represents a Borderline State
|
|||
|
Red LED Represents a Damp State
|
|||
|
Range
|
7~30%
|
||
|
Resolution
|
0.1
|
||
|
Battery Indicator
|
Low Battery Indicator
|
||
|
Auto Power Off
|
√
|
||
|
Accuracy
|
±(0.5%n+1)
|
||
|
Operating Conditions
|
Temperature
|
0~50ºC
|
|
|
Humidity
|
<90%RH
|
||
|
Power Supply
|
4×1.5V AAA Size(UM-4)Battery
|
||
|
Dimensions
|
Main Unit
|
165x62x26mm
|
|
|
Long Rod Sensor
|
368x44x25mm
|
||
|
Length of Rod
|
250mm
|
||
|
Diameter of Rod
|
8mm
|
||
|
Distance Between 2 Rods
|
17mm
|
||
|
Short Pin Sensor
|
157x44x44mm
|
||
|
Length of Pin
|
10mm
|
||
|
Diameter of Pin
|
0.7mm
|
||
|
Distance Between 2 Pins
|
3.5mm
|
||
|
Weight(Not Including Batteries)
|
320g
|
||
|
Standard
Accessories
|
Main Unit
|
√
|
|
|
Long Rod Sensor
|
√
|
||
|
Carrying Case
|
B04
|
||
|
Manual
|
√
|
||
|
Optional Accessories
|
USB Data Cable with Software
|
||
|
Bluetooth Data Adapter with Software
|
|||
|
Short Pin Sensor
|
|||
Grain, Code & Range for MC-7825G
|
Code
|
Grain
|
Range
|
|
Cd01
|
Wheet / Rye ( Whole )
|
7~31
|
|
Cd02
|
Wheet / Rye ( Ground )
|
7~29
|
|
Cd03
|
Paddy ( Whole )
|
7~29
|
|
Cd04
|
Paddy ( Ground )
|
7~26
|
|
Cd05
|
Rice ( Milled )
|
7~29
|
|
Cd06
|
Semolia
|
7~25
|
|
Cd07
|
Maize / Corn ( Whole )
|
7~27
|
|
Cd08
|
Maize / Corn ( Ground )
|
7~26
|
|
Cd09
|
Soya Beans ( Whole )
|
6~28
|
|
Cd10
|
Soya Beans ( Ground )
|
5~22
|
|
Cd11
|
Barley Oats ( Whole )
|
7~34
|
|
Cd12
|
Barley Oats ( Ground )
|
7~29
|
|
Cd13
|
Coffe ( Whole )
|
7~31
|
|
Cd14
|
Coffee ( Ground )
|
7~26
|
|
Cd15
|
Coffee Green ( Ground )
|
7~27
|
|
Cd16
|
Cocoa Beans ( Whole )
|
4~13
|
|
Cd17
|
Linseed ( Whole )
|
6~21
|
|
Cd18
|
Lentils ( Ground / Whole )
|
7~21
|
|
Cd19
|
Oilseed Rape ( Ground )
|
5~26
|
|
Cd20
|
Mustard Seed ( Whole )
|
7~21
|
|
Cd21
|
Sorghum / Milo ( Whole )
|
7~28
|
|
Cd22
|
Sorghum / Milo ( Ground )
|
7~26
|
|
Cd23
|
Sunflower Seed ( Whole )
|
5~25
|
|
Cd24
|
Sugarbeet Seed ( Whole )
|
6~20
|
|
Cd25
|
Flax ( Whole )
|
5~21
|
|
Cd26
|
Peas ( Progreta ) ( Ground )
|
7~27
|
|
Cd27
|
Peas ( Ground )
|
7~30
|
|
Cd28
|
Ground Nuts Hulled ( Whole )
|
5~13
|
|
Cd29
|
Grass Seed / Rye Grass ( Whole )
|
7~28
|
|
Cd30
|
Grass Seed / Cocksfoot ( Whole )
|
6~23
|
|
Cd31
|
Four / Soft Wheat
|
7~29
|
|
Cd32
|
Clover / White Seed ( Whole )
|
6~24
|
|
Cd33
|
Clover / Red lucerne Seed ( Whole )
|
6~22
|
|
Cd34
|
Buckwheat ( Ground )
|
7~29
|
|
Cd35
|
Brassicas / Brussels Sprout ( Whole/Ground )
|
5~15
|
|
Cd36
|
Beans / Tic /Winter ( Ground )
|
7~25
|
Landtek MC-7825G – Datasheet
