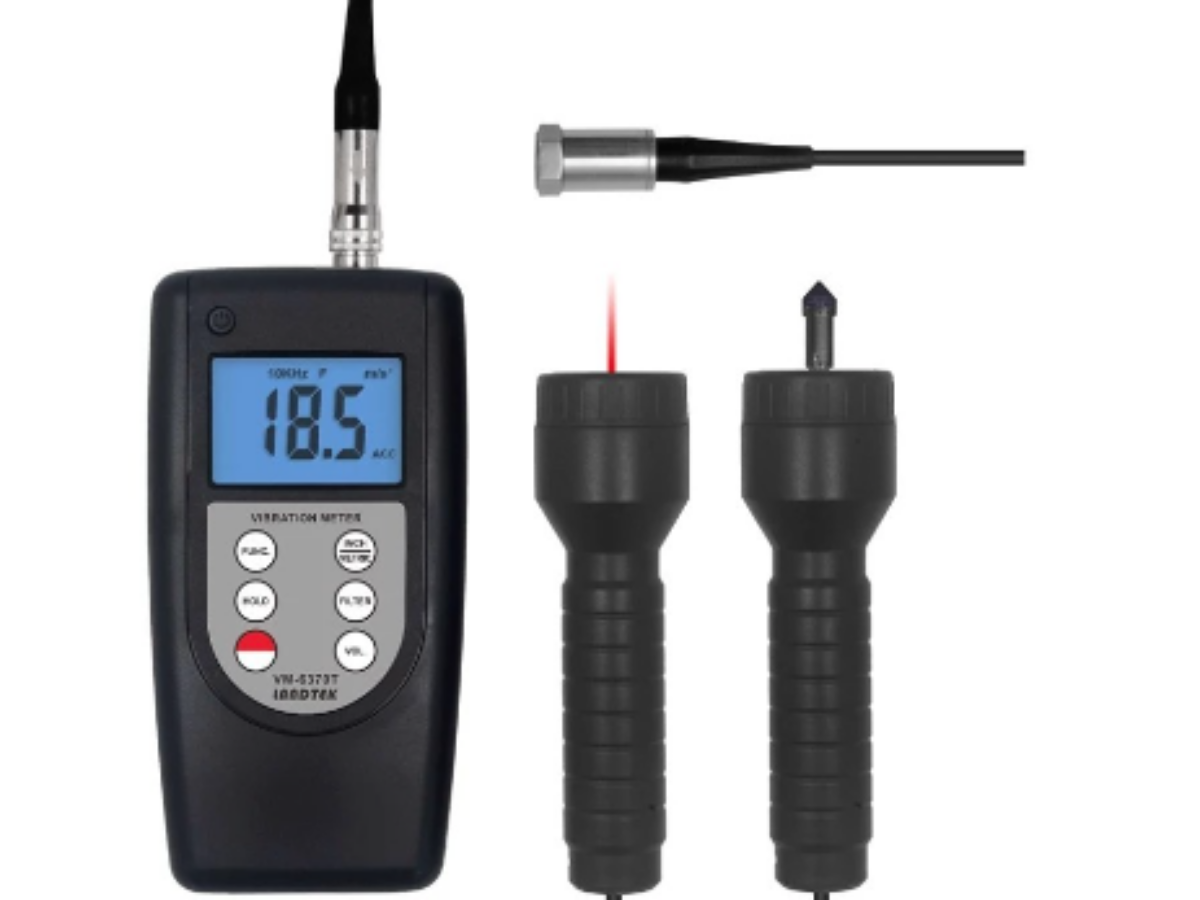

Landtek VM-6370T Vibration Tachometer
Karya Mandiri Techindo has a wide range of Landtek products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Also can be used as contact tachometer and photo tachometer. |
Features Landtek VM-6370T Vibration Tachometer
- In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines
- Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes
- Multifunctional, one instrument combines Photo Tachometer & Contact Tachometer. Be able to measure rotation rate RPM(r/min) & Frequency Hz
- Individual high quality ccelerometer for accurate and repeatable measurements
- Wide frequency range (10Hz~10kHz) in acceleration mode
- Optional headphones for use as electronic stethoscope
- Bearing condition monitoring function
- Use USB data output to connect with PC
- Provide Bluetooth data output choice
Vibration Standard
| ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
| Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) | ||
| 80<H<132 | 132<H<225 | 225<H<400 | ||
| Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
| Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
| 1800~3600 | 1.12 | 1.8 | 2.8 | |
| Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
| 1800~3600 | 0.71 | 1.12 | 1.8 | |
Specifications Landtek VM-6370T Vibration Tachometer
Sensor | Piezoelectric Transducer | |
Measuring Range | Acceleration | 0.1m/s²~400m/s² 0.3ft/s²~1312ft/s² 0.0g~40g Equivalent Peak |
Velocity | 0.01mm/s ~400mm/s 0.004inch/s~16.0inch/sTrue RMS | |
Displacement | 0.001mm~4.0 mm 0.04mil~160.0 mil Equivalent Peak-peak | |
Frequency Range | Acceleration | 10Hz~10kHz |
Velocity | 10Hz~1kHz | |
Displacement | 10Hz~1kHz | |
Rotation Rate Range | 60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’) | |
Frequency Range | 1Hz~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’) | |
Accuracy | 5% of Reading+2 digits | |
Operating Conditions | Temperature | 0ºC~50ºC |
Humidity | <90%RH | |
Power Supply | 4×1.5V AAA(UM-4)Battery | |
Dimensions | 140mmx72mmx34mm | |
Weight | 380g(Not Including Batteries) | |
Standard Accessories | Main Unit | |
Piezoelectric Transducer | ||
Powerful Rare Earth Magnet | ||
Probe(Cone) | ||
Probe(Spherical) | ||
Contact Tachometer Sensor | ||
Photo Tachometer Sensor | ||
Reflective Tape Marks (350mm) | ||
Carrying Case(B04) | ||
Manual Book | ||
Optional Accessories | Headset | |
USB Data Cable with Software | ||
Bluetooth Data Adapter with Software | ||
Landtek VM-6370T – Datasheet
