Description

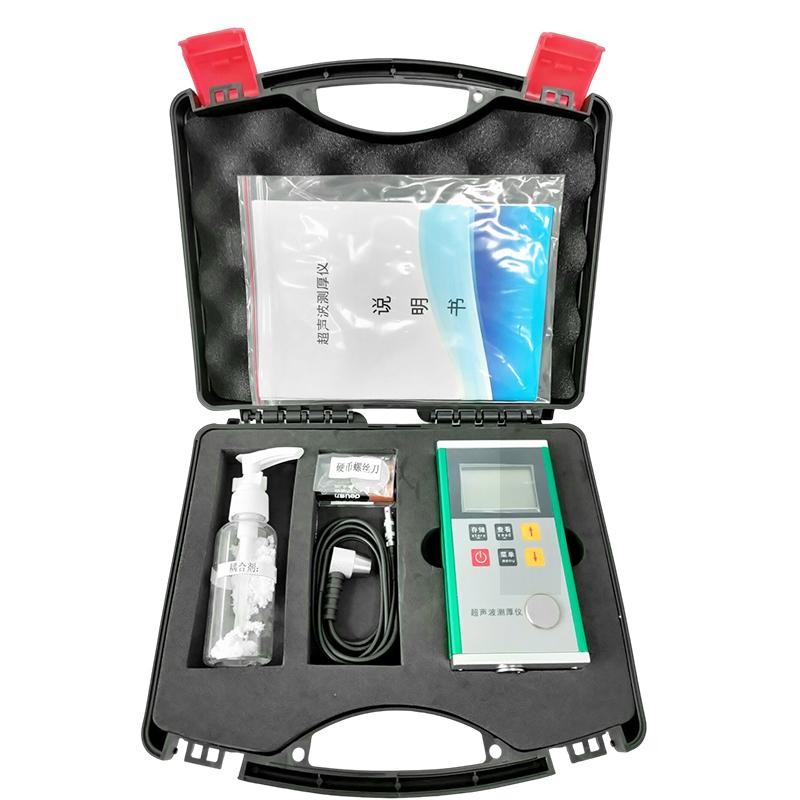

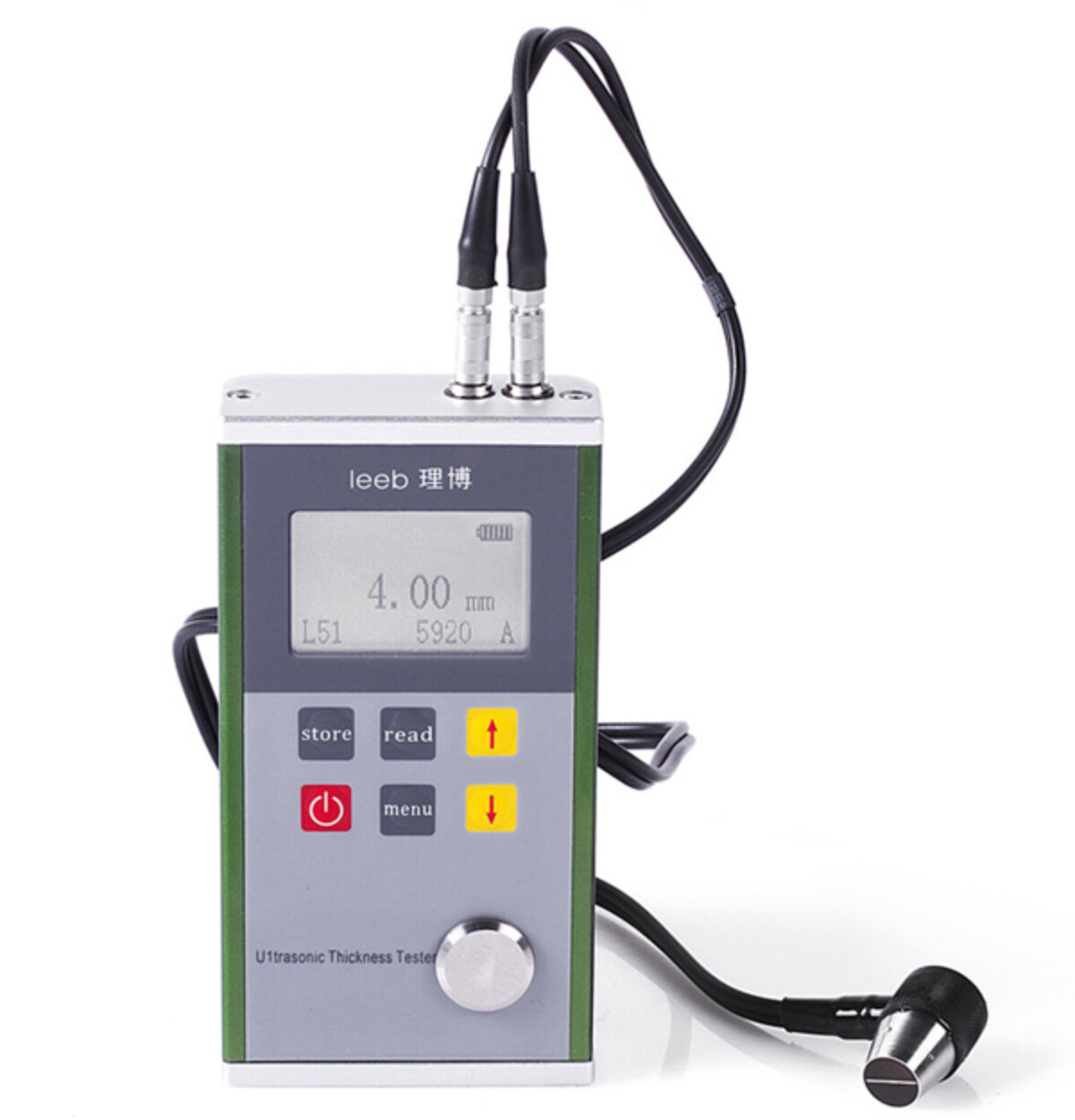

LEEB 332 Ultrasonic Thickness Gauge

Karya Mandiri Techindo has a wide range of LEEB products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Ultrasonic Thickness Gauge is a type of Thickness Gauge that uses ultrasonic waves to measure the thickness of materials. This tool works by sending ultrasonic wave signals to the material being measured, and then measuring the time it takes for the waves to return to the tool after being reflected by the surface of the material.

Ultrasonic Thickness Gauge has several advantages compared to conventional thickness gauges. First, this tool can be used to measure the thickness of non-ferrous materials and materials that cannot be measured with conventional measuring tools. Second, Ultrasonic Thickness Gauge can provide more accurate and precise results because it is not affected by factors such as pressure or material deformation.

Features LEEB 332 Ultrasonic Thickness Gauge

Display: LCD with LED backlight. LCD brightness and contrast are adjustable.
Display contents: thickness value, clutch condition, power status, CAL calibration status, sound speed.
Capable of measuring ultrasonic velocity alternately if the thickness value is known to improve measurement precision.
Zero adjustment: automatically returns to zero when you press the button after the probe is placed on the specimen.
Operated simply and easily.
Nonlinear correction, automatic compensation, to improve measurement accuracy.
Sound velocity measurement test block with known thickness.
Battery information shows the remaining battery capacity, auto sleep function and auto power off to save battery life.
Optional software for processing memory data on a PC.
Alarm function: set measurement limits and give alarms for results exceeding the limits.

Specifications LEEB 332 Ultrasonic Thickness Gauge

Measurement Range: 0.7 ~ 252 mm
Resolution: 0.01mm
Accuracy: +/- (1% H + 0.1)
Velocity: 1000~ 9999
Storage: 2000 set of data
Operating temp: -10°C ~ 60°C
Dampness: 20%~ 90%
Dimensions: 150× 55,5×23mm
Power supply: 2x battery AA

LEEB 320/321/322/330/331/332 – Datasheet
