Description

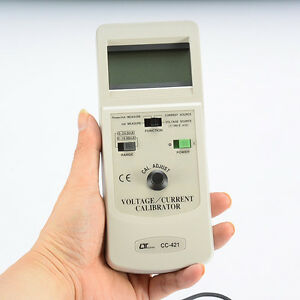

Lutron CC-421 Voltage/Current Calibrator

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron CC-421 Voltage/Current Calibrator

The instruments Powers or Measure a two-wire current loop. Four function provide the quality and accuracy of handheld calibrator : a. Precision current source. b. Measurement of a current signal. c. Power and measurement of two wire loop. d. Precision DC mV source
Portable instrument for calibrating process devices and measuring process signals
Adjustable 0-24 mA current source
Adjustable -199.9 mV to +1.99.9 mV DC voltage source
Current calibrator drives loads up to 500 ohms

Specifications Lutron CC-421 Voltage/Current Calibrator

Display:
º LCD display, max. display counts 1999
º 13 mm ( 0.5″ ) digit size
Function:
º Current source
º Current measurement
º Power and current measurement of two wire loop
º DC mV source
Sampling Time: Approx. 0.4 second
Operating Temperature & Humidity:
º 0℃ to 50℃ ( 32℉ to 122℉ )
º Less than 80% RH
Power Supply: 006P DC 9V, MN1604/PP3 battery or equivalent. Alkaline type or heavy duty type
Dimension: 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch )
Weight: 265 g/0.58 LB ( including battery )

Accessories Included:

Operational manual…………………………. 1 PC
Cable with the alligator pairs ( red & black ), LN-TL421…………………. 1 PC

Lutron CC-421 – Datasheet
