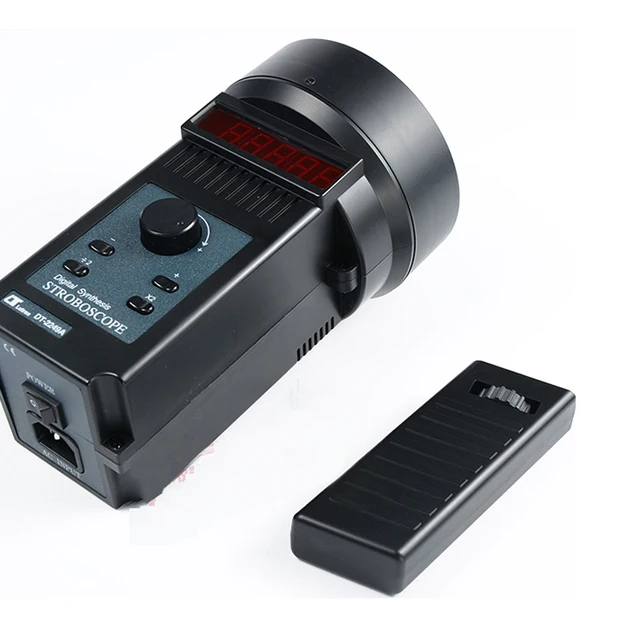

Lutron DT-2249A Stroboscope
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Stroboscope uses the principle of flashing light to capture images. Also known as a flash light shines on a rotating object. Then take the capture frequency in frames per second (FPS) to calculate the speed of the rotating object. This will make the object look like it is at rest.
Lutron DT-2249A is suitable for maintenance, quality work. in industrial plants.
Features Lutron DT-2249A Stroboscope
- Wide range : 60 to 30,000 RPM
- The Digital Stroboscope is used the microprocessor circuit design, high accuracy, digital readout, light duty, that is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action
- Xenon flash tube, high intensity
- Wide range : 60 to 30,000 RPM
- Red LED display, easy to read
- Adjustment resolution : 0.1 RPM ( 1,000 RPM ), 1 RPM ( ≧ 1,000 RPM )
- High intensity light
- Setting buttons : Digital adjust button, x 2 button, ÷ 2 button, + button, – button, easy operating
- Xenon flash tube with plug and socket, easy to make the tube replacement
- Compact and heavy duty housing case
Specifications Lutron DT-2249A Stroboscope
| Display | 14 mm(0.56″) LED, 5 digits |
| Flash adjust range | 60 to 30,000 RPM/FPM * RPM : round per minute * FPM : flash per minute |
| Resolution | 0.1 RPM : < 1,000 RPM 1 RPM : ≧ 1,000 RPM |
| Function buttons | Digital rotate knob, x 2 button, ÷ 2 button, + button, – button |
| Accuracy | ± (0.05 % + 1d) |
| Signal Stability | The signal adjusting circuit is used the digital synthesis circuit, the output signal will existing high stability and not change |
| Dimension | 21 x 12 x 12 cm (8.3 x 4.8 x 4.8 inch) |
| Weight | 1Kg/2.2 LB |
| Housing | Compact and impact plastic injection case with plastic mirror type reflector |
| Calibration | Crystal time base and microprocessor circuit, don’t necessary take any external calibration process |
| Accessories Included | Operation manual Power cable ke listrik Certificate Calibration |
Flash Tube Specifications
| Flash tube | Xenon lamp |
| Flash Duration | Approximately 60 to 1,000 microseconds |
| Flash color Temp. | Xenon white 6,500 K degree |
| Flash energy | 4 Watts-seconds (joules) |
| Beam Angle | 80 degrees |
| Flash tube replacement | It is required to change the flash tube when the instrument start to flash irregularly at speeds > 3600 RPM/FPM |
| Operating duty Cycle | For prolong life and safety, please adhere to the following operation duty
* 10 min. cooling off period between cycles |
Lutron DT-2249A – Datasheet
