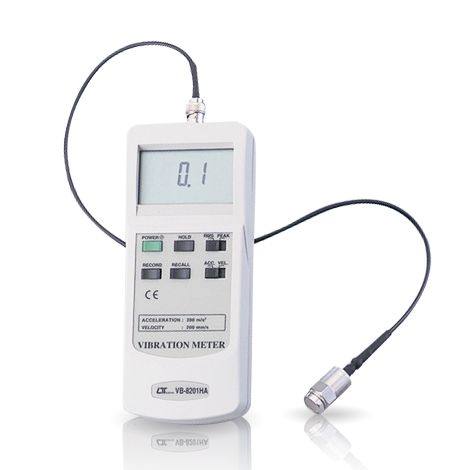

Lutron VB-8201HA Vibration Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Features Lutron VB-8201HA Vibration Meter

Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed
Frequency range 10 Hz – 1 kHz, sensitivity relative meet ISO 2954
Professional vibration meter supply with vibration sensor & magnetic base, full set
Velocity measuring range 200 mm/s
Acceleration measuring range 200 m/s2
RMS & Peak measurement
Wide frequency range
Data hold button to freeze the desired reading
Memory function to record maximum and minimum reading with recall
Separate vibration probe, easy operation
Super large LCD display
Microcomputer circuit, high performance
Auto shut off saves battery life
Built-in low battery indicator
Heavy duty & compact housing case
Complete set with the hard carrying case

Specifications Lutron VB-8201HA Vibration Meter

Display	61 mm x 34 mm supper large LCD display 15 mm ( 0.6″ ) digit size
Measurement	Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value
Range	Velocity : 200 mm/s : 0.5 to 199.9 mm/s Acceleration : 200 m/s2 : 0.5 to 199.9 m/s2
Frequency range	10 Hz to 1 KHz
Accuracy	± ( 5 % + 2 d ) reading
Calibration point	Velocity : 50 mm/s (160 Hz) Acceleration : 50 m/s2(160 Hz)
Circuit	Exclusive microcomputer circuit
Data hold	Freeze the desired reading
Peak measurement	To measure the peak value
Power off	Auto shut off, saves battery life, or manual off by push button
Memory	Maximum & Minimum value
Sampling time	Approx. 1 second
Operating temperature	0 to 50°C ( 32 to 122°F )
Operating humidity	Less than 80% RH
Power supply	Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent
Power consumption	Approx. DC 6 mA
Weight	Meter: 274 g/0.60 LB Probe with magnetic base: 38 g/0.08 LB
Dimension	Meter : 185 x 78 x 38 mm ( 7.3 x 3.1 x 1.5 inch ) Vibration sensor probe: Round 16 mm Dia. x 29 mm

Accessories included:

Instruction manual……………….. 1 PC
Vibration sensor ( VB-81A )…………………………………… 1 PC
Cable……………………………… 1 PC
Magnetic base………………….. 1 PC
Carrying Case…………………… 1 PC

Lutron VB-8201HA – Datasheet
