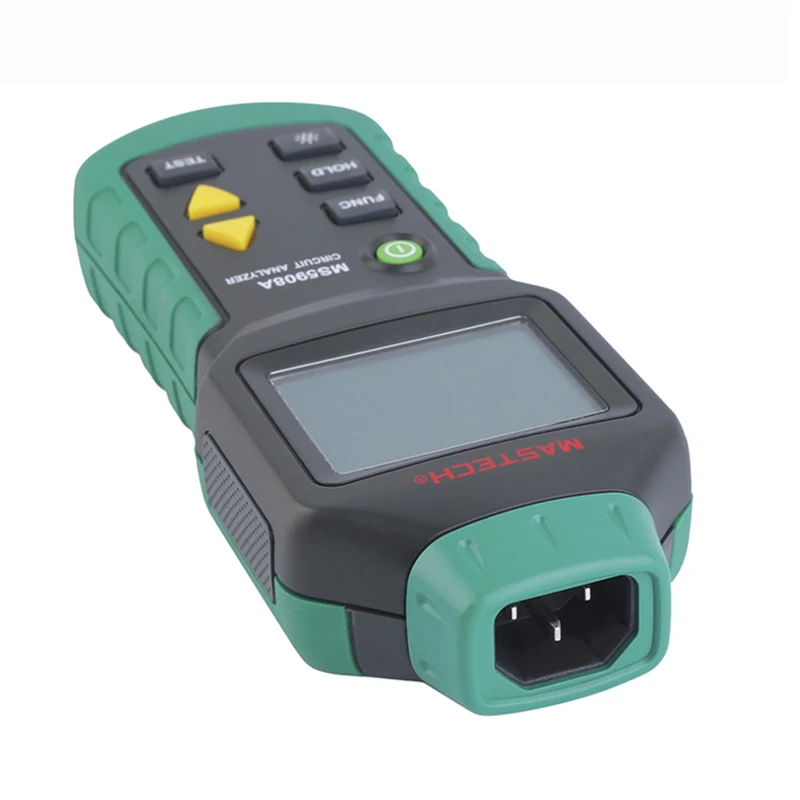

Mastech MS5908C Circuit Analyzer
Karya Mandiri Techindo has a wide range of Mastech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The MASTECH MS5908C Circuit Analyzer is an essential tool for evaluating electrical systems, offering a broad range of measurements to ensure safety and performance. This compact and lightweight device is ideal for professionals needing accurate and reliable results in various environments.
Features Mastech MS5908C Circuit Analyzer
- Auto Power Off
- Data Hold
- Low Battery Display
| Current | |
|---|---|
| AC | – |
| DC | – |
| Voltage | |
|---|---|
| AC | 375V |
| DC | – |
Specifications Mastech MS5908C Circuit Analyzer
| Specifications | Range | Resolution | Accuracy |
| Line Voltage | 85.0~265.0V | 0.1V | ±(1.0%+2) |
| Peak Line Voltage | 120.0~375.0V | 0.1V | ±(1.0%+2) |
| Voltage With | 10.0~265.0V | 0.1V | ±(2.5%+2) |
| Loading Equipments | |||
| Line Frequency | 45.0~65.0Hz | 0.1Hz | ±(1.0%+2) |
| Impedance-live | 0.00~3.00Ω | 0.01Ω | ±(2.5%+2) |
| and Neutral & Earth | >3.00Ω | 0.01Ω | No ensure |
| Neutral-Ground Voltage | 0.0~10.0V | 0.1V | ±(2.5%+2) |
| RCD Trip Time | 1ms~6.5S | 1mS | ±(1.0%+2) |
| RCD Trip Current | 30mA~37mA | 0.1mA | ±(1.0%+2) |
| GFCI Trip Time | 1ms~6.5S | 1mS | ±(1.0%+2) |
| GFCI Trip Current | 6mA~9mA | 0.1mA | ±(1.0%+2) |
| Voltage Drop | 0.1~99.9% | 0.10% | ±(2.5%+2) |
| Voltage Drop | 5/8/10A | ||
| Load Current |
- Power Supply : 6×1.5V AAA Batteries
- Product Size : 194mmx78mmx37mm/7.64″x3.07″x1.46″
- Product Weight : 254g/0.56lb
- Certificate : CE / ETL / RoHS
- Safety Rating : CAT III 300V
Accessories:

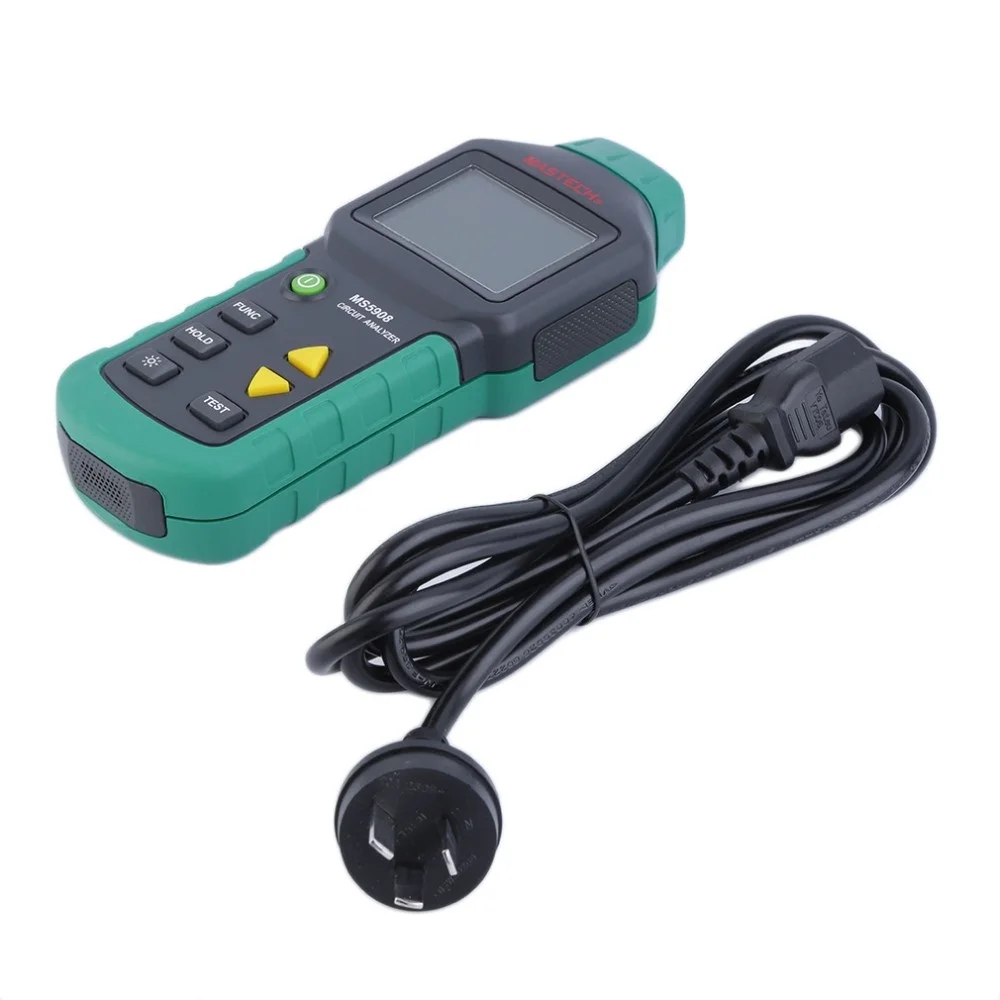

- Power Cord
- Carry bag
- Battery
- User’s manual
Mastech MS5908C – Manual
