Description

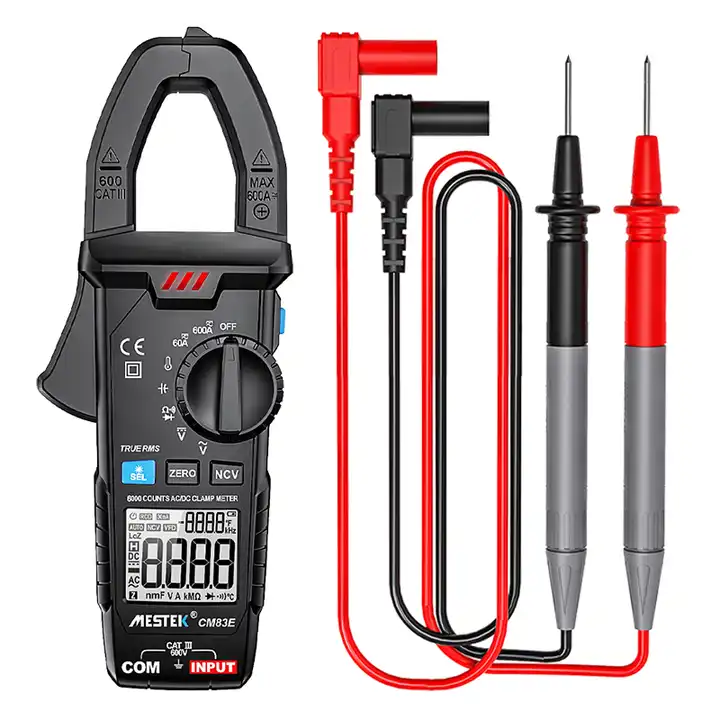

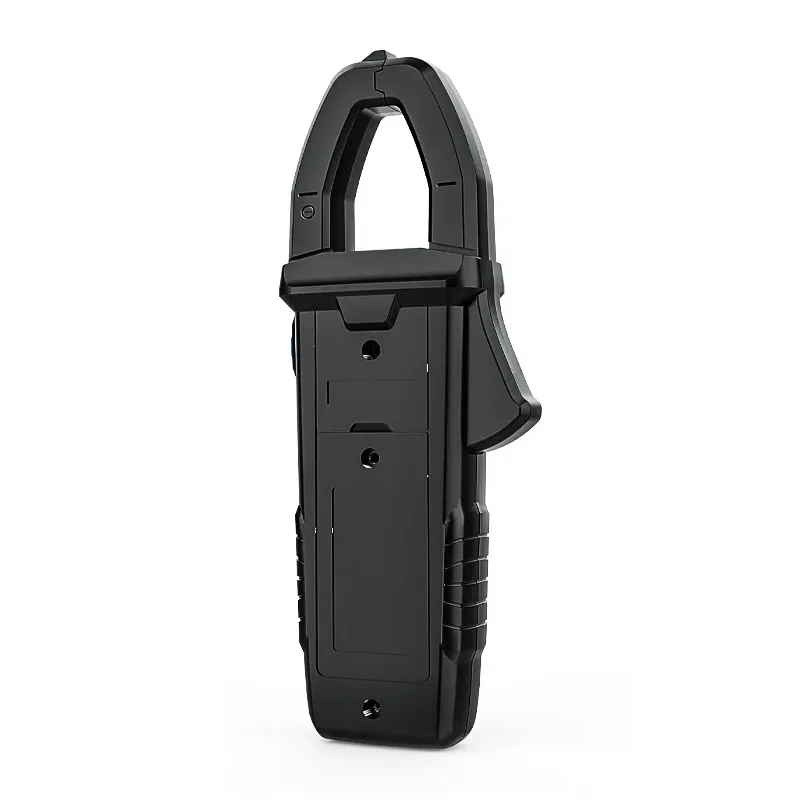

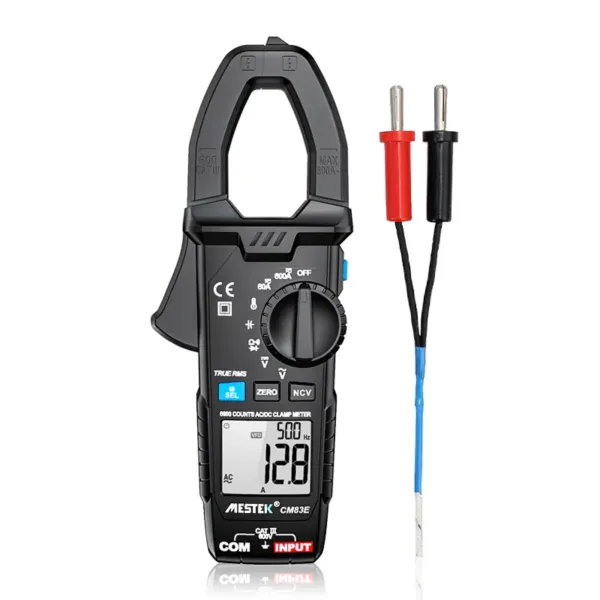

Mestek CM83E Digital Clamp Meter
The Mestek CM83E is a digital measuring instrument used to measure electric current in a cable or electrical conductor by clamping the measuring jaws onto the cable being measured. This instrument is also known as an ampere clamp or clamp meter.
The Mestek CM83E measures AC and DC currents up to 600A and AC/DC voltages up to 600V. It also measures resistance, frequency, capacitance, temperature, and continuity. It features a large LCD display for clear measurement results.
The Mestek CM83E features an auto-ranging feature that automatically determines the appropriate measurement range for accurate results. It also features a hold and backlight feature for easy use in low-light conditions.
The Mestek CM83E is designed to CAT III 600V safety standards and features overload protection and a low battery indicator. It can be used in a variety of applications, including electrical installations, machine repair, and the automotive industry.
Features Mestek CM83E Digital Clamp Meter :
- Electric current measurement: Mestek CM83E can be used to measure electric current up to 600A with high accuracy.
- Voltage measurement: In addition to current, this tool can also measure AC/DC voltage up to 600V.
- Auto-ranging feature: This tool has an auto-ranging feature that makes it easier for users to get accurate measurement results.
- LCD Screen: The Mestek CM83E is equipped with a large LCD screen so it is easy to read the measurement results.
- Hold and backlight feature: This tool is also equipped with a hold and backlight feature which makes it easier to use in low light conditions.
- Resistance, frequency, capacitance, temperature, and continuity measurements: The Mestek CM83E can also be used to measure resistance, frequency, capacitance, temperature, and continuity.
- CAT III 600V safety standards: This tool is designed with high safety standards and is equipped with overload protection and a low battery indicator.
- Wide application: Mestek CM83E can be used in various applications such as electrical installation, machine repair, and automotive industry.
Specification Mestek CM83E Digital Clamp Meter :
| DC Voltage | 600mV/6V/60V/600V | ±(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V | ±(1.0%+3) |
| DC Current | 6A/60A/600A±(3%+10) | – |
| AC Current | 6A/60A/600A+(3%+10) | – |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+3) |
| Capacitance | 600nF/6μF/60μF/600μF/6mF/60mF | ±(3.5%+15) |
| °C/°F | -20°C~1000°C/-4°F~1832°F | ±(2.0%+2) |
| Display | 6000 Counts | |
| Jaw Opening | 32mm | |
| Diode | √ | |
| True-RMS | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| Flashlight | √ | |
| Auto Power off | √ | |
| NCV | √ | |
| Low Battery Indication | Lower than 2.4V | |
| Batteries | 2*1.5V AAA | |
| Size | 200*75*30(mm) | |
| Weight | About 226g | |
| Safety Level | EN61010-2-032,CAT Ⅲ 600V | |
| Standard Accessories | Digital Clamp Meter-Probe-Carrying | |
| Bag-Batteries-User Manual-Color Box |
