Description

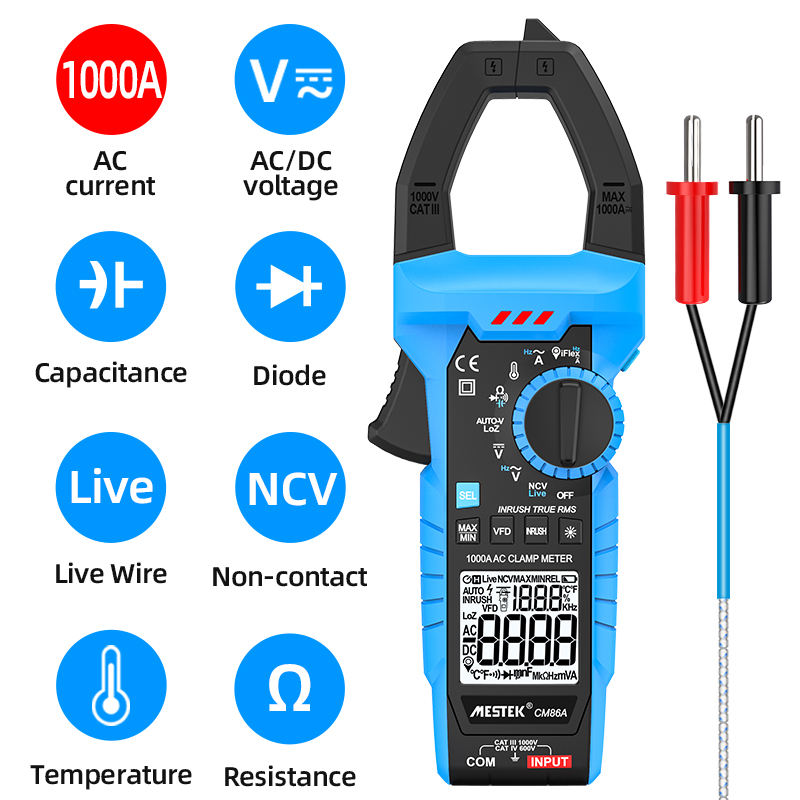

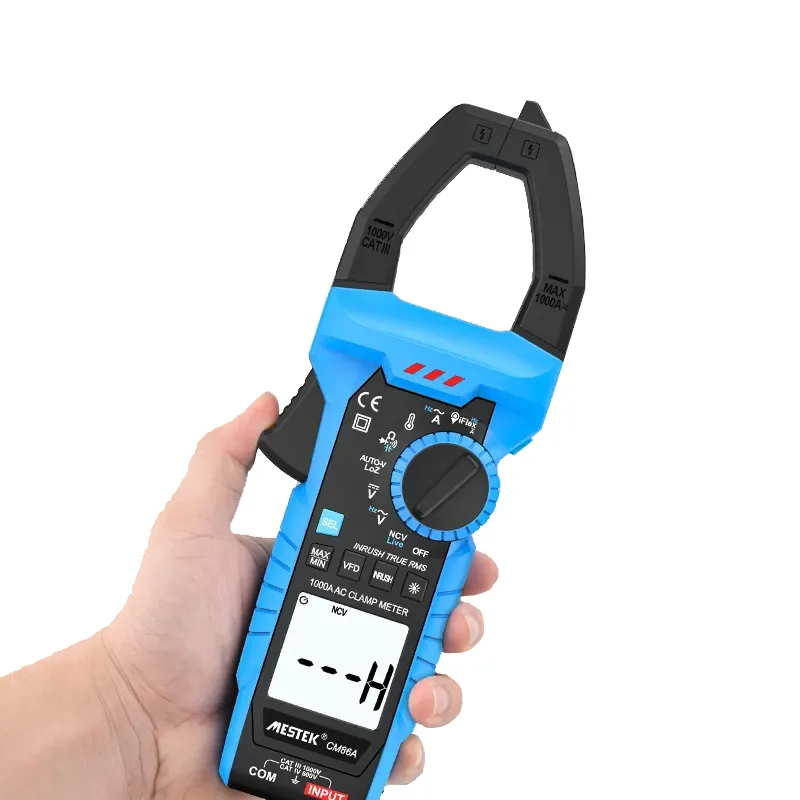

Mestek CM86A Clamp Meter AC 1000A
The 6000-count clamp meter can measure up to 1000A of high current with True-RMS accuracy. It features a VFD function, ideal for precise measurements in variable frequency drive systems. The meter also includes K-type temperature testing. It can detect inrush current during engine startups, helping to analyze power surges. With flexible jaws, it allows easy access to hard-to-reach areas. This makes it a versatile tool for electricians and technicians.
Features Mestek CM86A Clamp Meter AC 1000A :
- Measures AC current up to 1000 A without breaking the cable
- True RMS for measurement accuracy
- Contactless voltage detection (NCV)
- Measurement of AC/DC voltage, resistance, frequency, capacitance
- Data Hold & Backlight
- Temperature measurement (with probe)
- Auto power off & battery indicator
Specification Mestek CM86A Clamp Meter AC 1000A :
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.8%+3) |
| AC Voltage | 6V/60V/600V/750V | ±(1.0%+5) |
| DC Current | 60A/600A/1000A | ±(2.5%+10) |
| AC Current | 60A/600A/1000A | ±(2.5%+10) |
| iFlex flexible clamp | 3000A(Optional) | ±(3.0%+5) |
| Inrush Current | 1000A | ±(10%+60) |
| Resistance | 600/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(2.0%+5) |
| Capacitance | 600nF/6μF/60μF/600μF/6mF/60mF | ±(5.0%+10) |
| K-type Temperature | -20°C-1000°C/-4“F-1832°F | ±(2.0%+2) |
| Continuity Buzzer | <30Ω | |
| Jaw Opening | 42mm | |
| True-RMS | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| Flashlight | √ | |
| K-type Temperature | √ | |
| Auto Power off | √ | |
| NCV | √ | |
| Input Impedance | 1MΩ | |
| Low Battery Indication | Lower than 2.4V | |
| Batteries | 2*1.5V AAA | |
| Size | 250*85*45(mm) | |
| Weight | About 620g | |
| Safety Level | EN61010-2-032,CAT Ⅲ 1000V | |

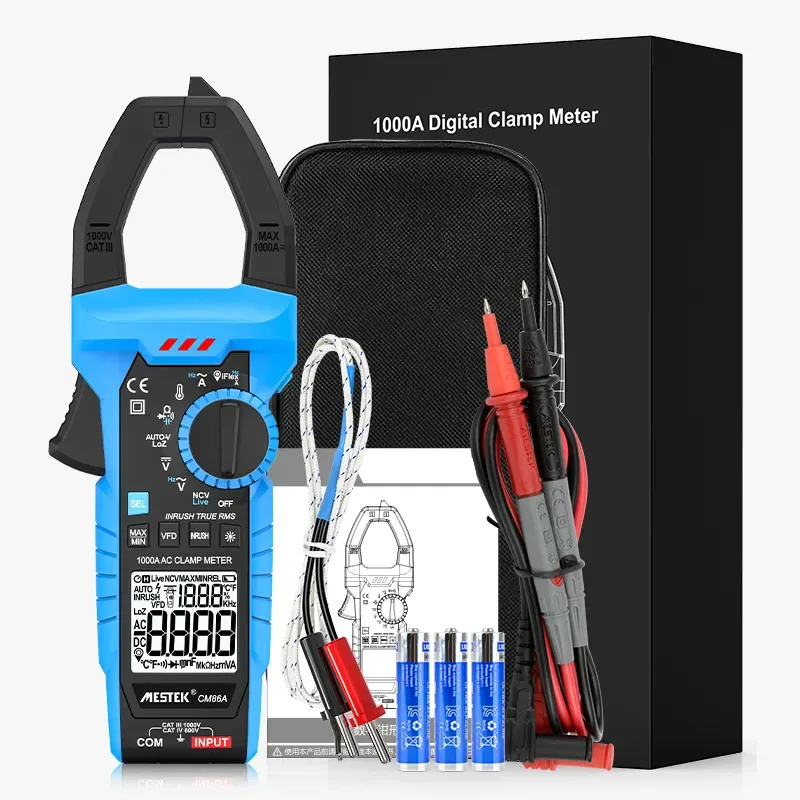

| Standard Accessories | Digital Clamp Meter-Probe-Carrying | |
| Bag-Batteries-User Manual-Color Box |
