Description

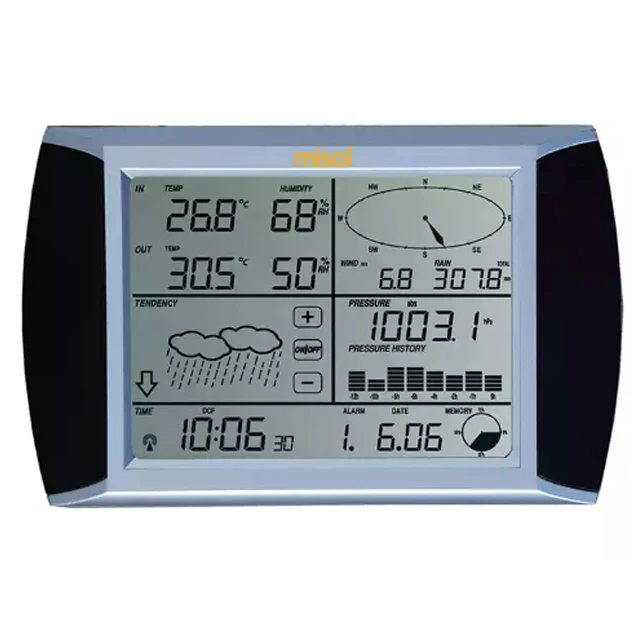

MISOL WS1080 Weather Station Touch Panel Viewer Console
The MISOL WS1080 Wireless Weather Station is a professional wireless weather station designed for comprehensive, real-time monitoring of various atmospheric parameters. It is suitable for home use, hobby use, and basic meteorological purposes. With an integrated external sensor that measures temperature, humidity, rainfall, wind speed, wind direction, and air pressure, the WS1080 provides a complete picture of weather conditions at your location. Data from the external sensor is transmitted to the console (receiver) via radio signals with a range of up to approximately 100 meters under ideal conditions.
Features MISOL WS1080 Weather Station :
- Touch screen panel
- It can measures: Wind speed, wind direction, rain, temperature (outdoor & indoor), humidity (outdoor & indoor), atmosphere pressure.
- It transmits data from the outdoor sensor array to the receiver wirelessly (433Mhz).
- The device (indoor ) can be connected to PC by USB cable. In the software, PC can view the current information from the device, and export the history data into computer(format:csv)
- The data can be uploaded to the website(www.wundergound.com) via PC, when the PC is connecting to the internet.
Functions:
- Free PC software to view the weather data, after PC connecting to the receiver(display).
(remark: software language: Chinese, Czech, Danish, Deutsch, English, French, Hungarian, Polish, Svenska, Spanish) - USB port for easy connection to your PC to view the weather data.
- History Record interval is: 1-240minutes(adjustable). The receiver can log 3552 records in total.
- Rainfall data (inch or mm): 1-hour, 24-hour, one week, one month and total since last reset.
- Wind chill and Dew point temperature display ( °F or °C)
- Records min. and max. wind chill and Dew point with time and date stamp
- Wind speed (mph, m/s, km/h, knots, Beaufort)
- Wind direction display with LCD compass
- Weather forecast tendency arrow
- Weather alarm modes for: a) Temperature b) Humidity c) Wind chill d) Dew point e) Rainfall f) Wind speed g) Air pressure h) Storm warning
- Forecast icons based on changing barometric pressure
- Barometric pressure (inHg or hPa) with 0.1hPa resolution
- Wireless outdoor and indoor humidity (% RH)
- Records min. and max. humidity with time and date stamp
- Wireless outdoor and indoor temperature (°F or °C)
- Records min. and max. temperature with time and date stamp
- 12 or 24-hour time display
- Perpetual calendar
- Time zone setting
- Time alarm
- High light LED backlight
- Wall hanging or free standing
Specification MISOL WS1080 Weather Station :
| Outdoor data | Transmission distance: Max. 100meter (330 feet) (tested in open field, no obstacle in between, no interference in between) Transmission Frequency: 433 MHz |
| Temperature | range: -40 to +60°C(-40 °F to +140°F) Accuracy : +/- 1˚C, Resolution:0.1˚C |
| Humidity | range:10%～99% Accuracy : +/- 5%, Resolution: 1% |
| Rain volume | 0 – 9999 mm Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm) Accuracy : +/- 6% |
| Wind speed | 0-50m/s (0~100mph) Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s) |
| Wind direction | 0 to 359 degree |
| Measuring interval for outdoor sensor | 48 sec |
Indoor data | Indoor temperature range: 0˚C–50˚C (32 °F to +122 °F) Resolution : 0.1˚C Accuracy : +/-1˚C |
Humidity: 10%～99% | |
| Resolution: 1% | |
Accuracy : +/- 5% | |
| air pressure range | 300-1100hPa (8.85 -32.5inHg) |
| Accuracy | +/-3hpa |
| Resolution | 0.1hPa (0.01inHg) |
Power requires:
Base station(display):3 x AA 1.5V batteries(not included)
Outdoor sensor: 2X AA 1.5V batteries(not included),
Outdoor Sensor:
- Wind Speed Sensor
- Wind Vane
- Thermo-hygro sensor
- Rain collector
- Bubble level
- Solar panel
- Antenna
- U-Bolt
- Battery compartment
- Reset button
- LED Indicator: light will turn on for 4s when the unit is powered up. Then the LED will flash once every 48 seconds (the sensor transmission update period).
PC Software:
History (in software):
MISOL WS1080 – Datasheet
