Description
MISOL WS2320 Weather Station | Alat Pemantau Cuaca
MISOL WS2320 is a wireless weather station designed to provide accurate and practical weather data.
Features MISOL WS2320 Weather Station :
- Can measure: Wind speed, wind direction, rain, temperature (outdoor & indoor), humidity (outdoor & indoor), pressure, UV, illumination, heat index.
- Transmits data from the outdoor sensor array to the receiver wirelessly (433Mhz)
- The receiver (display) can connect to Wi-Fi (supports 2.4Ghz Wi-Fi), and data can be uploaded to the website (www.wundergound.com, www.weathercloud.net, wow.metoffice.gov.uk)
- Computers connected to the same Wi-Fi (supports 2.4Ghz Wi-Fi), can view the latest information from the device, and export historical data to the computer (format:csv)
Specification MISOL WS2320 Weather Station :
| Outdoor data | Transmission distance: Max. 100meter (330 feet) (tested in open field, no obstacle in between, no interference in between) RF Frequency: 433 MHz |
| Temperature | range: -40～+60°C Accuracy : +/- 1˚C, Resolution:0.1˚C |
| Humidity | range:10%～99% Accuracy : +/- 5%, Resolution: 1% |
| Rain volume | 0 – 9999 mm Resolution:0.3mm (if rain volume < 1000mm), 1mm (if rain volume > =1000mm) Accuracy : +/- 10% |
| Wind speed | 0-50m/s (0~100mph) Accuracy: +/- 1m/s (wind speed< 5m/s), +/-10% (wind speed >=5m/s) |
| Wind direction | 0 to 359 degree |
| Light | 0-200k Lux Accuracy : +/-15% |
| UVI | 0-15 |
Functions:
1) Free PC software to view the weather data, after PC connecting to the same Wi-Fi(support 2.4Ghz Wi-Fi)
(remark: software language: Chinese, Czech, Danish, Deutsch, English, French, Hungarian, Polish, Svenska, Spanish)
2) History Record interval is: 1-240minutes(adjustable). The receiver can log 3552 records in total.
3) Time and date, Sunrise and Sunset time, Moon phase.
4) Indoor/outdoor temperature and humidity & Wind chill & wind direction & Rainfall & Pressure measure,
5) Display rain rate, rainfall data in 24 hours, one week, one month, one year, total rain and rainfall event.
6) Wind speed in mph, km/h, m/s, knots or Beaufort.
7) The direction of the wind with 360 degree.
8) Wind chill, dew point and heat index temperature display.
9) Barometric, weather forecast.
10) MAX, MIN with a time stamp.
11) High alarm and low alarm.
12) Light and UV index.
13) Save the data when batteries is changed
14) High light LED backlight
Display information
1.Time | 2.Indoor Temperature |
3.Indoor Humidity | 4.Barometric Pressure |
5. Barometric Pressure graph | 6.Weather Forecast icon |
7.information display area | 8．RF signal |
9. Alarm icon | 10. Memory status |
11.Wind direction | 12.Rain fall |
13.Wind speed/Gust speed | 14.wind chill/Dew point/Heat index |
15.Outdoor Humidity | 16.Outdoor Temperature |
17.UV index | 18.Light |
19.Date | 20.Wifi Signal icon |

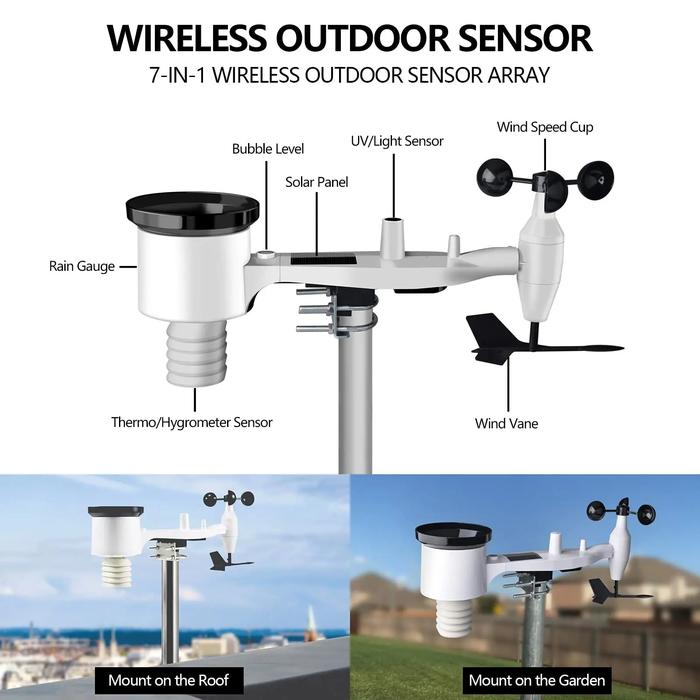

1. Wind Vane
2. Wind Speed Sensor
3. UV sensor/Light sensor
4. Solar panel
5. Rain collector
6. Thermo-hygro sensor
7. Bubble level
8. U-Bolt
9.LED Indicator
10. Battery door
11. Reset button
PC Software:
History (in software):
