Product Description

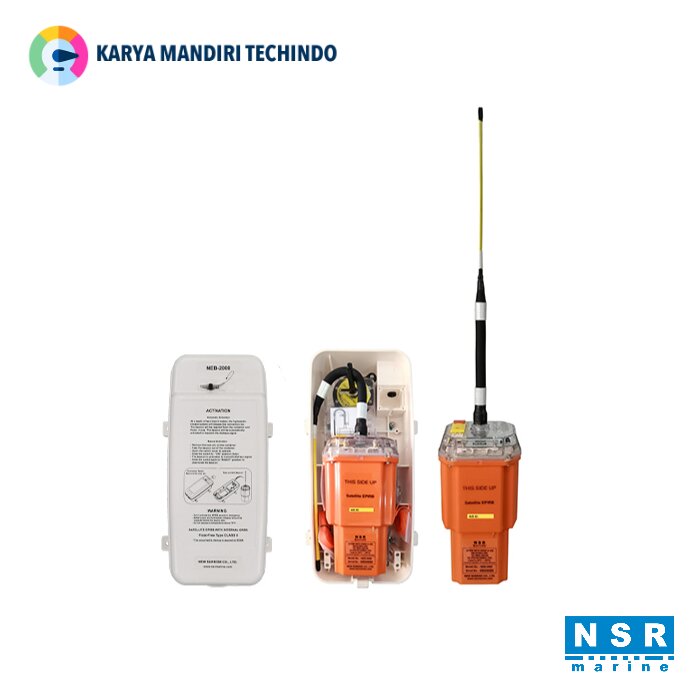

NSR NEB-2000C EPIRB

Features NSR NEB-2000C EPIRB

Designed to use for alert search and rescue service at sea. Confirming to IMO and IEC rules.
Location accuracy within 10m, thanks to built-in GNSS receiver used.
Automatic release device activated underwater 4 meters.
Self-protective device used to avoid possible false alarms.
Self-test function applicable.
406MHz transmission together with homing 121MHz.
Cospas-Sarsat approved.
Creative design for easy operation.
Automatic power cut when test completed.
Multiple protection to avoid false alert.
Lower power consumption for longer working hours.
CCS/DNV/RS/VR type approval.

Specifications NSR NEB-2000C EPIRB

General
Model:	NEB-1000 / NEB-2000C
Case Material:	Special ABS+PC
Color:	Orange
IP Grade:	IP67
Buoyant:	Yes
Deployment:	Automatic hydrostatic release or Manual switch control
Accessories:	Hydrostatic Release Unit
Physical
Weight:	1.8 kg (Beacon), 1.6 kg (Container)
Size:	116 (W) x 710 (H)x 100 (D) mm (Beacon), 220 (W)×415 (H)×144 (D) mm (Container)
406 MHz Transmitter
Frequency:	406.040MHz
Output Power:	5W ± 2dB
121.5 MHz Homer
Frequency:	121.5MHz
Output Power:	50mW ± 3dB
GNSS Receiver
Type:	Built-in GNSS antenna
Center Frequency:	L1-1575.42MHz
Satellites Tracked:	50
Battery
Type:	NBT300 / NBT400
Total Voltage Rating:	14.4 V (4ea x 3.6V each)
Storage:	max 5 years on board (see Note 1)
Operating:	≥48hrs. (-20℃)
Environment
Operating Temperature:	-20℃ ～ +55℃
Storage Temperature:	-30℃ ～ +70℃

*Note1: It is recommended that the battery can be stored at the dealer/agent max 1 year since purchased and it should be replaced in 5 years after supplied to a vessel.
