Rion VM-63C Digital Vibration Meter

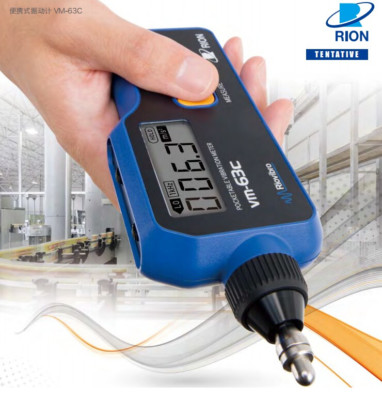

The Rion VM-63C Digital Vibration Meter is a vibration measuring device that is very easy to use and is designed for maintenance and checking on industrial machines, especially rotating machines. The integrated accelerometer and digital display eliminate the need for any cables, making on-site measurements easy and fast. It can be held in one hand and operated with a single button, combining exceptional comfort with complete measurement control.

Product Description

Rion VM-63C Digital Vibration Meter

Karya Mandiri Techindo has a wide range of Rion products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Rion VM-63C Digital Vibration Meter is a vibration meter that is very easy to use and designed for maintenance and checking in industrial machines, especially in rotational machines. The integrated accelerometer and digital display eliminate the need for any cables, making on-site measurements easy and fast. It can be held in one hand and operated with a single button, combining great convenience with complete control of measurement.

Features Rion VM-63C Digital Vibration Meter

  • Pukuk held the tool in front of the object, measuring the vibration frequency with a wide range is very possible.
  • The display readout shows either acceleration (m/s2 Peak), velocity (mm/s RMS), or acceleration (mm P-P).
  • Measurements in unbalance, misalignment (low vibration frequency range) or bearing vibration (high vibration frequency range) are also possible.
  • With a wide distance measurement design so there is no need to change measurement distances frequently.
  • It is enough to press the MEASURE button to turn on the tool and if the tool is not used for a long time it will automatically turn off.
  • Environmentally friendly because it uses a rechargeable battery (with Alkaline Battery it can be used for 50 hours in continuous use)

Measurement Procedure:

  1. Press the MEASURE button, and position the tool in front of the object and hold the vibration detector. Use pressure of about 500 g to 1 kg
    when the MEASURE button is pressed, the vibration number will appear on the screen.
  2. When releasing the MEASURE button pauses the measurement, the current vibration number can be read on the screen.
  3. To restart the measurement, just press the MEASURE button again and hold it down, and then you can take measurements repeatedly.
  4. If there is no measurement activity for 60 seconds, the tool will automatically shut down. vm-63c

Specifications Rion VM-63C Digital Vibration Meter

Applicable standards Chinese RoHS, CE marking
Type  Piezoelectric accelerometer (shear type)
Measurement range Acceleration: 0.1 to 199.9 m/s2 EQ PEAK (RMS x √2)
Velocity: 0.1 to 199.9 mm/s RMS
Displacement: 0.001 to 1.999 mm EQ P-P (RMS x 2√2)
Measurement accuracy
(referenced to 80 Hz)
Between -10 ºC and +50 ºC
Acceleration:±5 % ±2 digits
Velocity:±5 % ±2 digits
Displacement:±10 % ±2 digits
Outside of temperature range at left
Acceleration:±8 % ±2 digits
Velocity:±8 % ±2 digits
Displacement:±15 % ±2 digits
 Vibration frequency range Acceleration:10 Hz to 1 kHz (LO) 1 kHz to 15 kHz (HI)
Velocity:10 Hz to 1 kHz
Displacement:10 Hz to 1 kHz
Display Display value is held when MEASURE button is released
Measurement:value display 3 1/2 digits, digital (LCD)
Display:update rate Approx. 1 s
 Signal output Earphone (VP-37) can be connected
Output impedance Approx. 170 Ω
Load impedance Approx. 10 kΩ or higher
AC output Approx. ±2 V PEAK
 Power supply  IEC R6 (size AA) batteries (alkaline / manganese or
nickel-hydride rechargeable batteries) x 2
Current consumption:Approx. 35 mA
Battery life:About 50 h continuous use (at 25 ºC, with alkaline batteries)
 Ambient conditions for operation -20 ºC to +60 ºC, 90 % RH or less (no condensation)
Dimensions and weight Approx. 178 (H) x 64 (W) x 27 (D) mm, approx. 200 g (incl. batteries)
 Supplied accessories  IEC R6 (size AA) alkaline batteries x 2,silicone rubber case x 1,Attachment S x 1

Rion VM-63C – Datasheet


Produk asli Kami distributor langsung Rion .Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Rion

Model

VM-63C

Made In

Japan

Weight

1 kg
