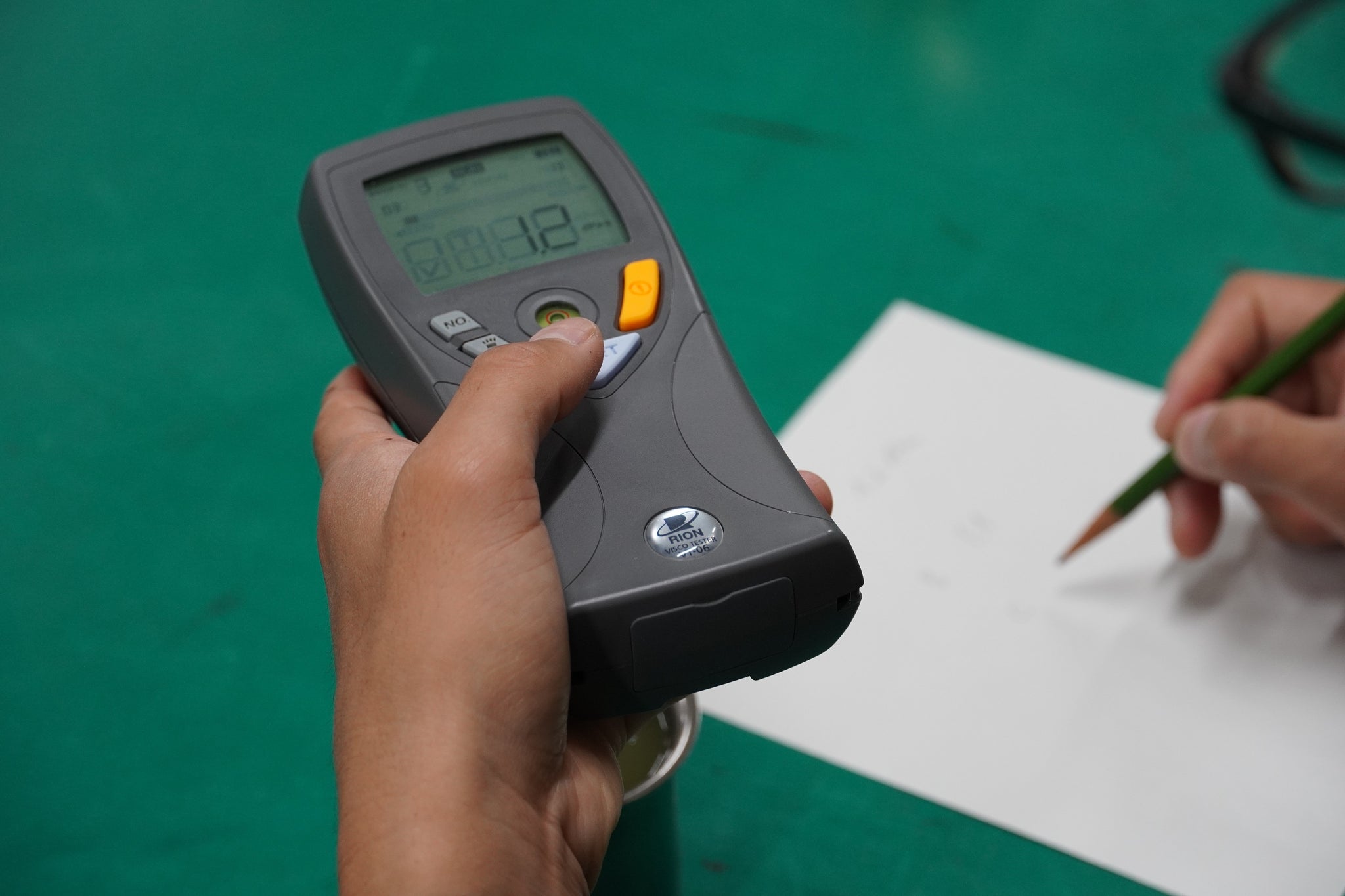

Rion VT-06 Viscotester/Viscometer
Karya Mandiri Techindo has a wide range of Rion products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The VT-06 is designed for quality control applications in the manufacturing process of industrial products such as petrochemicals, paint, and adhesives, as well as foodstuffs. Viscosity measurements covering a wide range are possible, such as gear oil used in construction machinery. Measurement is performed by simply submerging a rotor in the fluid. The resistance to rotor movement caused by the viscosity (torque) is measured to obtain direct readings.
Features Rion VT-06 Viscotester/Viscometer
- Compact and light weight make the unit easily portable and allow operation with one hand
- Can be powered by alkaline batteries, nickel-hydride rechargeable batteries, or AC adapter
- Direct indication of viscosity in decipascal-seconds (SI units)
- Dedicated stand for measurement available as option
Specifications Rion VT-06 Viscotester/Viscometer
| Applicable standards | CE marking, WEEE Directive, Chinese RoHS |
| Measurement range | (based on combination with the cup specified below “Sample fluid capacity”) |
| No. 3 rotor: No. 1 rotor: No. 2 rotor: | 0.3 dPa•s to 13 dPa•s (resolution: 0.1) 3 dPa•s to 150 dPa•s (resolution: 1) 100 dPa•s to 4000 dPa•s (resolution: 10) |
| Sample fluid capacity | |
| No. 1 and No. 2 rotor | |
| Approx. 350 mL (with JIS 300 mL beaker) | |
| No. 3 rotor | Approx. 150 mL (with No. 3 cup) Clearance between rotor end and cup bottom: about 15 mm |
| Measurement accuracy and reproducibility | |
| ±10% ±1 digit of indicated value | |
| Reproducibility | ±5% * Calibrated according to JIS Z 8809:2011 standard liquids for calibrating viscometer * The rounding error resulting from resolution occurs |
| Rotor speed | 62.5 rpm |
| Max. continuous measurement time per measurement | |
| 100 s | |
| Display value hold function | |
| Value at end of measurement is retained | |
| Backlight function | Switchable backlight Time until auto-off: 60 s (when rotor is not operating and unit is powered from batteries) |
| Auto shutdown function (when an AC adapter is not used) | |
| If rotor is not turning and no controls are operated for 5 minutes, power is automatically shut off | |
| Resume function | Last selected rotor number setting is retained during power-off |
| Ambient conditions for use | |
| 5°C to 35°C, 10% to 90%RH (no condensation) | |
| Power requirements | Alkaline batteries LR6, Ni-MH rechargeable batteries, or AC adapter VA-05J (5 V to 7 V : rated voltage 6 V) |
| Current consumption | approx. 250 mA (at maximum torque) |
| Battery voltage check | Displaying battery status (4 steps) |
| Dimensions | 175 mm (H) × 77 mm (W) × 45 mm (D) (maximum) 175 mm (H) × 77 mm (W) × 40 mm (D) (without protruding parts) |
| Weight | Approx. 260 g (without batteries) |
| Supplied accessories | ||
| No. 1 rotor (dia. 24 mm × 53 mm × 166 mm) | SUS304 | 1 |
| No. 2 rotor (dia. 15 mm × 1 mm × 113 mm) | SUS304 | 1 |
| No. 3 rotor (dia. 45 mm × 47 mm × 160 mm) | SUS304 | 1 |
| No. 3 Cup (dia. 52.6 mm × 75 mm) | SUS304 | 1 |
| Rotor extension (in a tube) (900 mm; 300 mm × 3) | SUS304 | 1 |
| IEC LR6 (size AA) battery | 4 | |
| Instruction manual | 1 | |
| Viscosity measurement guide | 1 | |
| Inspection certificate | 1 | |
| Optional accessory | ||
| AC adapter | VA-05J | |
| Stand | VA-04 | |
Rion VT-06 – Datasheet
