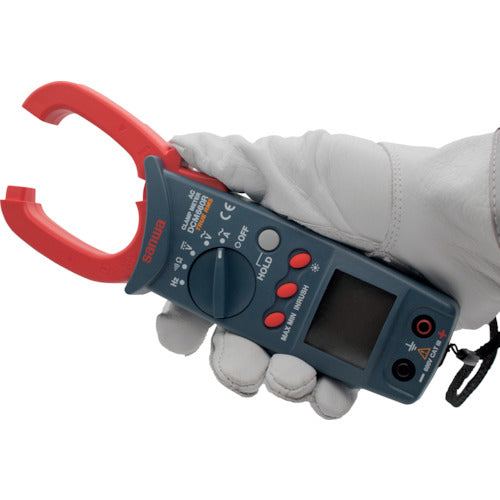

Sanwa DCM660R Clamp Meter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The DCM660R can be used in a CAT III environment and can measure a current of up to 660 Amperes. Since this instrument also has digital multimeter functionalities it can also measure AC+DC voltage, resistance, and frequency as well as perform continuity tests.
The device uses the double integration operation method and True RMS for AC measuring. The display on this device is a large 6600-count LCD display with backlight. The DCM660R has a safety design compliant with the IEC61010-1 standard.
Features Sanwa DCM660R Clamp Meter
- AC current measurable max. 660A
- True RMS
- Inrush current measurement
- Max/Min value hold
- Frequency measurement by clamping and using test lead
- Data hold, Auto power save
- LCD with back light
- Sampling rate : 3 times / sec. for numeral display
Specifications Sanwa DCM660R Clamp Meter
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| ACA | 66/660A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Frequency (A) | 660/6.6k/30k | ±(0.2%+1) | 0.1Hz | |
| Frequency (V) | 660/6.6k/66k/100k | ±(0.2%+1) | 0.1Hz | |
| Resistance | 660Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 30Ω Open voltage: approx. 1.2V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6600 |
| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 55 hrs.（Alkaline battery/Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 265g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
Optional Accessories
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
- Test lead : TL-21M, TLF-120
Sanwa DCM660R – Datasheet
