Description

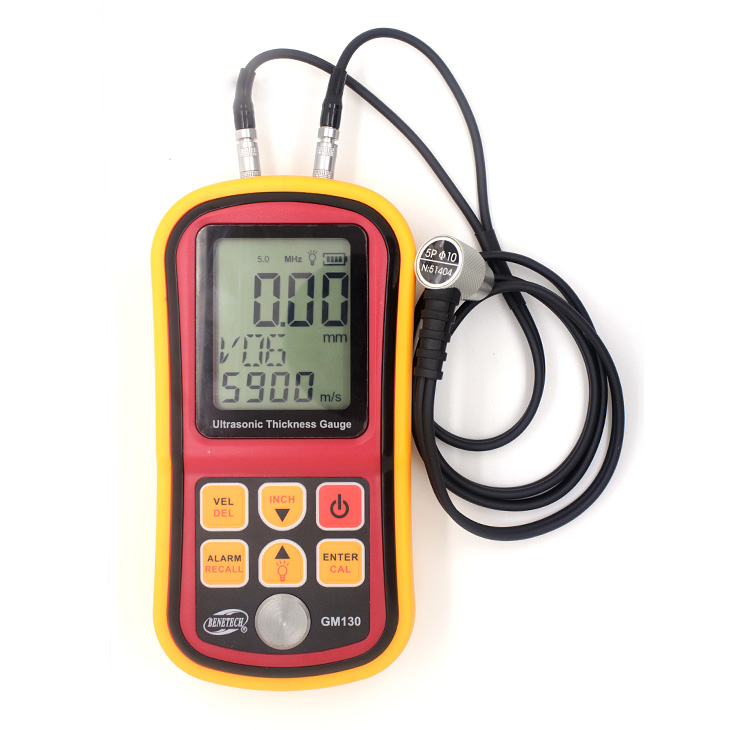

Benetech GM130 Ultrasonic Thickness Gauge
Karya Mandiri Techindo has a wide range of Benetech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.
This unit is widely used in various precise measurement for different hardware /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.
Features Benetech GM130 Ultrasonic Thickness Gauge
- Upper/lower alarm setting
- Data storage/deletion
- Measuring sound velocity
- LCD backlight display
- Low battery reminder
- Automatic shut-down
Specifications Benetech GM130 Ultrasonic Thickness Gauge
| Measuring range | 1.00 to 300.0mm(steel) | ||
| Accuracy | ±(1%H+0.1mm) H denotes the measured thickness | ||
| Working frequency | 5MHz | ||
| Resolution | 0.01mm(1.00 to 99.99mm) 0.1mm(100 to 300mm) | ||
| Minimum limit for tube measuring (steel) | φ15*2.0mm( φ6mm transducer) φ20*3.0mm( φ10mm transducer) | ||
Sound velocity range | 1000 to 9999m/s | ||
| Thickness≤25mm, accuracy of velocity:±1.25mm/Hx100% Thickness≥25mm, accuracy of velocity: ±5% | |||
| Operating environment | Operation temperature: 0 to 40℃ Relative Humidity: <90% Do not apply in violent vibration / erosive material | ||
| Avoid impact and humidity | |||
| Power supply | 1.5V AAA * 3 PCS | ||
| Weight | 223g | ||
| Size | 72*29*146mm | ||
Include:
- Ultrasonic Thickness Gauge*1
- φ10 Transducer (5MHz)*1
- φ6 Transducer (5MHz)*1
- Coupling agent (50ml)*1
- 4mm Sample block*1
- 1.5V AAA Alkaline battery*3
- English Instruction Manual*1
- Aluminium Packing Box*1
Benetech GM130 – Manual
