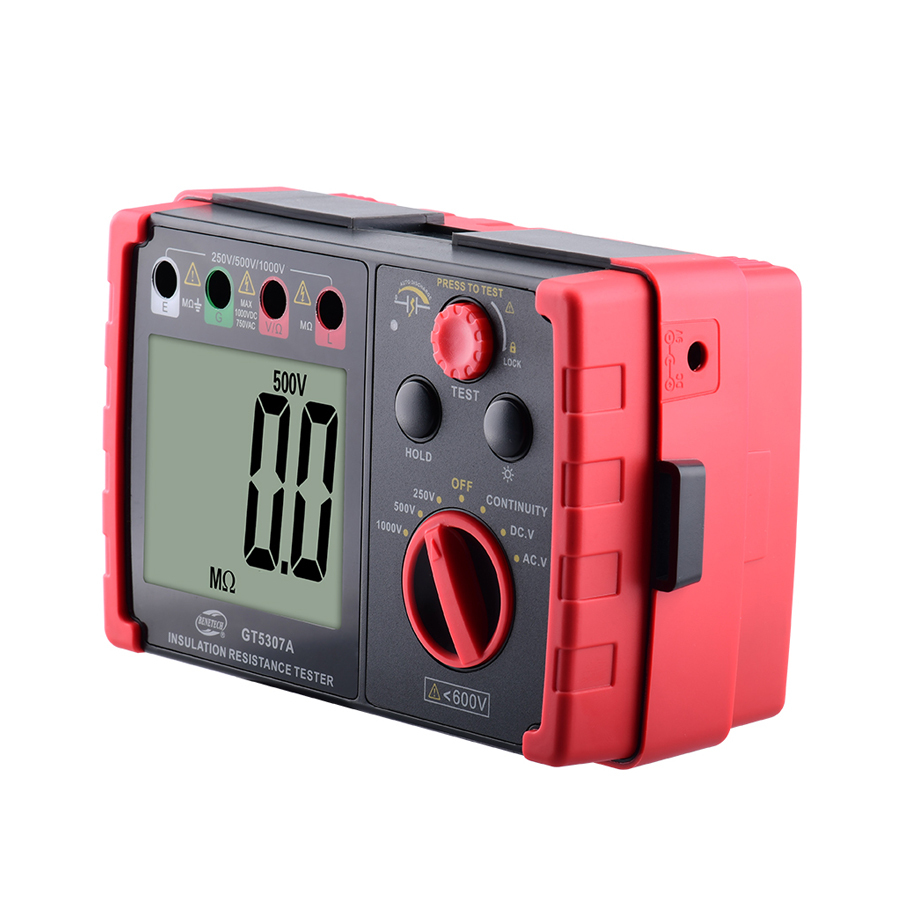

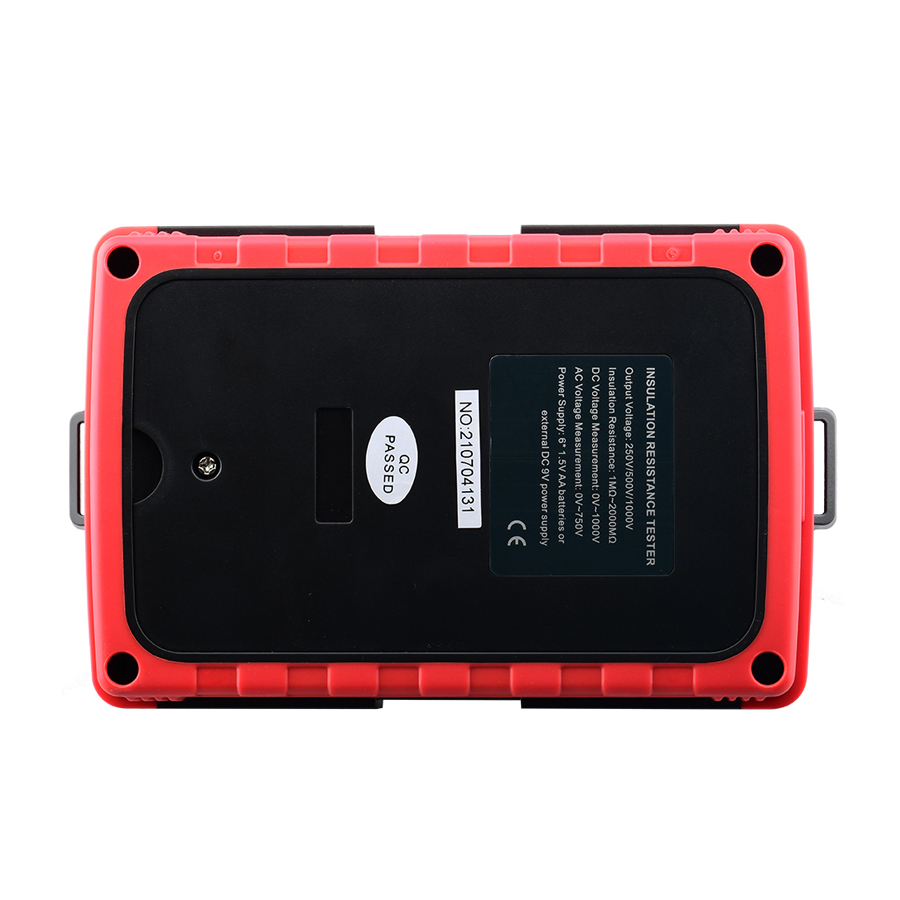

Benetech GT5307B Insulation/Continuity Tester

Category Brand

Benetech GT5307B Insulation/Continuity Tester

The instrument employs novel designs and large-scale integrated circuits to complete the measurement of parameters such as insulation resistance, DC voltage and AC voltage; it has comprehensive functions, high accuracy, stable performance, easy operation and reliable. It is suitable for measuring the insulation resistance of various electrical equipment and insulating materials such as transformers, motors, cables, switches, electrical equipment, etc., and for maintenance, testing and verification of various electrical equipment.

  • Insulation resistance measurement
  • AC measurements
  • DC measurement
  • Small resistance measurement
  • Direct detection of tested resistance

Product Description

Benetech GT5307B Insulation/Continuity Tester

Karya Mandiri Techindo has a wide range of Benetech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

This instrument applies a new design and a large-scale integrated circuit to complete the measurement of parameters such as insulation resistance, DC voltage, and AC voltage; it has comprehensive functions, high accuracy, stable performance, convenient and reliable operation. It is suitable for measuring insulation resistance of various electrical equipment and insulation materials such as transformers, motors, cables,switches, electrical appliances, etc., and for maintenance, testing and verification of various electrical equipment.

Features Benetech GT5307B Insulation/Continuity Tester

  • Measurement of insulation resistance
  • AC measurement
  • DC measurement
  • Small resistance measurement
  • Live detection of tested resistance
  • Short circuit protection of measured resistance
  • AC and DC automatic identification
  • Measurement data is locked
  • Polarization Index
  • Absorption ratio test
  • Automatic discharge
  • Low battery reminder
  • Large LCD screen digital display
  • External DC power supply DC9V 1.5A
  • 10M internal resistance measurement
  • Over limit alarm
  • Auto range
  • Red alarm light, buzzer alarm.
  • High voltage alarm
  • Test voltage display

Specifications Benetech GT5307B Insulation/Continuity Tester

Technical
parameters
Technical index
display
Large-screen LCD (up to 500 counts)
Over limit
indication
Hi: The mark appears on insulation resistance range
Auto range
Higher range: 500 counts Lower range:
1 count (only on insulation resistance range)
Sampling
Rate
2 times / second
Allowed
altitude
≤2000m (for indoor use)
Operation
environment
Temperature: 0℃-40 ℃ / Humidity: ≤85%
Operation
environment
Temperature: -20 ℃ -60 ℃ / Humidity: ≤90%
Overload
protection
Insulation resistance range: AC 1200V / 10 seconds
Voltage range: AC 720V / 10 seconds
Withstand
voltage
AC 6000V (50 / 60Hz) / 5 seconds (between circuit and periphery
Insulation
resistance
≥1000MΩ/ DC 1000V (between circuit and periphery)
power supply
DC9V (6×1.5V AA batteries)
Current
consumption
Approximately 1.5A (maximum) (normally maintained at approximately 50mA)
Battery Life
About 12 hours
Dimension
176x110x77mm







Benetech GT5307B – Manual


Produk asli Kami distributor langsung Benetech . Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilaya indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

BENETECH

Model

GT5307B

Made In

China

Weight

1,5 kg

Accessories Included

Insulation Continuity Tester
1.5V AA battery
Test lead
Crocodile clip
User's manua
Strap
Cloth bag
