CEIA SMD601 Plus Most sensitive Multi-Zone Metal Detector

Karya Mandiri Techindo has a wide range of CEIA products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The SMD601 Plus is a highly sensitive Walk-Through Metal Detector. A full-height light bar displays the location of detected metal masses en route. This results in rapid threat identification and reduces or eliminates the need for manual searching. The SMD601 Plus detects even the smallest metal objects anywhere on or inside the body.

Fitur CEIA SMD601 Plus Most sensitive Multi-Zone Metal Detector

Most sensitive WTMD, fully compliant with NIJ-0601.02 and NIJ-0601.03 Standards
Fast and accurate analysis of all body parts of the transit person, from shoe height to the crossbar
Accurate targeting of individual and multiple metal targets
Exceptional immunity to external interference
New mechanical structure with high level of protection
Integrated correctional profiling system (optional)
Unmatched reliability

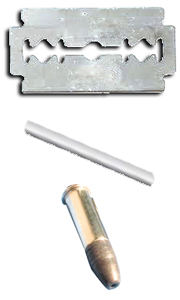

Ultra-High Sensitivity capability. Examples of additional detectable targets: Disposable Razor Blades; Special metal items (e.g. AISI 300 series Stainless Steel); Bullets

Fully compliant with the NIJ-0601.02 and NIJ-0601.03 standards

The SMD601 Plus further extends the detection sensitivity of the previous SMD601 to metal threats before considered undetectable due to their minimal dimensions and metal composition similar to the ones specified in the new NIJ-0601.03 Standard.

Accurate detection of all metallic threat items

Very accurate pinpointing of individual and multiple metal targets
Quick, accurate analysis of all parts of the body of people in transit, from the shoe level to the crossbar
Built-in programs to screen visitors and staff for weapons and contraband

New certified ip66 control unit enclosure

Total compatibility with previous control units
Robust structure through the use of high-performance polymers for the construction of housing
Waterproof / Dustproof: IP66 compliant (IEC 60529)
Exceptional impact resistance at low and high temperatures and resistance to corrosion from atmospheric agents
Display made with specific polymer to improve the visibility of the LEDs by increasing the definition and clarity

Unique alarm signalling

20 vertical localization zones
High visibility of the control unit and of the zone indication, independent from the operator position and the installation environment
Flexible Acoustic Alarm Signalling System: 10 Continuous and Pulsed Tones; 34 Special Sounds
10 Alarm Volume Levels
High Precision Transit Counter: In-Bound transits; Out-Bound transits; Alarm rate

Most powerful and versatile security features

Over 40 built-in Security Programs: Up to 22 pre-programmed Security Programs; Up to 20 user programmable Security Programs
Chip Card system for fast, simple and secure parameter changes (i.e. alarm volume and tone, counter reading, etc.) and security level selection.
Any security standard can be enhanced with selectable random alarm probability

Chip card system

The system allows Security Management to set the Security Level quickly, reliably and without having to program the device in any way.

Spesifikasi CEIA SMD601 Plus Most sensitive Multi-Zone Metal Detector

Gate structure	State-of-the-art, robust and washable panels
	Antivandalic and antitampering IP66 control unit
	Embedded high precision transit counters (2-beam photocells)
	Antitampering ON/OFF switch
	Protected against aging, weather and wear
Operational features	High discrimination and transit flow rates five or more times greater than other metal detection systems
	Quick reset time as short as 0.2 seconds for high throughput rate
	Very high detection speed (up to 15 m/sec.)
	Built-in operational functional verification (OFV)
	One-touch key reading of inbound, outbound and Security Level Data
Quality	Continuous self diagnostic system
	Proven reliability
	No periodic re-calibration and preventive maintenance required
	No scheduled maintenance
	Fully digital design
Alarm signalling	Multi-zone display bar for “height on person” localization
	20 vertical localization zones
	2 display bars programmable as zone indicators and/or pacing lights
	Specific shoe alarm color indication
	Green and red metering signals proportional to the mass of the detected target
	10 selectable continuous and pulsed tone plus 34 special tones
	10 selectable sound intensities ranging from 0 to 90 dbA at 1m
	Random alarm capability with independent counters, alarm tone and alarm volume
	Met-Identity technology (separate Ferrous and Non-Ferrous alarm signaling)
Type of signalling	Fixed or proportional to the mass in transit – visible from 6m under lighting of 4000lux
	20 x4 distinct zones (20×2 entry side and 20×2 exit side)
Programming	Over 40 built-in Security Programs
	Remote via Infrared Remote Control Unit, BT or Ethernet 10/100 base T (option) interface
	Security level: International Standard (IS) command / Chip card
	Local by Control Unit alphanumeric display and keyboard
	Programming and chip card access protected by user and super-user passwords
Installation data	Automatic synchronisation between two or more metal detectors with distance of down to 5 cm without the use of external cables
	One Touch Automatic Self Installation (OTS)
Certification and compliance	Fully compliant with the NIJ-0601.02 Standard requirements
	Complies with the applicable Standards for Law Enforcement and Correctional Facilities
	Compliant with applicable International Standards for electrical safety and EMC
	Compliant with the applicable electromagnetic Standards on Human Exposure and Pacemaker Safety
	Harmless to magnetic media (CD, tapes, etc.)
Environmental data	Powered by safe low voltage DC through external switching power supply adapter
	Power Supply : 100…277V~ ±10%, 47…63Hz, 50 VA typical consumption
	Operating temperature: -20°C to +65°C (-37°C to +70°C upon request)
	Storage temperature: -37°C to +70°C
	Relative humidity: 0 to 95% (without condensation)
Comprehensive support	CEIA provides full operational and technical training support by certified personnel either at CEIA facility or at customer site

CEIA SMD601 Plus – Datasheet
