Product Description

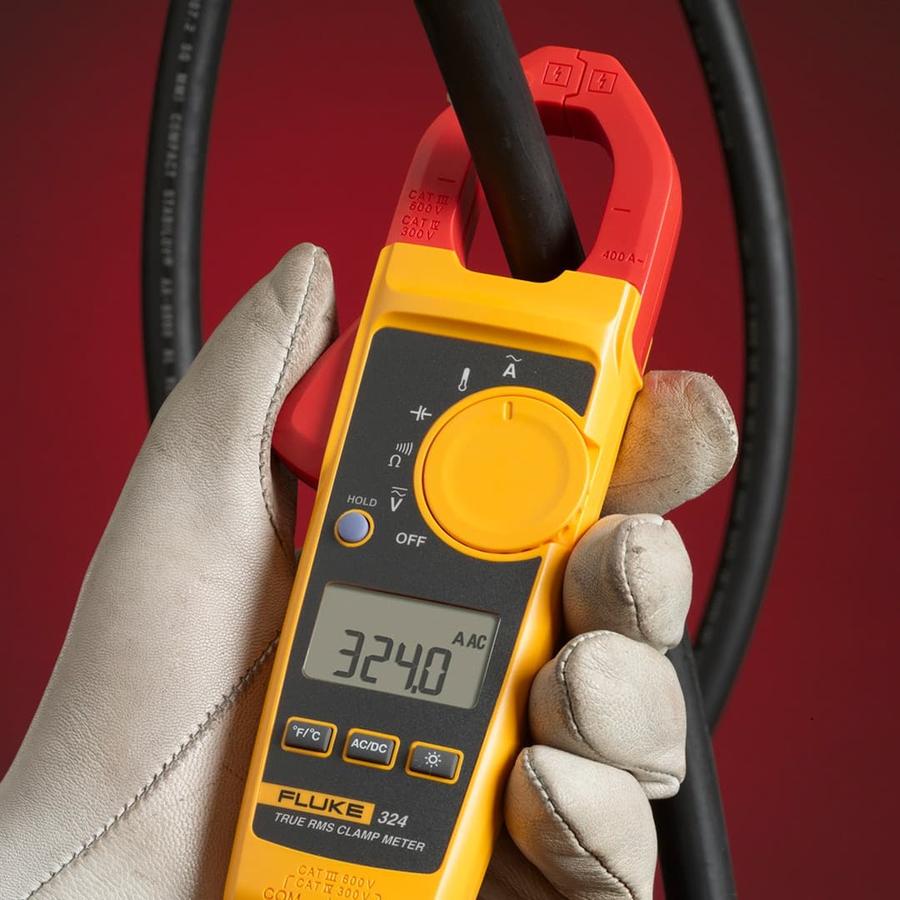

Fluke 324 True RMS Clamp Meter
Karya Mandiri Techindo has a wide range of Fluke products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The Fluke 324 True RMS Clamp Meter is a tool used to verify and measure load current, AC voltage and continuity of circuits, switches, fuses and contacts. It combines common electrical measurements with the ability to measure temperature and capacitance, making the Fluke 324 the ultimate troubleshooter for commercial and residential electricians.
The clamp meter is a very convenient measuring instrument that makes it easy to measure electric current without disturbing the electrical circuit.
Measurement capability
- 400 A ac current measurement
- 600 V ac and dc voltage measurement
- True-rms ac voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 4 kΩ with continuity detection
- Temperature and capacitance measurement
Features Fluke 324 True RMS Clamp Meter
- Slim, ergonomic design
- Large, easy to read backlight display
- CAT IV 300V/CAT III 600 V safety rating
- Hold button
- Two-year warranty
- Soft carrying case
Specifications Fluke 324 True RMS Clamp Meter
AC Current | Range | 40.0/400.0A |
Accuracy | 1.5% ± 5 digits (45 Hz to 400 Hz) Note: Add 2% for position sensitivity |
|
AC Voltage | Range | 600.0V |
Accuracy | 1% ± 5 digits | |
DC Voltage | Range | 600.0V |
Accuracy | 1% ± 5 digits | |
Resistance | Range | 400.0Ω/4000Ω |
Accuracy | 1% ± 5 digits | |
Continuity | ≤ 30 Ω | |
Capacitance | 100.0 µF to 1000 µF | |
AC Response | True-RMS | |
Backlight | Yes | |
Data Hold | Yes | |
Contact Temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
Physical Specifications |
Size | 8.1 x 2.95 x 1.34 inches (207 x 75 x 34mm) |
Max wire diameter | 30 mm (600 MCM) | |
Weight | 208g | |
Contact Rating | CAT III 600V CAT IV 300 V |
Included
- Test cable
- Soft box
- User manual
Video
Fluke 324 – Datasheet
