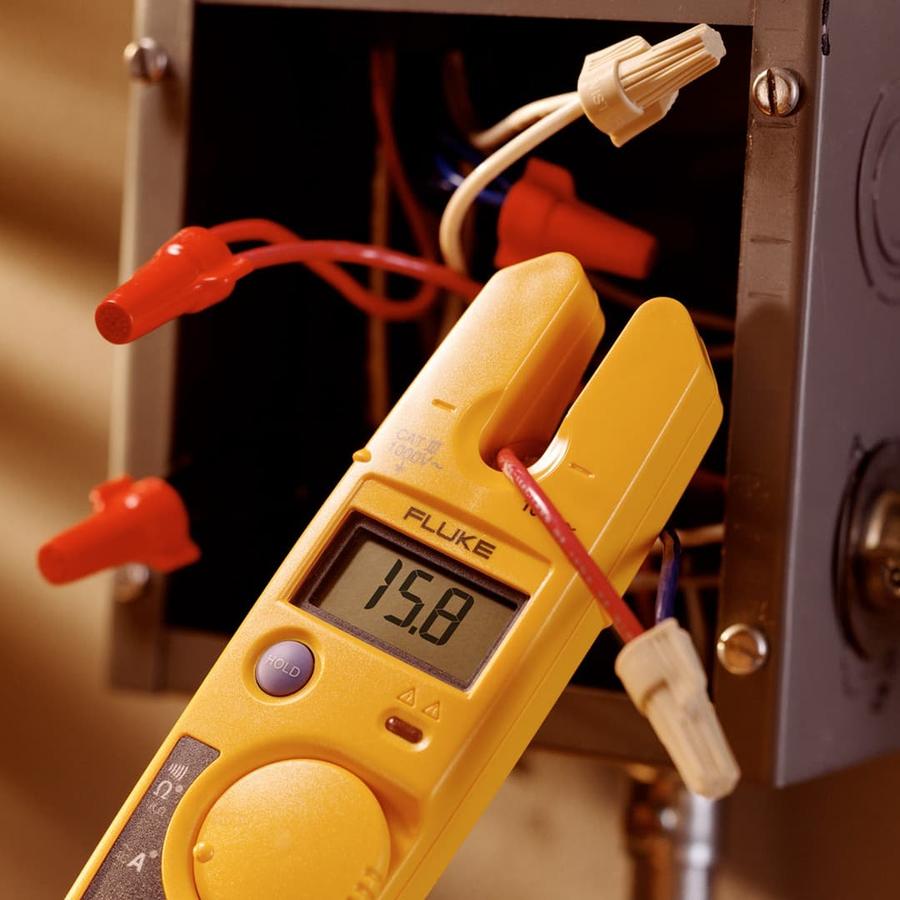

Fluke T5-1000 Voltage Continuity & Current Tester
Karya Mandiri Techindo has a wide range of Fluke products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Measure current up to 100 A without breaking the circuit with OpenJaw™ design. The T5-1000 Electrical Tester is a versatile troubleshooting tool to carry to every job site. Use it to check voltage, continuity, and current–all with one compact tool.
How to use the T5-1000
Just select volts, ohms, or current and the tester does the rest. The electrical tester auto-selects between AC and DC voltage up to 1000 V.
Plus, the OpenJaw™ design allows for fast and easy current measurements without needing to make metallic contact, just slide a wire into the open fork. The continuity beeper offers a quick go/no-go tests, resistance measurements to 1000 Ω.
The electrical tester comes with detachable Slim Reach probe tips so you can easily work in tight spaces. Or hand free work when you use the test lead holder to make the meter an “extended handle” for the probe.
Key safety features
An integrated protection circuit allows the tester to stay connected to a voltage source longer than a solenoid tester. The T5-1000 Electrical Tester also boasts:
A CAT III 1000V, CAT IV 600 V rating
Withstands a 10 ft. (3 m) drop.
The T5-1000 has and Auto-off mode to conserve battery life. The unit fits into an optional holster that attaches to a belt and neatly stows test leads.
Fluke T5-1000 vs T6-1000
The T5-1000 uses the OpenJaw™ design to measure current without metallic contact, just slide the wire in the open fork and the T5 will do the rest. It also measures voltage and continuity with the test leads. The T6-1000 (https://www.fluke.com/en-us/product/electrical-testing/basic-testers/fluke-t6-1000) is designed to use FieldSense™ technology to display both current and voltage simultaneously.
Features Fluke T5-1000 Voltage Continuity & Current Tester
- Automatically measure AC and DC voltage up to 1000 V with precise digital resolution
- Measure current up to 100 A without breaking the circuit with OpenJaw™ design
- Troubleshoot resistance problems up to 1000 Ω
- Work in tight spaces with detachable Slim Reach probe tips
Specifications Fluke T5-1000 Voltage, Continuity and Current Tester
|12.9 mm (0.5 in)
|Max wire size
|1/0 THHN Cable
|Current range AC rms
|0 to 100.0 A
|Accuracy AC current (50/60 Hz)
|3% ± 3 counts
|Voltage range AC/DC
|0 to 1000 V
|1.5% ± 2 counts
|1% ± 1 count
|0 to 1000 Ω
|Continuity beeper threshold
|On at < 25 Ω, off at > 400 Ω
|Volts indicator LED threshold
|Guaranteed on by 30 V AC
|-10°C to 50°C
|-30°C to 60°C
|Humidity (without condensation)
|0% to 95% (5°C to 30°C);
|0% to 75% (30°C to 40°C);
|0% to 45% (40°C to 50°C)
|2000 meters max
|0.1 x (specified accuracy)/°C (< 18°C or> 28°C)
|IEC 61010-2-032, IEC61010-2-033: CAT IV 600 V / CAT III 1000 V, 100 A ac
|1000 V between any terminal and earth ground
|Mechanical and General Specifications
|30.5 x 51 x 203 mm
|200 hour zinc chloride, 400 hour alkaline
|2 x AA
|Low battery indicator
|Current sensor opening
