Koden KDS-6000BB Digital Sonar System (Broadband)

KDS-6000BB is world first Broadband searchlight sonar. The 80 to 90 kHz frequency or 130 to 210 kHz frequency can be selected depending on the Transducer. The most suitable output frequency can be selected in 0.1 kHz step depending on the fishing method and the target species from closer range to longer range. Selection of frequency is as easy and quick as tuning a radio. Flexible selection of frequency enables the user to stay away from interference with the sounders on the other vessels.

Product Description

Koden KDS-6000BB Digital Sonar System (Broadband)

The world’s first Broadband searchlight sonar Added motion sensor function and newly added short stroke model.

Features Koden KDS-6000BB Digital Sonar System (Broadband)

  • Advanced Broadband Technology

KDS-6000BB is world first Broadband searchlight sonar. The 80 to 90 kHz frequency or 130 to 210 kHz frequency can be selected depending on the Transducer. The most suitable output frequency can be selected in 0.1 kHz step depending on the fishing method and the target species from closer range to longer range. Selection of frequency is as easy and quick as tuning a radio. Flexible selection of frequency enables the user to stay away from interference with the sounders on the other vessels.

  • Digital signal processing enables high resolution images

Both of high resolution in closer range and noise reduction performance in longer are materialized at high level with newly-developed digital signal processing, KDP-V (Koden Digital Processing series V).

  • High scan speed for fast fish detection

Scanning speed is remarkably increased by adding 15°and 20° in scanning sector angle steps. These steps are not eguipped with the current model. lt can detect surrounding fish schools quickly.

  • Four different presentation modes available for various fishing scenes
  1. Sonar mode is useful for searching around the ship.
  2. Off-center mode helps to show more information of ahead.
  3. Echo sounder mode for displaying image like fishfinder is also available.
  4. Bottom scan mode can display reflected echoes from underwater and seabed in a cross selection image.
  • User friendly operation with Conditional Memory keys

Six of CM(Condition Memory) keys offer the user to preset all the current settings and recall them instantly. It is like six sonars in one unit.

  • Black Box type

KDS-6000BB comes in black box. The user can select a monitor from the market or the optional 17 inch LCD monitor.

  • Space-saving Hull unit

Short stroke Hull unit available for small space.

  • Motion sensor

The stabilizer function reduces the disturbance of sonar display caused
by the pitch and roll of the vessel .(For AS model)

Screen Image



Spear squids at the sea bottom at 130.4 kHz
Spear squids at the sea bottom at 130.4 kHz
Tunas attacking school of sardines at 140.0 kHz
Tunas attacking school of sardines at 140.0 kHz
Pilchards<br> at 140.0 kHz
Pilchards at 140.0 kHz

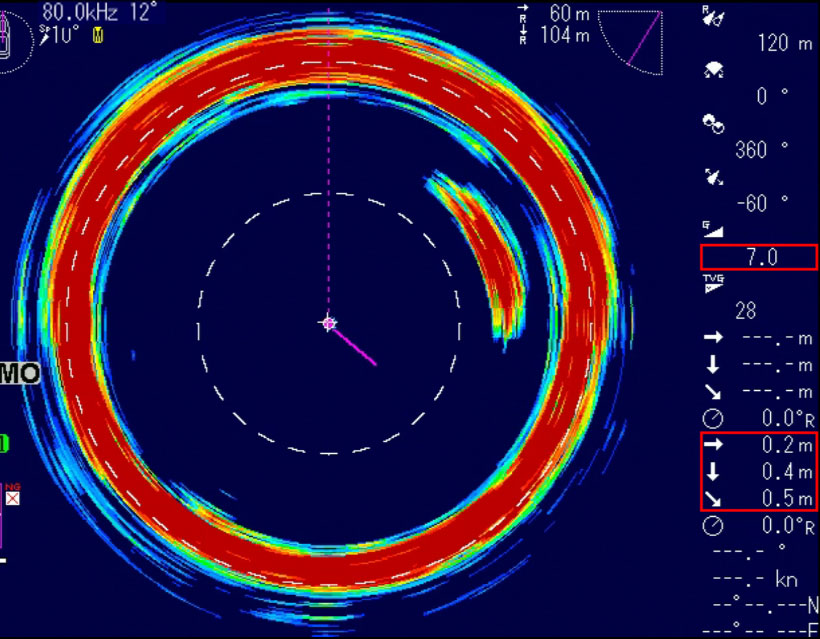

Sardine at 80.0 kHz
Sardine at 80.0 kHz

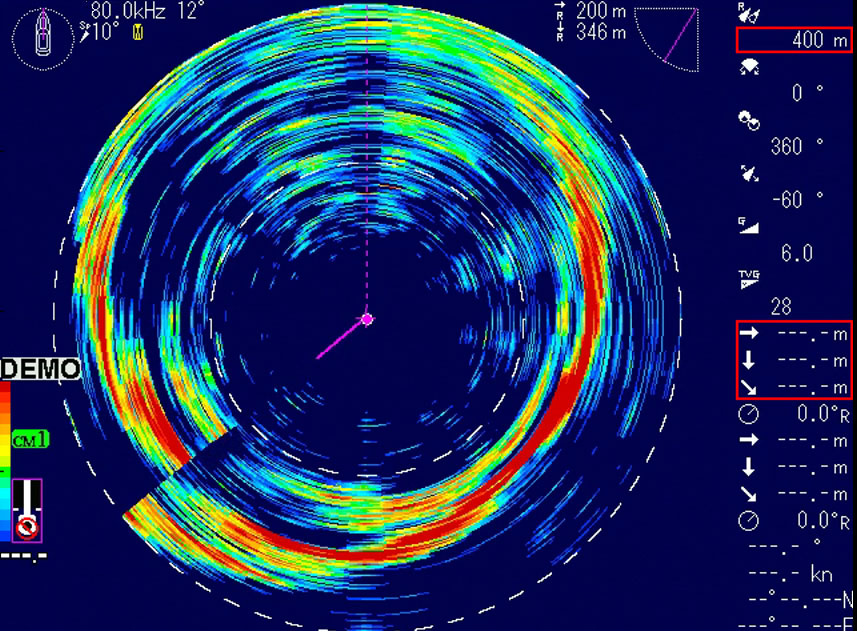

Red bream at 80.0 kHz
Red bream at 80.0 kHz

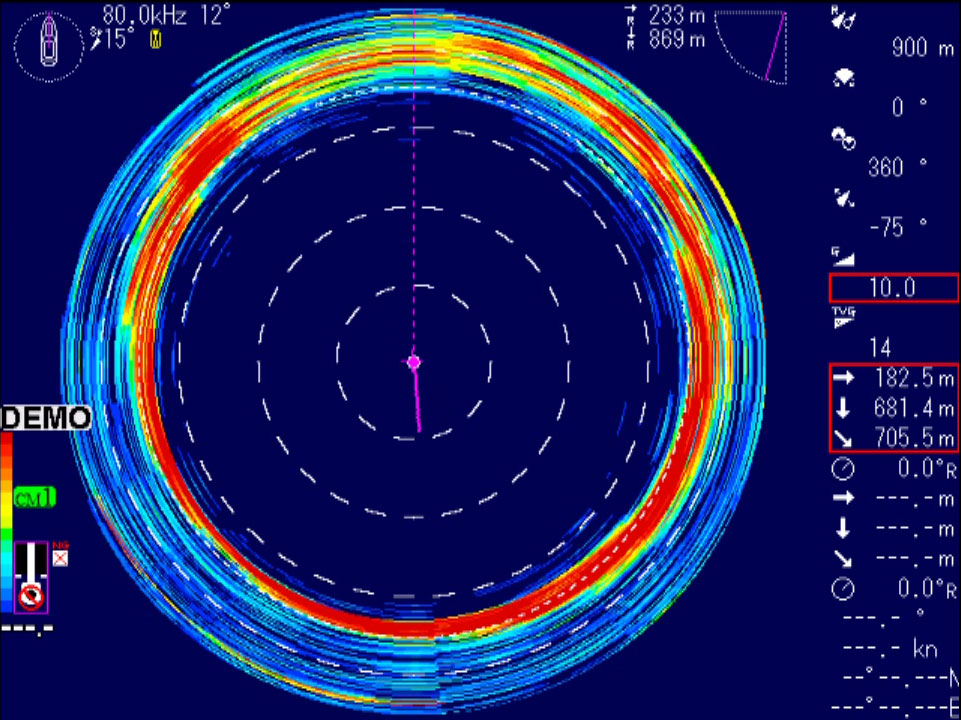

Depth of 680m at 80.0 kHz
Depth of 680m at 80.0 kHz

Specifications Koden KDS-6000BB Digital Sonar System (Broadband)

Processor
Presentation colors 8 colors,16 colors
Basic range 10 to 1000 m
30 to 3000 ft
10 to 600 fm
10 to 700 l.fm
(8 ranges can be set to users choice)
Dimensions Processor unit:
320(H)× 320(W)× 122(D)mm
Operation unit:
100(H)×324(W)×54(D)mm
Weight 5.1 kg
Power supply 10.8 to 31.2 VDC
Hull unit
Scanning sector angles
(Sonar mode)
5°step, 10°step, 15°step, 20°step
Scanning sector angles
(Bottom scan mode)
3°step, 5°step
Operating temperature +5° to -90°(1°step)
Output power (RMS) 1.5 kW
Transducer (1) DHU-6302-80 kHz
(2) DHU-6302-BRD.B
(3) DHU-6302-BRD.B(AS)
Output frequency (1) 80 to 90 kHz
(2)(3) 130 to 210 kHz
TD stroke 150 to 380 mm
Dimensions 1.756(H)× 280(W)× 280(D)mm
Weight 41 kg
Power supply 10.8 to 31.2 VDC







Koden KDS-6000BB – Brochure


Produk asli Kami distributor langsung KODEN. Harga murah dan berkualitas bergaransi tentunya. dapat di kirim ke seluruh wilayah indonesia.

Dalam pengiriman produk yang pelanggan beli, sebelumnya sudah kami cek untuk memastikan produk dalam keadaan baik dan siap kirim.




Additional Information

Brand

Koden

Model

KDS-6000BB

Made In

Japan
