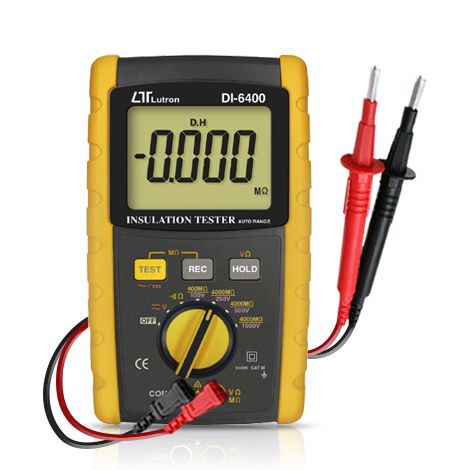

Lutron DI-6400 Insulation Tester

Features Lutron DI-6400 Insulation Tester :

  • Digital display, easy and correct read-out.
  • Auto-range and multi-function for insulation measurement of 4/40/400/4000 MΩ ( 100 V, 250 V, 500 V, 1000 V ).
  • Insulation measurement with auto discharge function, safety
  • Build in the ACV & DCV & OHMS measurement function.
  • Precision 400 ohm & 4000 ohm auto-range easy for measuring low resistance such as motor windings, relay coils etc
  • A continuity beeper is equipped in OHM range.
  • Data hold function to lock the current reading.
  • Lock & Test functions offer worker’s safety and easy operation.
  • 77 X 49 mm (1.06″ height) large LCD display.
  • Battery operating easily to carry with user.
  • LCD display allows clear read-out even at bright place.
  • LSI-circuit provides high reliability and durability.
  • Built-in over-input and low battery indication.
  • Overload protection for each range.
  • Automatic zero adjust & automatic circuit discharge.
  • Durable & portable housing case with the front protective cover
  • RS-232 computer interface.
  • Powered by AA DC 1.5V X 8 batteries.

Specifications Lutron DI-6400 Insulation Tester :

Measurement Insulation 4/40/400 MΩ /100 V
4/40/400/4000 MΩ /250 V
4/40/400/4000 MΩ /500 V
4/40/400/4000 MΩ /1000 V
DCV 600.0 V
ACV 600.0 V
OHM 400.0/4000 Ω
Sampling Time 0.4 second.
4000M ohm Max. approx. 4.0 second.
Respond Time
Zero Adjustment Automatic adjustment.

Meg ohm ( Insulation )
Range Accuracy Resolution
4/40/400/4000 M ohm ± ( 3% + 5d) 1 K/10 K/0.1 M/1 M ohm
(100V/250V/500V/1KV) < 2000 M ohm
± ( 5% + 5d)
≧ 2000 M ohm
< 4000 M ohm
OHMS
Range Accuracy Resolution Open Circuit
Voltage
400/4000 ohm ± ( 1% + 2d) 0.1/1 ohm Approx. 4.7 V
* Overload Circuit Protection AC/DC 500V (within 20 sec)
DC VOLTAGE
Range Accuracy Resolution Input Impedance
600 DCV ± ( 1.5% + 2d) 0.1 DCV 10 M ohm
* Overload Circuit Protection AC/DC 600V
AC VOLTAGE
Range Accuracy Resolution Input Impedance
600 ACV ± ( 1.5% + 2d) 0.1 ACV 10 M ohm
* Overload Circuit Protection AC/DC 600V

Standard Accessories :

  • Instruction Manual 1 PC
  • Test leads ( TL-88 ) 1 set
  • Heavy duty alligators ( AL-05 )

Optional Accessories :

  • RS232 cable, UPCB-02
  • USB cable, USB-01
  • Data Acquisition software, SW-U801-WIN





Lutron DI-6400 Datasheet
