Product Description

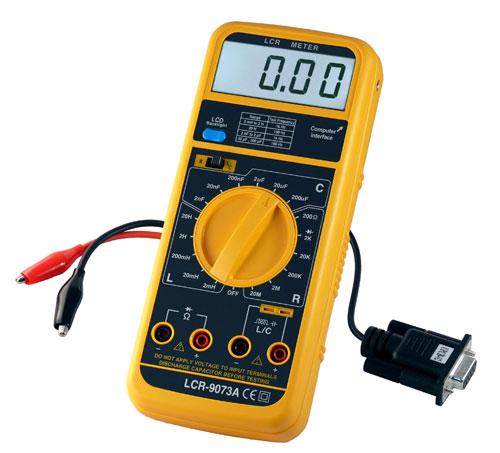

Lutron LCR-9073A LCR Meter
Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron LCR-9073A LCR Meter
- Professional LCR meter, used the LSI-circuit and exclusive microprocessor circuit, high reliability and High measuring accuracy
- Wide ranger measurement for Inductance, Capacitance and Resistance measurement
- Test frequency : 100 Hz, 1 KHz
- Input overload protection
- Rotary switch function selector
- RS232/USB Computer interface
- Diode test
- Large LCD display with backlight
- Built-in low battery indicator
Specifications Lutron LCR-9073A LCR Meter
- Display:
º 67 mm x 27 mm large LCD display
º 17 mm x 9 mm, digit size - Measurement :
º Inductance ( L ) : 5 ranges : 2 mH to 20 H
º Capacitance ( C ) : 6 ranges : 2 nF to 200 uF
º Resistance ( R ) : 6 ranges : 200 ohm to 20 Mega ohm
º Diode test - Circuit: Custom one-chip of microprocessor LSI circuit
- Sampling Time: Approx. 0.4 second
- Data Output: RS 232/USB PC computer interface
- Over Input Indication: Show ” 1 ” indicator
- Operating Temperature: 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉)
- Operating Humidity: Less than 80% RH
- Power Supply: Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent
- Power Consumption: Approx. 12 mA
- Weight: 314 g/0.69 lb
- Dimension: 204 x 90 x 36 mm ( 8.0 x 3.5 x 1.4 inch )
Accessories Included:
- Instruction manual…………… 1 PC
- Test alligator clips……………. 1 Pair
Optional Accessories:
- Data Acquisition software, SW-801-WIN
- USB cable, USB-01
- RS232 cable, UPCB-02
Lutron LCR-9073A – Datasheet
