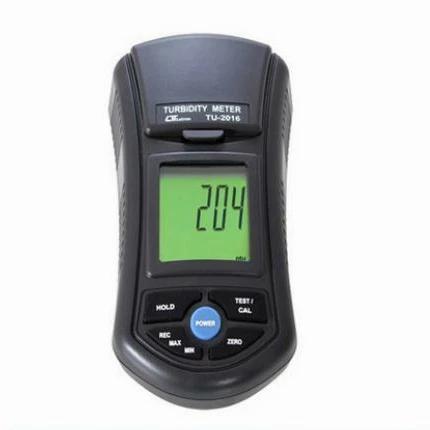

Lutron TU-2016 Turbidity Meter

Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The Tu-2016 is a turbidity meter with wide and auto measurement range: 0 to 1,000 NTU. Data hold function, Records Max/Min reading with recall, Auto Power Off. Included, Testing bottle with 0 NTU standard solution and Testing bottle with 100 NTU standard solution.

Features Lutron TU-2016 Turbidity Meter

Designed to meet ISO 7027
NTU ( Nephelometric TURBIDITY Unit ) measuring unit
Wide and auto measurement range : 0 to 1,000 NTU
High resolution : 0.01 NTU/1 NTU
The unique optics structure, enables the instrument to read low value of TURBIDITY to the high level up to 1,000 NTU
Four operation buttons and two calibration points, easy operation
Jumbo LCD, easy readout
Microprocessor circuit assures maximum possible accuracy, provides special functions and features
Battery operated for field and on-site testing convenience
Data hold function for freezing the desired value on display
Records Maximum and Minimum readings with Recall
Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation
Auto shut off is available to save battery life
Application : Test municipal water, food and beverage water, or other aqueous solution where fluid clarity is important

Specifications Lutron TU-2016 Turbidity Meter

Circuit: Custom one-chip of microprocessor LSI circuit
Display: LCD size : 41 mm x 34 mm
Range: 0.00 to 50.00 NTU, 50 to 1,000 NTU
Resolution: 0.01 NTU/ 1 NTU
Accuracy: ± 5 % F.S. or ± 0.5 NTU, which ever is greater
Light source: LED, 850 nm
Detector: Photo diode
Standard: Meet ISO 7027
Response time: Less than 10 seconds
Sample volume needed: 10 mL
Data Hold: Freeze the display reading
Memory Recall: Maximum & Minimum value
Display Sampling Time: Approx. 1 second
Power off: Auto shut off saves battery life or manual off by push button
Calibration points: 0 NTU, 100 NTU.
Operating Temperature: 0 to 50 .
Operating Humidity: Less than 85% R.H.
Power Supply: DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent
Power Current:
º Stand by: Approx. DC 3.5 mA
º Testing: Approx. DC 36 mA
Weight: 320 g/0.70 LB. @ Battery is included
Dimension: 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)

Accessories Included:

Testing bottle with 0 NTU standard solution………….1 PC
Testing bottle with 100 NTU standard solution……… 1 PC
Empty testing bottle……………………………………….. 2 PCs
Clean cloth…………………………………………………….1 PC
Clean solution ( Distill water )…………………………….1 bottle
Hard carrying case, CA-08…………………………………1 PC

Optional Accessories:

Testing bottle with 100 NTU standard solution, TU-100NTU
Testing bottle with 0 NTU standard solution, TU-0NTU
Empty testing bottle, 0601

Lutron TU-2016 – Datasheet
