Description

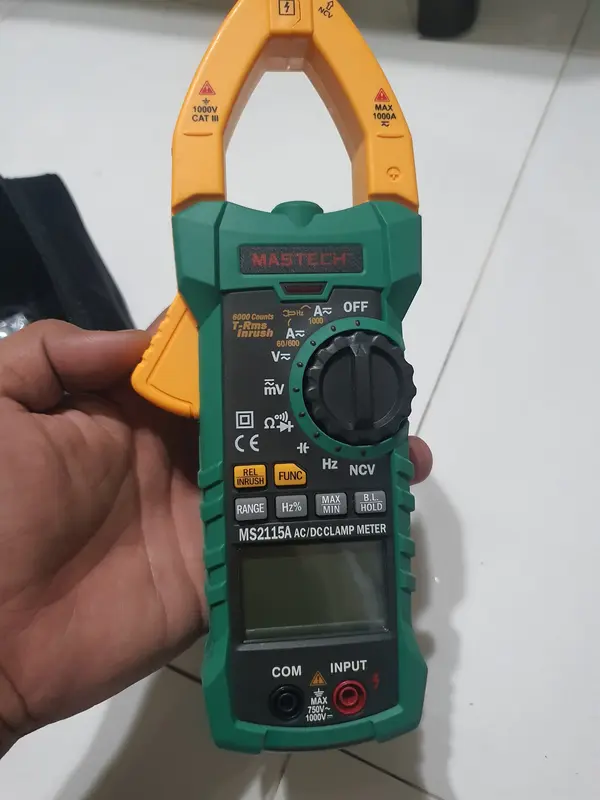

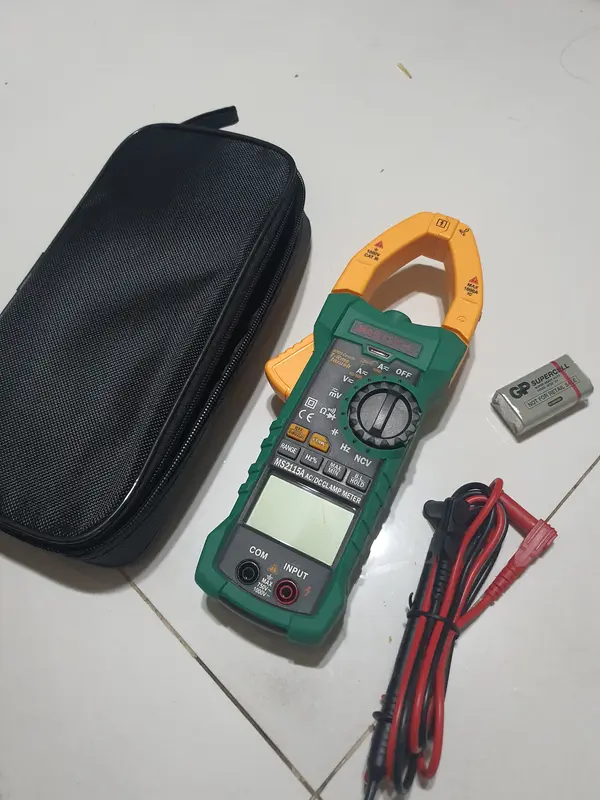

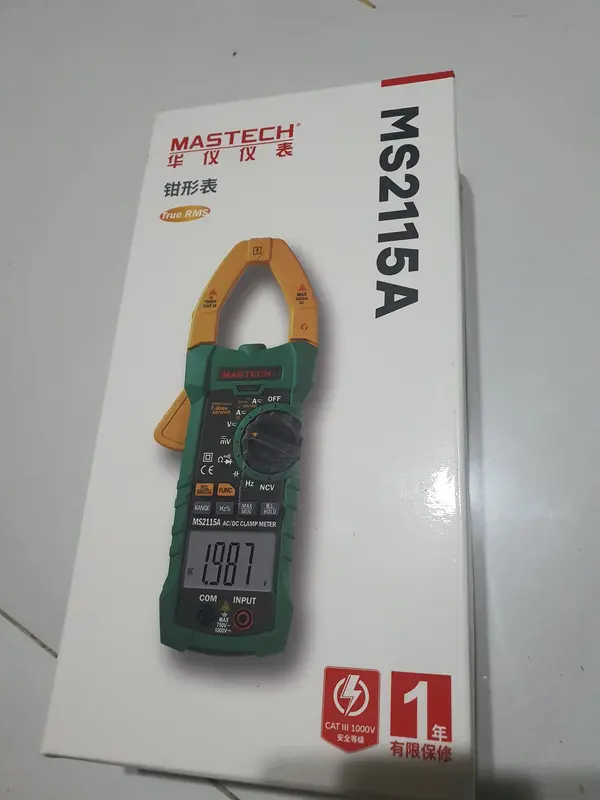

Mastech MS2115A Clamp Multimeter AC/DC Current True RMS
The MASTECH MS2115A is a robust earth resistance clamp meter designed to measure earth resistance without the need to disconnect any grounding connections. Ideal for electrical professionals and maintenance engineers, this meter ensures safety and reliability while monitoring grounding systems in various environments.
Features Mastech MS2115A Clamp Multimeter:
- Multifunctional Measurement: Measures AC/DC voltage, AC/DC current, surge current, resistance, capacitance, frequency, and duty cycle.
- Auto and Manual Ranging: Offers both auto and manual ranging options to suit different measurement needs.
- Max Display: 6000 counts for clear readings.
- True RMS: Ensures accurate readings for both linear and non-linear loads.
- Non-Contact Voltage (NCV) Detection: Safely detect live wires and voltage presence without physical contact, ensuring user safety.
- Data Hold: Freezes the displayed measurement, making it easier to record results.
- Max/Min: Maximum and minimum values can be held on the screen.
- Relative Measurement: Eliminate low resistance or impedance on the test leads during measurements.
- Backlight and work light: Ensures easy reading in low-light conditions.
- Safety Certified: Rated CAT III 1000V, CAT IV 600V, providing safe operation in diverse electrical environments.
- Additional Features: Includes continuity buzzer, diode test, auto power off, and low battery display.
Specification Mastech MS2115A Clamp Multimeter:
| Specifications | Range | Resolution |
| DC Voltage | 60mV/600mV/6V/ 60V/600V/1000v | 0.01mV/0.1mV/0.001V/ 0.01V/0.1V/1V |
| AC Voltage | 60mV/600mV/6V/ 60V/600V/750v | 0.01mV/0.1mV/0.001V/ 0.01V/0.1V/1V |
| DC Current | 60A/600A/1000A | 0.01A/0.1A/1A |
| AC Current | 60A/600A/1000A | 0.01A/0.1A/1A |
| Resistance | 600Ω/6kΩ/60kΩ/ 600kΩ/6MΩ/60MΩ | 0.1Ω/0.001 kΩ/0.01 kΩ/0.1 kΩ 0.001 MΩ/0.01 MΩ |
| Capacitance | 10nF/100nF/1000nF/10μF/ 100μF/1000μF/10mF/100mF | 0.001nF/0.01nF/0.1nF/0.001μF/ 0.01μF/0.1μF/0.001mF/0.01mF |
| Frequency(A) | 100Hz/1000Hz | 0.01Hz/0.1Hz |
| Frequency(V) | 100Hz/1000Hz/10kHz | 0.01Hz/0.1Hz/0.001kHz |
| Frequency (Hz/Duty) | 10Hz/100Hz/1000Hz/10kHz 100kHz/1000kHz/10MHz | 0.001Hz/0.01Hz/0.1Hz/0.001kHz 0.01kHz/0.01kHz/0.1kHz/0.001MHz |
| Duty Cycle | 0.1%~99.9% | 0.1% |
Mastech MS2115A Datasheet
