Mastech MS2115A Earth Resistance Clamp Meter
Karya Mandiri Techindo has a wide range of Mastech products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The MASTECH MS2115A is a robust earth resistance clamp meter designed to measure earth resistance without the need to disconnect any grounding connections. Ideal for electrical professionals and maintenance engineers, this meter ensures safety and reliability while monitoring grounding systems in various environments.
Features Mastech MS2115A Earth Resistance Clamp Meter
- Auto Power Off
- Low Battery Display
- MAX/MIN
| Current | |
|---|---|
| AC | 1000A |
| DC | 1000A |
| Voltage | |
|---|---|
| AC | 750V |
| DC | 1000V |
Specifications Mastech MS2115A Earth Resistance Clamp Meter
| Specifications | Range | Resolution |
| DC Voltage | 60mV/600mV/6V/ 60V/600V/1000v | 0.01mV/0.1mV/0.001V/ 0.01V/0.1V/1V |
| AC Voltage | 60mV/600mV/6V/ 60V/600V/750v | 0.01mV/0.1mV/0.001V/ 0.01V/0.1V/1V |
| DC Current | 60A/600A/1000A | 0.01A/0.1A/1A |
| AC Current | 60A/600A/1000A | 0.01A/0.1A/1A |
| Resistance | 600Ω/6kΩ/60kΩ/ 600kΩ/6MΩ/60MΩ | 0.1Ω/0.001 kΩ/0.01 kΩ/0.1 kΩ 0.001 MΩ/0.01 MΩ |
| Capacitance | 10nF/100nF/1000nF/10μF/ 100μF/1000μF/10mF/100mF | 0.001nF/0.01nF/0.1nF/0.001μF/ 0.01μF/0.1μF/0.001mF/0.01mF |
| Frequency(A) | 100Hz/1000Hz | 0.01Hz/0.1Hz |
| Frequency(V) | 100Hz/1000Hz/10kHz | 0.01Hz/0.1Hz/0.001kHz |
| Frequency (Hz/Duty) | 10Hz/100Hz/1000Hz/10kHz 100kHz/1000kHz/10MHz | 0.001Hz/0.01Hz/0.1Hz/0.001kHz 0.01kHz/0.01kHz/0.1kHz/0.001MHz |
| Duty Cycle | 0.1%~99.9% | 0.1% |
- Power Supply : 1×9V 6F22 Battery
- Product Size : 238mm×92mm×50mm/9.37″×3.6″×1.9″
- Product Weight : 386g/0.85lb

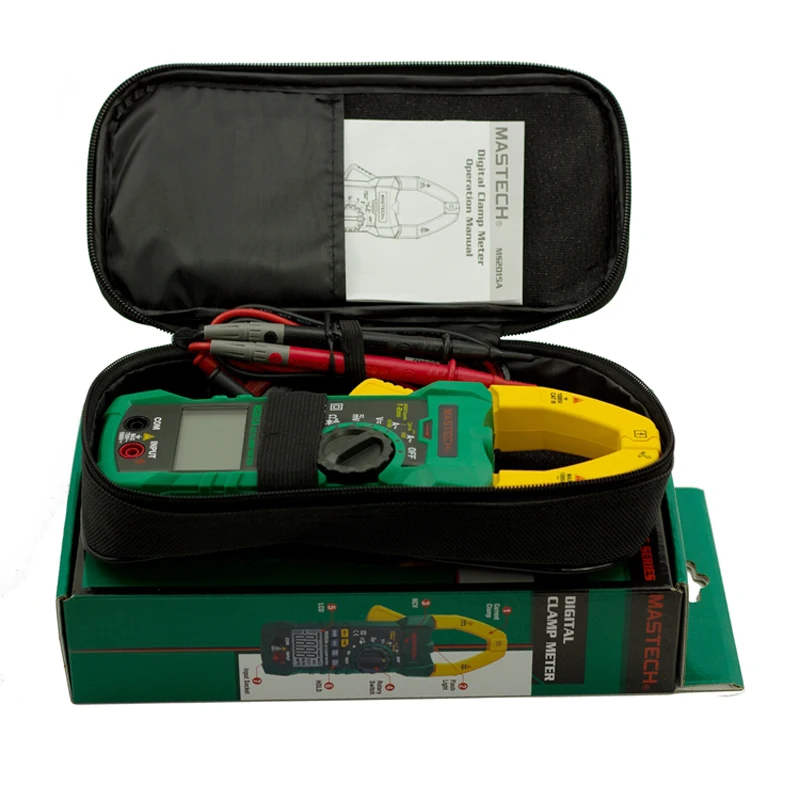

Accessories:
- Test Leads
- Carry Bag
- Battery
- User’s manual
Mastech MS2115A – Manual
