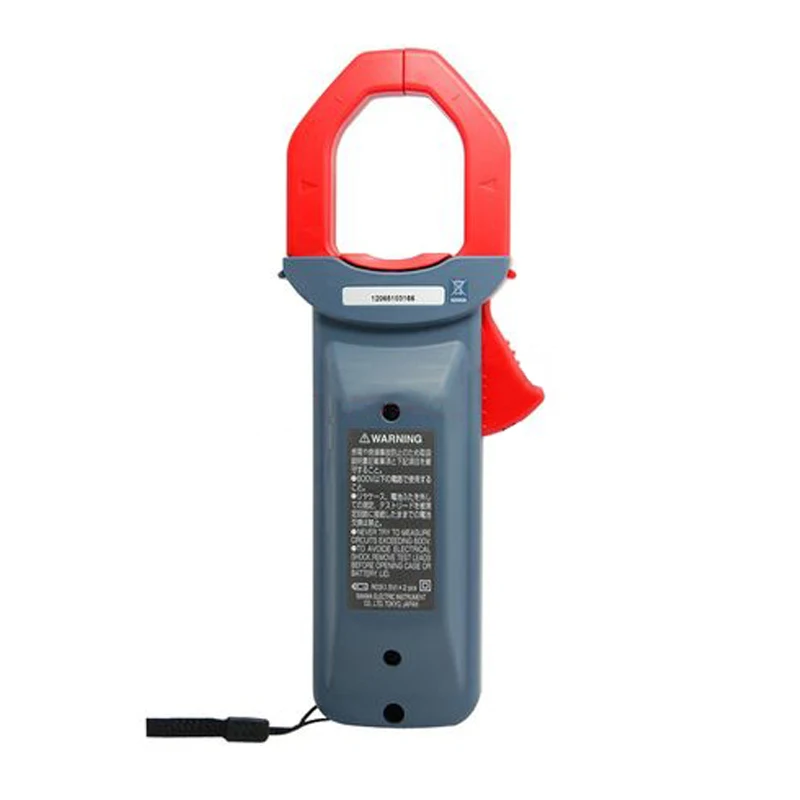

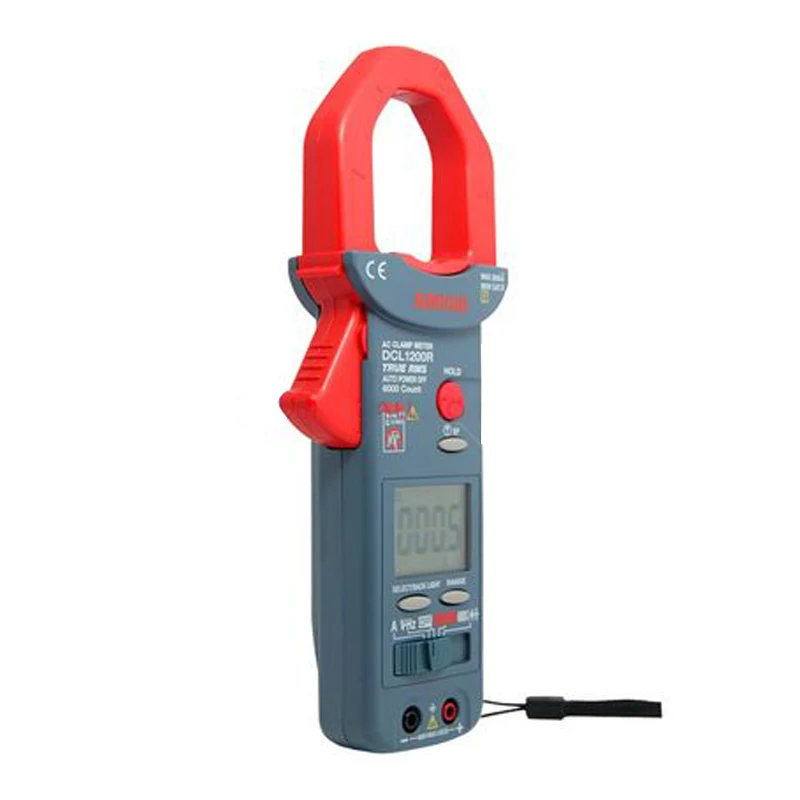

Sanwa DCL1200R Clamp Meter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
The DCL1200R is an AC clamp meter/digital multimeter of the RMS value response type, designed for measurements in the range specified by IEC61010-2-032 CAT.III 600V. It is suitable for current and voltage measurements of low-voltage circuitry, electric equipment and power supply facilities.
This clamp-meter can measure AC current of up to 1200 Amperes with an accuracy of 1.7%. It has a 6000-count display with a backlight. The device is also a digital multimeter that can measure AC/DC voltages, frequency of up to 30 kHz and capacitance, and it also has an Auto resistance feature that allows users to automatically measure resistances without the need for changing the range. The device can also perform Diode and Continuity tests (with a buzzer). It can also wirelessly detect voltages of 15 V and above at 50/60 Hz.
The DCL1200R is compliant with the IEC61010-2-032, CAT.III 600V, IEC61010-031 safety standards, and IEC61326-1 EMC directives. It comes with TL-23a test leads, and a (C-DCL1000) carry case.
Features Sanwa DCL1200R Clamp Meter
- Lightweight approx. 290g
- True RMS
- Large LCD with Backlight
- Easy to use large size data hold button
- AC voltage detection function (EF)
- Auto V / Ω detection
- MAX. 1200A measurable
- Display : numeral display 6000
- Sampling rate : 5 times / sec
- AC frequency bandwidth : 50 / 60Hz
Specifications Sanwa DCL1200R Clamp Meter
| Function | Measuring range | Best accuracy | Resolution |
|---|---|---|---|
| ACA | 400/1200A | ±(1.7%+5) | 0.1A |
| DCV | 6/60/600V | ±(0.7%+3) | 0.001V |
| ACV | 6/60/600V | ±(1.7%+5) | 0.001V |
| Auto resistance | 6k/60k/600k/6MΩ | ±(1.2%+4) | 1Ω |
| Resistance | 600Ω | ±(2.2%+8) | 0.1Ω |
| Frequency | 9.999/99.99/9.999k/30kHz | ±(0.6%+4) | 0.001Hz |
| Capacitance | 100n/1000n/10μ/100μ/2000μF | ±(3.7%+5) | 0.1nF |
| Continuity | Buzzer sounds at between 0Ω and 155Ω (±145Ω) Open voltage: approx. 0.4V | ||
| Diode test | Open voltage: approx. 1.6V | ||
| Voltage detection | Buzzer sounds and “-” is shown on LCD. Input sensitivity: approx. 20V or over (50/60Hz) | ||
| Sampling rate | 5 times/sec. |
| Bandwidth | ACA 50/60Hz ACV 50-500Hz |
| Display | 6000 |
| Clamp diameter/Conductor size | Φ42mm/20×54mm |
| Battery | R03×2 |
| Battery life | Approx. 90 hrs. at DCV (Alkaline battery/Backlight off) |
| Size/Mass | H238×W95×D45mm/Approx. 290g |
| Safety standards | IEC61010 CAT.Ⅲ 600V |
Standard Accessories:
- Test lead: TL-23a
- Carrying case: C-DCL1000
Optional Accessories:
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
- Test lead : TL-21M, TLF-120
Sanwa DCL1200R – Datasheet
