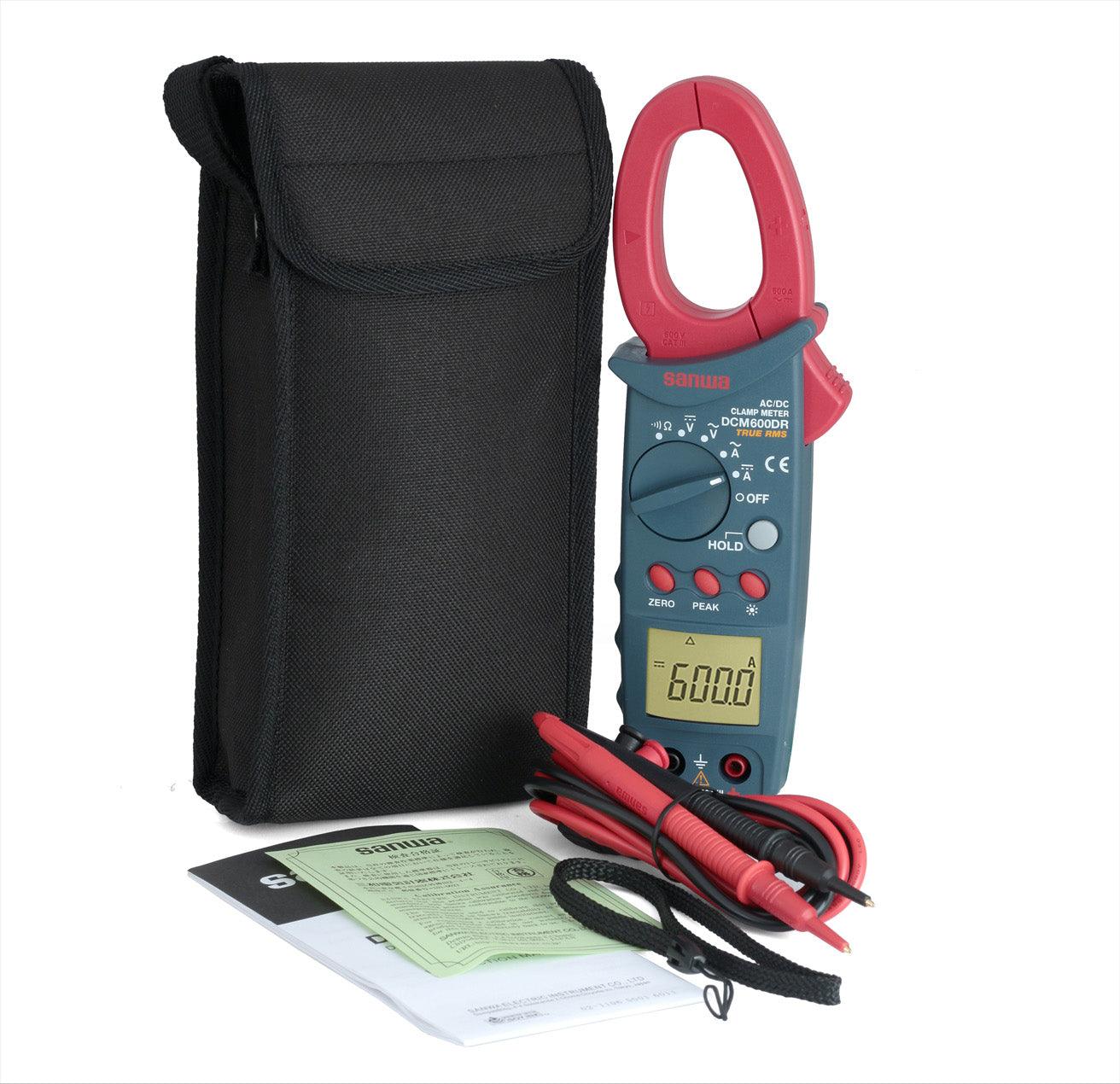

Sanwa DCM600DR Clamp Meter
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
This DCM600DR can measure a maximum of 600 Amperes of AC/DC current. It can measure AC/DC current up to 600 Volts, the resistance of 999.9Ω, and perform continuity tests with a buzzer alarm. This device is suitable for current and voltage measurements of low-voltage circuitry, electric equipment, and power supply facilities.
The device offers various functions such as data hold, peak hold, zero, etc. It features a 6000-count display with a back-light feature. The device also has an auto-power save feature that turns the screen off after 30 minutes of no use.
Features Sanwa DCM600DR Clamp Meter
- AC / DC current measurable max. 600A
- True RMS
- Peak hold
When the peak button is pressed, the measuring range will be fixed to the 600A range - Relative value measurement
- Data hold, Auto power save
- LCD with back light
Sampling rate : 3 times / sec. for numeral display
Specifications Sanwa DCM600DR Clamp Meter
| Function | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCA | 60/600A | ±(2%+5) | 0.01A | |
| ACA | 60/600A | ±(2%+5) | 0.01A | |
| DCV | 600V | ±(1%+2) | 0.1V | 1MΩ |
| ACV | 600V | ±(1.2%+5) | 0.1V | |
| Resistance | 999.9Ω | ±(1%+7) | 0.1Ω | |
| Continuity | Buzzer sounds at less than 40Ω Open voltage: approx. 2.9V | |||
| Sampling rate | 3 times/sec. |
| Bandwidth | 50-500Hz |
| Display | 6000 |
| Clamp diameter/Conductor size | Φ30mm/10×50mm |
| Battery | LR03×2 |
| Battery life | Approx. 40 hrs. (Backlight off) |
| Size/Mass | H208×W69×D38mm/Approx. 260g |
| Safety standards | IEC61010 CAT.Ⅲ600V |
In the peak hold mode, the measuring range is fixed at 600A.
Standard Accessories:
- Test lead: TL-23a
- Carrying case: C-DCM660
Optional Accessories:
- Clip adapter : CL-13a, CL-14,CL-15a, CL-DG3a, TL-9IC
- Test lead : TL-21M, TLF-120
