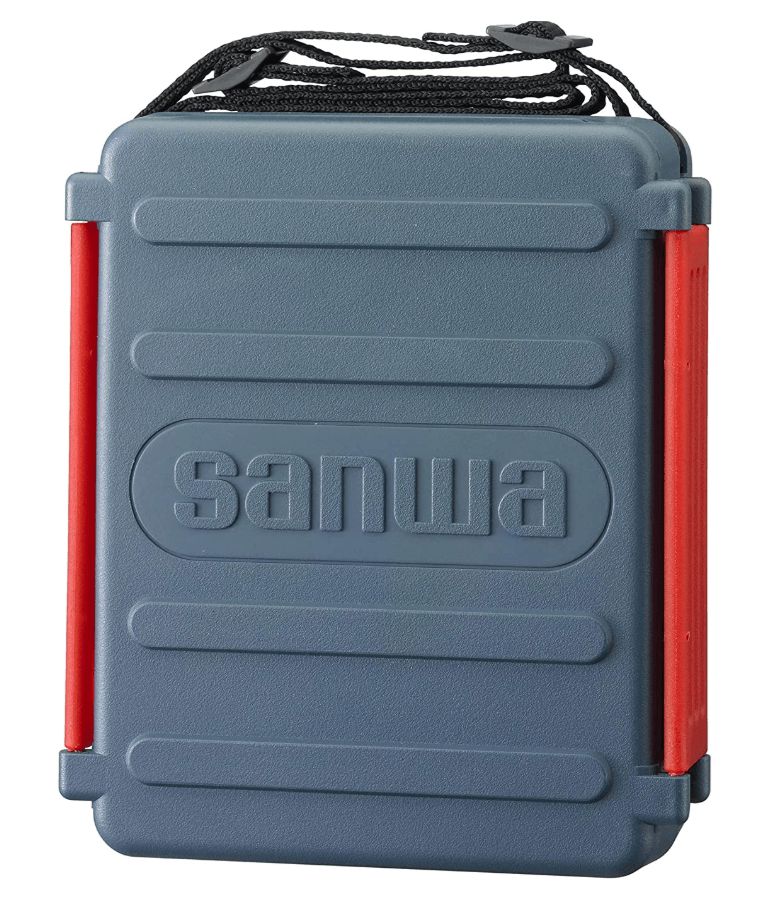

Sanwa MG1000 Insulation Tester
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa MG1000 Insulation Tester
- Hot-line state (30V minimum) detection
- Large volt mark with the buzzer sound
- Automatic data hold function
- Bargraph just like analog meter
- Large display with backlight
- Easy to use & tough body
- Display : numeral display 4000
- Sampling rate : 2 times / sec.
Specifications Sanwa MG1000 Insulation Tester
| Function | Measuring Range | Accuracy | Resolution |
|---|---|---|---|
| MΩ | 4M/40M/400M/4000MΩ | ±(3%+4) | 0.001MΩ |
| Rated voltage | 250/500/1000V | ||
| ACV/DCV | 600V(AC/DC Automatic detection) | ±(3%+2) | 1V |
| Ω（Continuity) | 4000Ω(Buzzer and ALARM indicator) | ±(3%+3) | 1Ω |
| Ω | 40Ω | ±(3%+10) | 0.01Ω |
| Rated current | 1.0～1.2mA |
| Short-circuit current | 2mA or less |
| Live circuit detection | At 30V AC/DC or more, inhibits test, buzzer sounds and ALARM indicator lights up |
| Battery | LR6(AA alkaline battery)1.5V×6 |
| Size/Mass | H170×W142×D57mm/Approx. 600g |
| Safety standard | IEC61010 CAT.Ⅲ 600V |
Standard Accessories:
- Test lead: TL-112a
- Strap (for MG series): ST-50
Optional Accessories:
- Clip adapter : CL-16
