Product Description

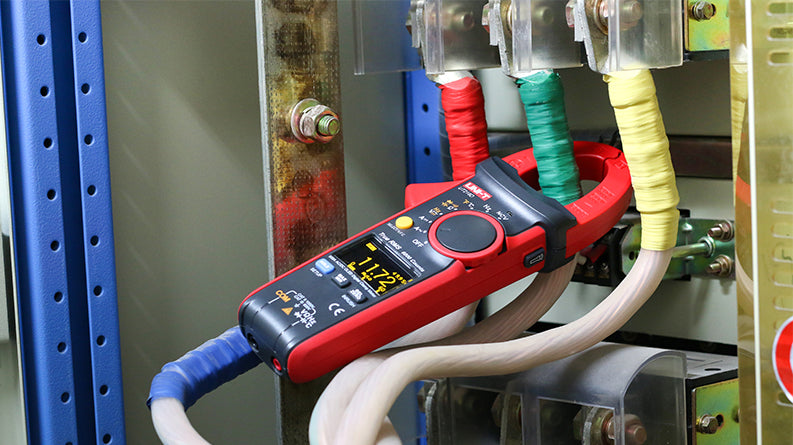

UNI-T UT216B 600A True RMS Digital Clamp Meter
Karya Mandiri Techindo has a wide range of UNI-T products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
Features UNI-T UT216B 600A True RMS Digital Clamp Meter
- True RMS
- Auto range, 3 times/s sampling rate
- MAX/MIN/Relative modes
- Flashlight
- 400Hz measurement
- NCV, non-contact AC voltage testing
- VFC, low pass filter
Specifications UNI-T UT216B 600A True RMS Digital Clamp Meter
Specifications |
Range |
UT216B |
AC current (A) | 600A | ±(2.5%+5) |
AC current frequency response | 40~400Hz | |
AC voltage (V) | 750V | ±(1.2%+5) |
AC voltage frequency response | 40~400Hz | |
DC voltage (V) | 1000V | ±(0.8%+1) |
Resistance (Ω) | 60MΩ | ±(1%+2) |
Capacitance (F) | 60mF | ±(4%+5) |
Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) |
Features |
||
Display count | 6000 | |
Auto range | √ | |
Jaw opening | 30mm | |
True RMS | √ | |
Diode | Around 3.0V | √ |
V.F.C. | √ | |
NCV | √ | |
Data hold | √ | |
Relative mode | √ | |
MAX/MIN | √ | |
LCD backlight | √ | |
Flashlight | √ | |
Auto power off | √ | |
Continuity buzzer | √ | |
Low battery indication | ≤3.6V | √ |
Input protection | √ | |
Input impedance for DCV | ≥10MΩ | √ |
General Characteristics |
||
Power | 1.5V battery (R03) x 3 | |
Display | 38mm x 24mm | |
Product color | Red and grey | |
Product net weight | 231.7g | |
Product size | 220mm x 75mm x 40mm | |
Standard accessories | Batteries, test leads |
UNI-T UT216B – Manual
