Description
UNI-T UT219E Professional Clamp Meter
Karya Mandiri Techindo has a wide range of UNI-T products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

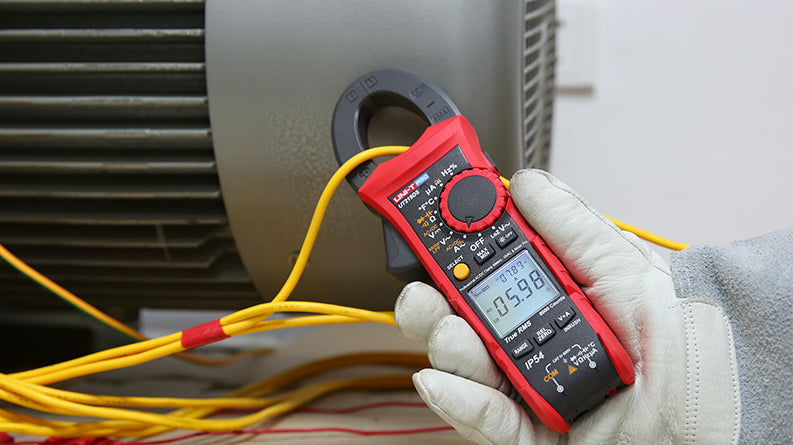

UT219 series is 600A true RMS professional clamp meter with CAT IV 600V rating. It is industrially designed with IP54 rating and able to withstand 2 meters drop test for measurement in harsh environments. This series is suitable for professional electricians, HVAC/R and motor service technicians.
Features UNI-T UT219E Professional Clamp Meter
- LoZ input for ghost voltage measurement
- Flashlight and auto backlight
Specifications UNI-T UT219E Professional Clamp Meter
| Specifications | Range | UT219E |
| AC current (A) | 600A | ±(1.8%+6) |
| AC voltage (V) | 600V | ±(1%+6) |
| DC voltage (V) | 600V | ±(0.6%+3) |
| LoZ ACV | 600V | ±(2.5%+6) |
| Resistance (Ω) | 60MΩ | ±(1%+3) |
| Capacitance (F) | 60mF | ±(4%+7) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+6) |
| Duty cycle | 0.1%~99.9% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Auto/Manual range | √ | |
| Jaw opening | 33mm | |
| True RMS | √ | |
| AC current frequency response | 40Hz~400Hz | |
| AC voltage frequency response | 40Hz~400Hz | |
| Diode test | 3V | |
| Measurement sampling rate | 3 times/s | |
| Analog bar sampling rate | 10 times/s | |
| Analog bar | 31 segment | |
| Display interface (LCD) | Single | |
| Auto power off/MAX/MIN | √ | |
| Low battery indication | √ | |
| Data hold (H)/Relative mode (REL) | √ | |
| ZERO mode | √ | |
| Function selection (SELECT) | √ | |
| Auto backlight/2m drop test | √ | |
| IP rating | IP54 | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 35mm x 31mm | |
| Product color | Red and grey | |
| Product net weight | 310g | |
| Product size | 234.6mm x 82mm x 47mm | |
| Standard accessories | Test leads, batteries, carrying bag, PC software CD | |
UNI-T UT219E – Datasheet
