Product Description

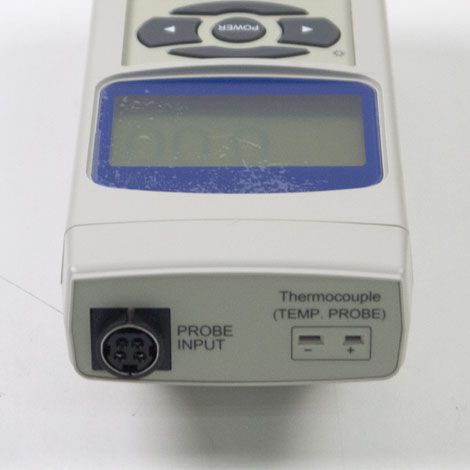

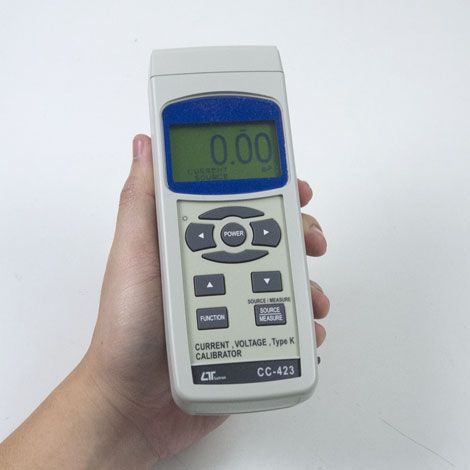

Lutron CC-423 Current, Voltage, Type K Calibrator
CV. Karya Mandiri Techindo has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Lutron CC-423 Current, Voltage, Type K Calibrator
- Multi-Source output :
º Current source,
º Voltage source,
º Type K Temp. source. - Three kinds measurement function :
º Current measurement,
º Power and current measurement,
º Type K Temp. measurement. - Portable instrument for calibrating process devices.
- Adjustable 0-24 mA current source.
- Current calibrator drives loads up to 500 ohms.
- Four function provide the quality and accuracy of handheld calibrator of precision current source.
Specifications Lutron CC-423 Current, Voltage, Type K Calibrator
- Circuit: Custom one-chip of microprocessor LSI circuit.
- Display:
º LCD size : 52 mm x 30 mm.
º LCD size : 52 mm x 30 mm. - Measurement:
º Current :Max. 24 mA.
º Type k Temp : – 199.9 to 1370.0 ℃. - Source:
º Current : 0 to 24.00mA .
º Voltage (DC mV : – 200.0 to + 200.0 mV).
º Type k Temp : – 199.9 to 1370.0 ℃. - Sampling Time of Display: Approx. 1 second.
- Advanced setting:
º Auto power OFF management.
º Set unit ℃ or ℉ . - Operating Temperature and Humidity:
º 0 to 50 ℃.
º Less than 85% R.H. - Power Supply:
º Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
º DC 9V adapter input. ( AC/DC power adapter is optional ). - Power Current:
º Normal operation ( w/o current source ) : Approx. DC 18 mA. (LCD Backlight is ON) : Approx. + DC 5 mA.
º Current source (under 10 mA signal out put) : Approx. DC 33 mA. (Backlight is ON) : Approx. + DC 5 mA. - Weight: Meter : 306 g/ 0.67 LB. (with cable)
- Dimension: Meter : 178 x 68 x 45 mm
Accessories Included:
- Instruction manual………………………………………. 1 PC
- Hard carrying case( CA-06 )……………………………1 PC
- V, A cable LN-TL421…………………………………1 PC
- Type K source cable AC-DUK02………………….1 PC
Optional Accessories:
- AC to DC 9V adapter.
- TP-01,TP-02A, TP-03, TP-04, TP-05
Lutron CC-423 – Datasheet
