Description

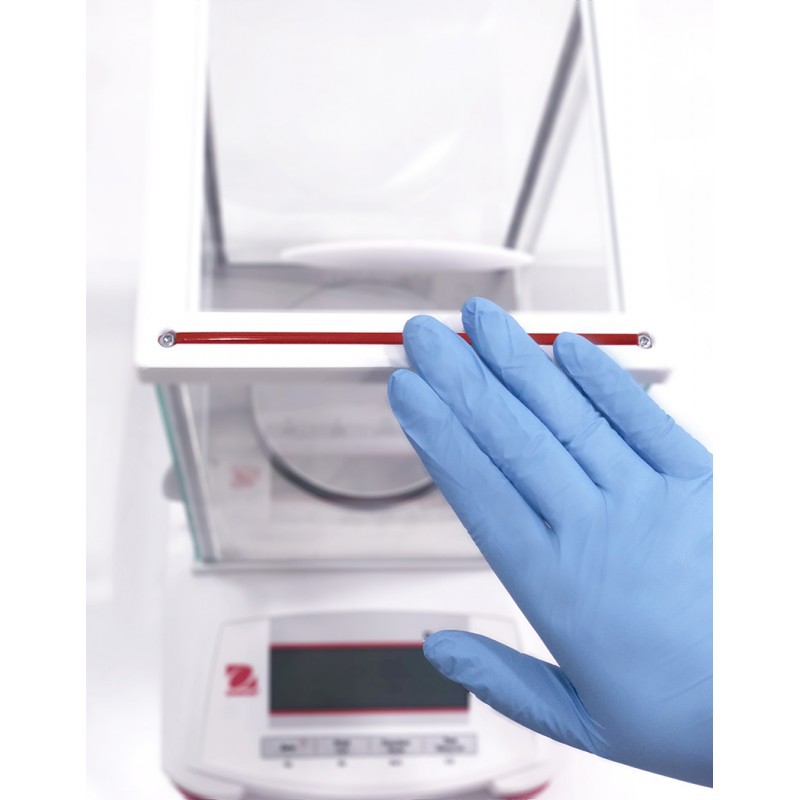

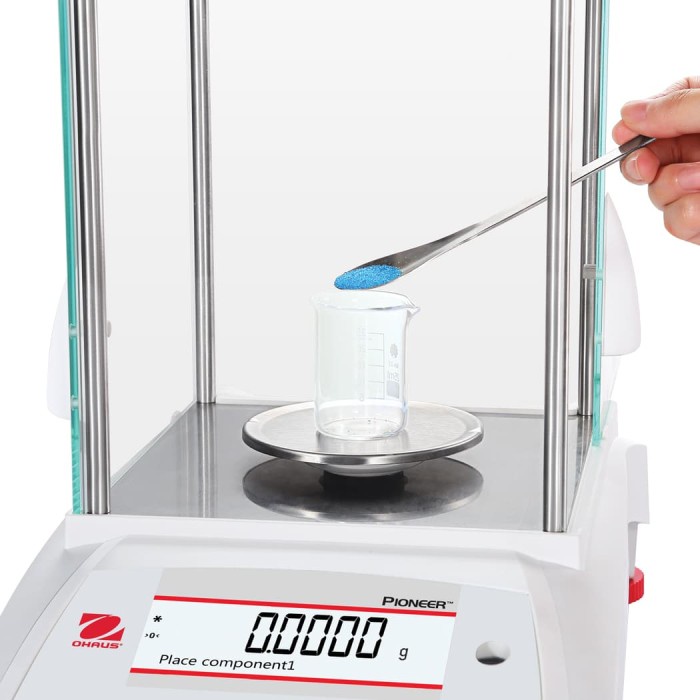

OHAUS PX224/E Analytical Balance

Karya Mandiri Techindo has a wide range of OHAUS products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and – RS232 connectivity for easy communication.

Applications – Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination, Formulation

Display – Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)

Operation – AC adapter (included)

Communication – RS232 and USB device (included); GLP/GMP data output with real-time clock

Construction – Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features – User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages

Specifications OHAUS PX224/E Analytical Balance

Maximum Capacity	220 g
Readability	0.1 mg
Pan Size	90 mm
Internal Calibration	Not Applicable
Draftshield	Included
Auxiliary Display Model	Available as an Accessory
Battery Life	Not Applicable
Communication	USB; RS232
Dimensions	321 mm x 309 mm x 209 mm (LxHxW)
Display	2-Line LCD with Backlight
In-Use Cover	Included
Legal for Trade	No
Linearity ±	0.0002 g
Minimum Weight (USP, 0.1%, typical)	200 mg
Net Weight	10 lb (4.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.0001 g
Stabilization Time	3 s
Tare Range	To capacity by subtraction
Units of Measurement	Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat
Working Environment	operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C; 10°C – 30°C, 80%RH, non-condensing)

OHAUS PX224/E – Datasheet
