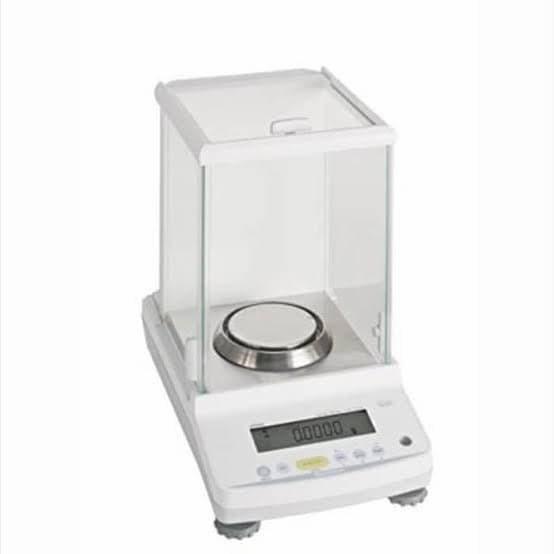

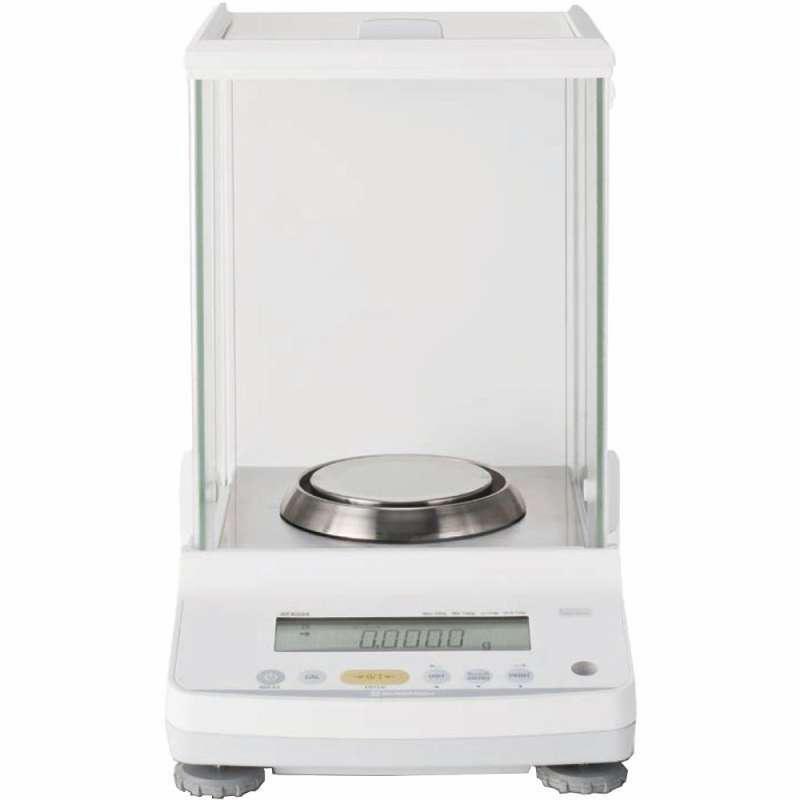

SHIMADZU ATX224 Analytical Balance

Karya Mandiri Techindo has a wide range of SHIMADZU products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

ATX series realized superior performance and budget price with Shimadzu weighing sensor UniBloc.
This model achieve usability and high accuracy as analytical balance.
Best-Fit Weighing Function, Whether requiring quick measurement or stable measurement when environmental factors such as vibration or airflow exist, the best-fit weighing function enables adjustment between responsiveness and stability.
Touch-Key Calibration

ATX models include an automated calibration started easily by pressing keys on the operation panel.
Automated Calibration Function
Comparator Function and Large Size Pan

Features SHIMADZU ATX224 Analytical Balance

Motorized calibration

Motor-driven internal weight calibration, ready at the touch of a button (ATX series)Alternatively, external weights can be calibrated (ATX/ATY series)

Easy to set up

During the measurement process, the responsiveness and stability of the balance can be quickly adjusted at the touch of a button.

Count measurement function

Calibration records can have a time, date, and comply with GRP/GMP/ISO requirements.

Qualification judgment function

The upper and lower limits are pre-set, and the qualified, excessive, and insufficient are displayed according to the weight of the sample.

Formulaic assays

Product structure diagram

Specifications SHIMADZU ATX224 Analytical Balance 220g/0.1mg

Series selection

Model	ATX224	ATX124
Weighing capacity	220 g	120 g
Minimal display	0.1 mg	0.1 mg
Sensitivity correction is used to calibrate the weight range externally	95～220 g	45～120 g
Reproducibility (Standard Offset)	≦0.1 mg
Linear	±0.2 mg
Response time	About 3 seconds
Operating temperature range	5 ～ 40℃ 20 ～ 85％
Temperature coefficient of sensitivity (10~30°C)	±2 ppm/℃
Pallet size (mm)	About φ 91
Dimensions of the main unit (mm)	Approx. 210 (W) × 340 (D) × 325 (H)
The weight of the main unit	ATX: Approx. 6.2 kg ATY: Approx. 6.0 kg
display	liquid crystal
power supply	AC adapter (input AC 100 V 50/60 Hz, output 12 V 1 A)
Inlet and output terminals	DATA I/O

LIST	VALUE
weighing range	220g
Readability	0.1mg
Adjustment	Electric calibrated, external weight calibrated
Linearity	±0.2mg
repeatability error	≦0.1mg
Stabilization time	3 s
Pan Size	Φ91mm
Power supply voltage	AC adapter (input AC 100 V 50/60 Hz, output 12 V 1 A)
Dimension	About 210 (W) * 340 (D) * 325 (H)
monitor	liquid crystal
gross weight	About 7kg
Operating temperature	5 ~ 40℃
relative humidity	20~85％RH
Sensitivity temperature coefficient	±2 ppm/℃
input and output terminals	DATA I/O

SHIMADZU ATX224 – Datasheet
