Sanwa LCR700 LCR Meter

Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

This instrument features a device value sorting function, allowing users to quickly sort passive devices in situations such as incoming inspections.

Features Sanwa LCR700 LCR Meter :

Measuring Frequency DC~100kHz
Ls/Lp/Cs/Cp measurement with sub parameters (D/Q/θ/ESR)
Automatically selectable L/C/R measurement

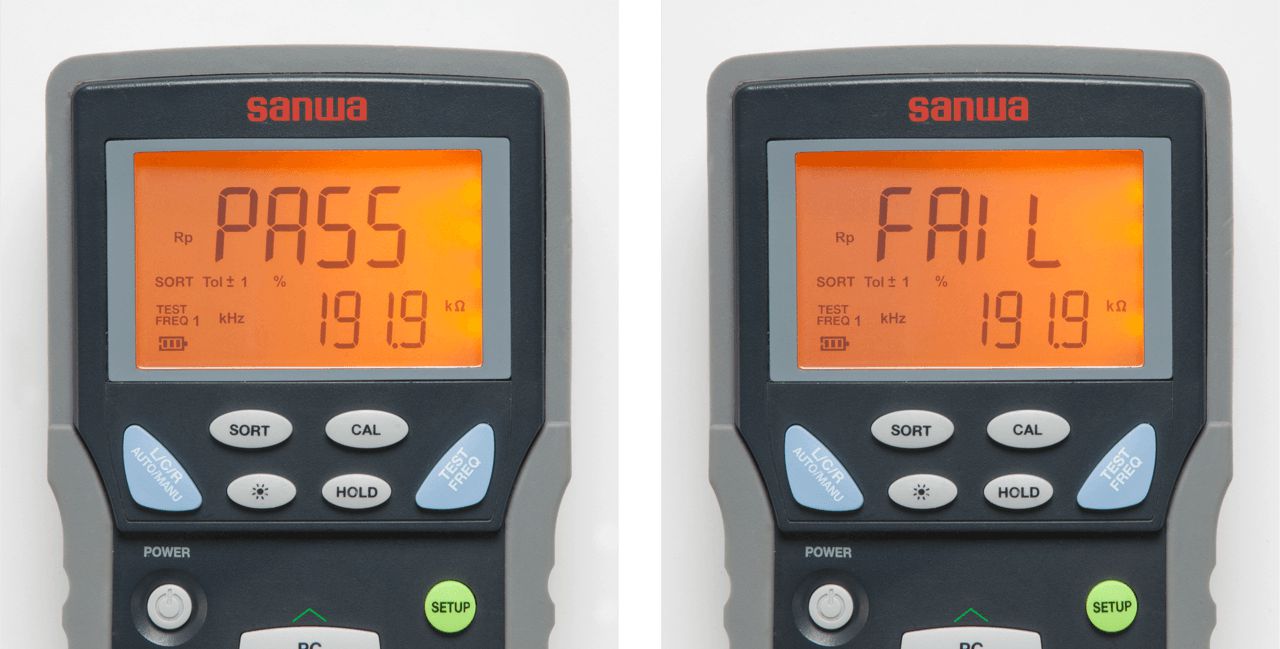

Device Sorting mode
Optical link USB interface(optional) : LCR-USB
Data hold, Back light

Specifications Sanwa LCR700 LCR Meter :

Functions	Ranges	Best Accuracy
Ls/Lp	20.000u/200.00u/2000.0u/20.000m/200.00m/2000.0m 20.000/200.00/2000.0/20.000kH	±(0.3%+3)
Cs/Cp	200.00p/2000.0p/20.00n/200.00n/2000.0n/ 20.000u/200.00u/2000.0u/20.00mF(50pF or less: out of accuracy)	±(0.3%+3)
Rs/Rp	20.000/200.00/2.0000k/20.000k/ 200.00k/2.0000M/20.000M/200.0MΩ	±(0.3%+3)
Ω（DCR)	200.00/2.0000k/20.000k/200.00k/ 2.0000M/20.000M/200.0MΩ	±(0.3%+3)

Sampling rate	1.2 times / second (LCR mode) 0.5 times /second (DCR mode)
Measureemnt frequencies	100/120/1k/10k/100kHz
Power supply	6LF22/6LR61 alkaline 9V
Battery life	Approx. 35 hours (auto LCR mode, 1 kHz)
Size / Mass	H184×W87×D45 mm / Approx. 400g

Optional Accessories:

LCR USB cable：LCR-USB
SMD clip lead ：CL-700SMD
AC adapter：AD-30-2
