Description

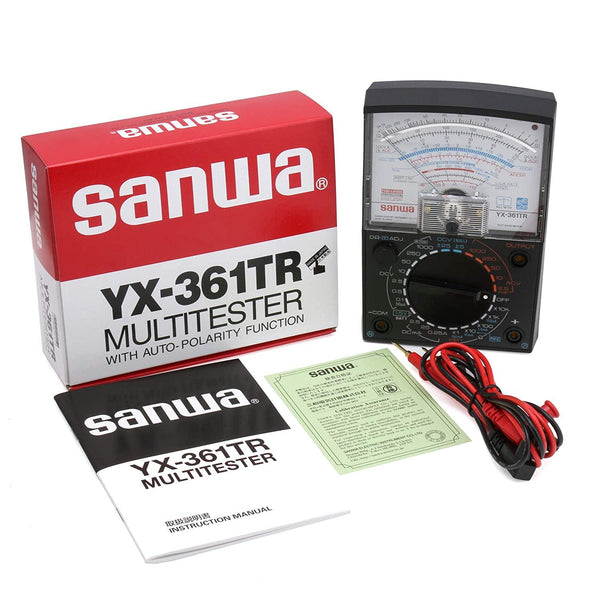

Sanwa YX-361TR Analog Multitester
Karya Mandiri Techindo has a wide range of Sanwa products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..
Features Sanwa YX-361TR Analog Multitester
- Total 35 wide ranges (24ch sw + additional fuctions)
- ±DCV zero center meter
- LED for continuity check
- OUTPUT terminal (series capacitor terminal)
- Battery check
Specifications Sanwa YX-361TR Analog Multitester
| Function | Measuring range | Tolerance |
|---|---|---|
| DCV | 0.1/0.5/2.5/10/50/250/1000V（20KΩ/V) | ±2.5% of full scale |
| ±DCV | ±5/25V（40kΩ/V) | ±5% of full scale |
| ACV | 2.5/10/50/250/1000V（9kΩ/V) | ±3% of full scale (2.5/10V:±4% of full scale) |
| DCA | 50μ/2.5m/25m/0.25A | ±2.5% of full scale |
| Resistance | 2k/20k/200k/2M/20MΩ | ±3% of arc |
| Low-frequency output | -10～+62dB | ±3% of full scale (2.5/10V:±4% of full scale) |
| hFE | hFE： 0～1000 | ±3% of arc |
| Continuity | ≦ approx.10Ω: LED lights. Open circuit voltage: approx. 3V | |
| Battery check | 1.5V | |
| Bandwidth | 40Hz～20kHz(Less than AC50V : ±3% of full scale) |
| Battery | R6P(AA battery)1.5Vx2, 6F22(9V manganese battery)x1 |
| Fuse | F0301 Φ5x20mm 0.5A/250V 300A Glass fuse |
| Size/Mass | H150×W100×D37mm/Approx. 290g |
※The value in （ ）at DCV and ACV is input resistance
Standard Accessories:
- Test lead: TL-61
Optional Accessories:
- HV probe : HV-10
- Carrying case : C-YS
- Clip adapter : CL-14, CL-15a, CL-DG3a, TL-9IC
- hFE probe : HFE-6T
- Test lead : TL-91M
Sanwa YX-361TR – Datasheet
